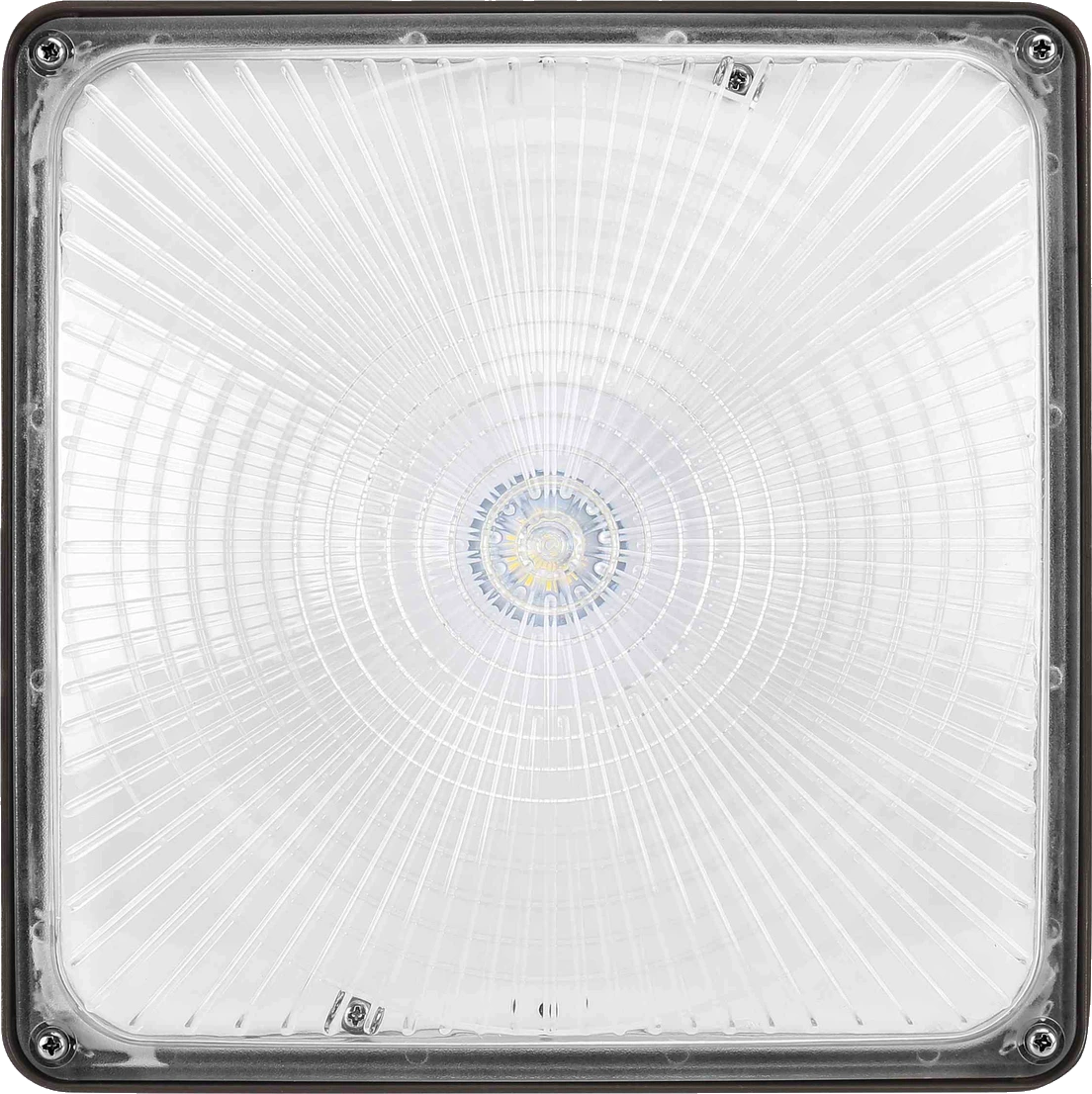

FIELD-SET
4-WATTselect 100 / 80 / 60 / 40 % · 3-CCTselect 3000 / 4000 / 5000K · Prismatic anti-UV lens · conduitⒶREADY · Quick-mount plate
ARCHIPELAGO
Lighting Group
Electrical & Optical
| Input voltage | 120–277V |
| Dimming | 0–10V |
| Power factor / THD | PF >0.90 · THD <20 % |
| CRI | 70 |
| Distribution | Anti-UV prismatic translucent lens |
| CCT and WATTselect | Set by switch on site · not encoded in the catalog number |
Construction & Environment
| Housing | One-piece die-cast aluminum · powder coat · Dark Bronze, or White on the 060 |
| Operating ambient | −40 °F to 104 °F · 50–104 °F with the EM battery |
| Location | cULus Listed · wet location |
| Mounting | J-box quick-mount plate · 3/4″ pendant · 1/2″ knockouts on three sides |
| Warranty | 7-year / 75,000-hour limited |
cULusWet LocationFCCRoHS
ARCHIPELAGO
Lighting Group
Bill of materials — this build
| # | Item | Selection | Catalog number | On the order |
|---|
Housing, finish and the built-in sensor are the catalog number. Output and color are set on site and are not in it. The remote, photocell and EM driver are their own order lines.
Every fixture catalog number
Accessories — ordered separately
ARCHIPELAGO
Lighting Group
04 · Photometrics & Dimensions
Beam angle (50 % of peak)
—
Dimensions
No DLC listing is claimed for this family. Rebate Center shows what your utility pays and the forms it needs, by ZIP.
Full IES library:
