FIELD-SET
3-WATTselect set before install · 3-CCTselect 3500 / 4000 / 5000K · Center sensor port bi-level, ⒶCS, SILVAIR · constⒶNT /EM08 · /EM20 on the 100 W · DLC listed
ARCHIPELAGO
Lighting Group
Electrical & Optical
| Input voltage | 120–277V |
| Dimming | 0–10V |
| Power factor / THD | PF >0.90 · THD <20 % |
| CRI | >80 |
| Distribution | Wide · reflector + refractor, optical transmission >90 % |
| CCT and WATTselect | Set by dip switch under the M25 cap · not encoded in the catalog number |
Construction & Environment

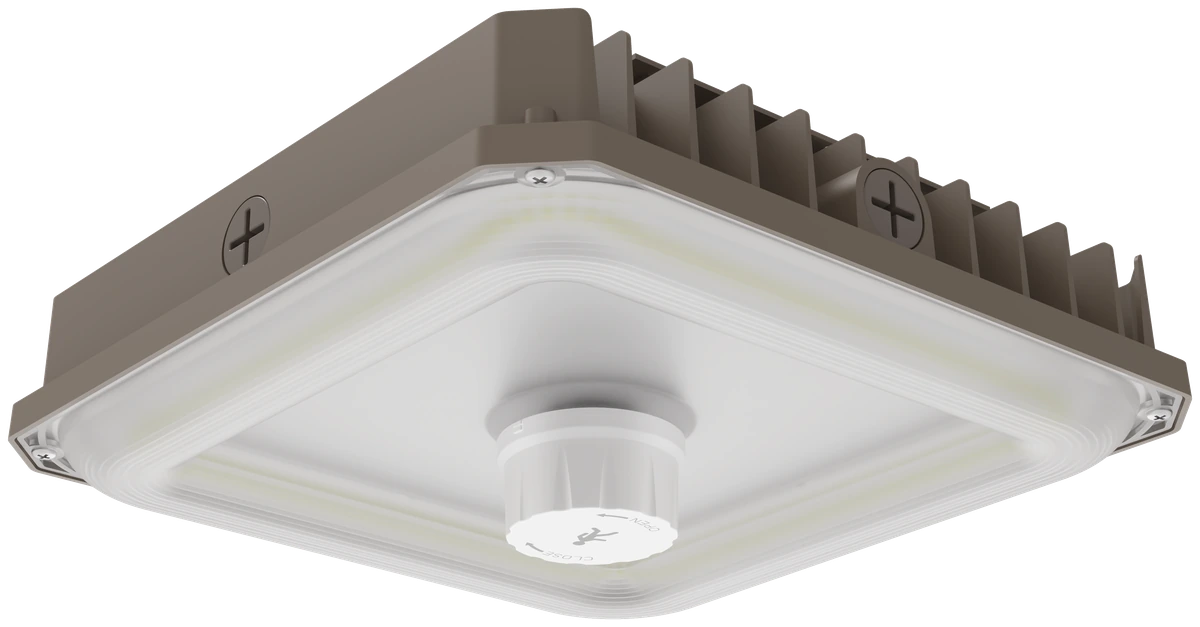

| Housing | One-piece die-cast aluminum · polyester powder coat · Dark Bronze · channel-groove fins |
| Lens | UV-stabilized polycarbonate |
| Operating ambient | −40 °F to 104 °F |
| Location | cULus Listed · wet location |
| Mounting | Surface on the quick-mount plate, or pendant from rigid conduit |
| Warranty | 5-year / 50,000-hour limited |
DLC ListedcULusWet LocationFCCRoHS
ARCHIPELAGO
Lighting Group
Bill of materials — this build
| # | Item | Selection | Catalog number | On the order |
|---|
Housing, voltage, finish and the emergency driver are the catalog number. Watts and color are set before install and are not in it. Each sensor and the remote are their own order lines.
Every fixture catalog number
Accessories — ordered separately
ARCHIPELAGO
Lighting Group
04 · Photometrics & Dimensions
Beam angle (50 % of peak)
—
Dimensions
DLC QPL: LCNP3W40-3N1-UD S-89V8GQ · LCNP3W100-3N1-UD S-WGTYHX · LCNP3W100-3N1-UD/EM20 S-QJW5JR. /EM08 claims none. Confirm the listing for your catalog number at designlights.org/QPL before specifying.
Full IES library:
