ARCHIPELAGO
Lighting Group
FIELD-SET
3-WATTselect set before install · 3-CCTselect 3000 / 4000 / 5000K · Clear glass lens · Photocell with ON/OFF switch, every number · 130 lm/W · IP65
ARCHIPELAGO
Lighting Group
Electrical & Optical
| Input voltage | 120–277V, 50/60 Hz |
| Dimming | 0–10V |
| Power factor / THD | PF >0.9 · THD ≤20 % |
| Surge protection | 6 kV, on board |
| CRI | 80 |
| Controls | Photocell with ON/OFF switch, built in (/PS) |
| CCT and WATTselect | Set by switch on the fixture · not encoded in the catalog number |
Construction & Environment

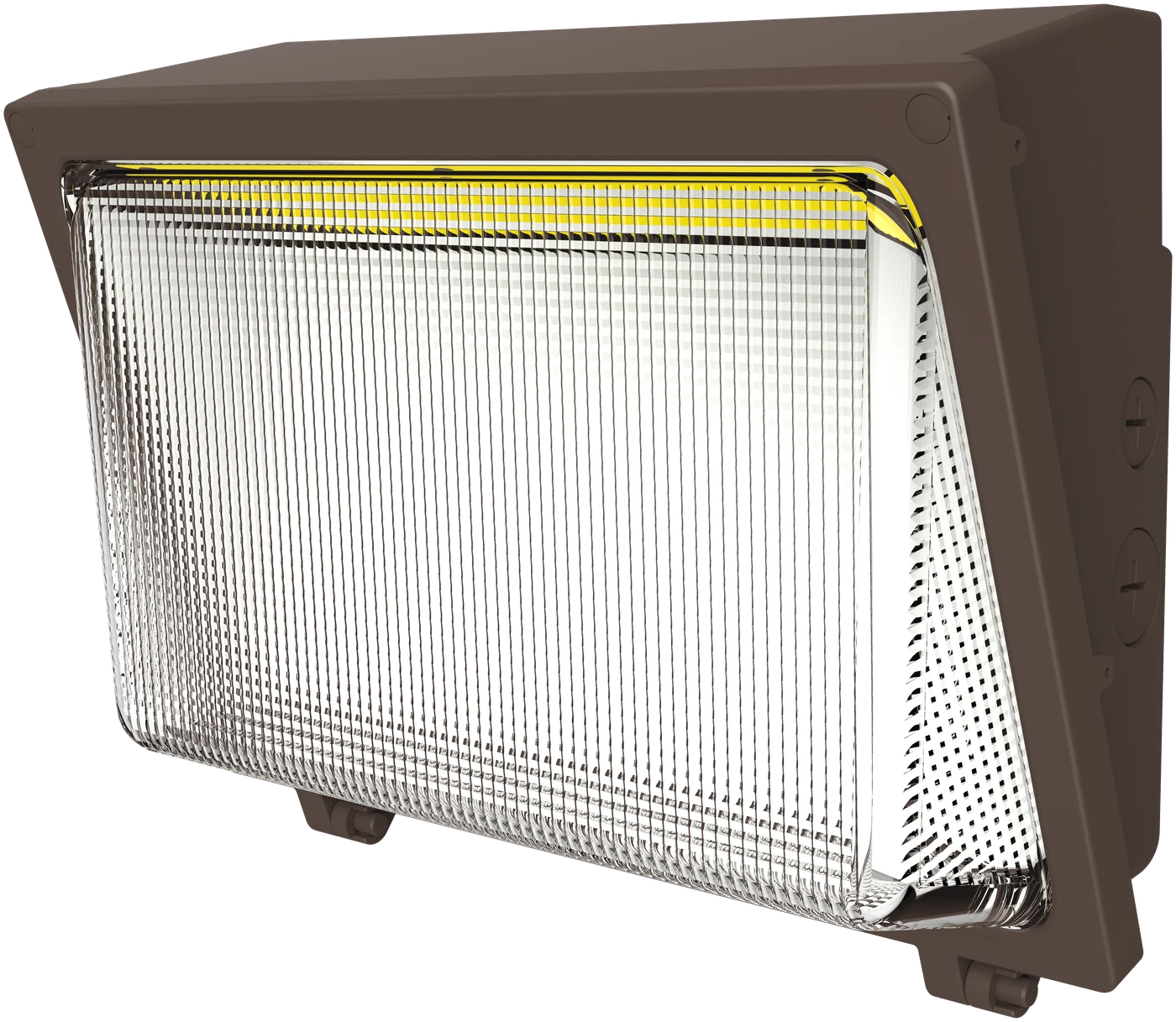

| Housing | Two-piece die-cast aluminum · side-hinged door · thermally isolated driver chamber · Dark Bronze or Black |
| Lens | Clear UV-resistant glass over a reflector and refractor |
| Operating ambient | −40 °F to 113 °F |
| Location | cULus Listed · wet location · IP65 |
| Mounting | Wall surface over a standard J-box · conduit entry from below |
| Warranty | 5-year / 50,000-hour limited |
cULusWet LocationIP65FCC
ARCHIPELAGO
Lighting Group
Bill of materials — this build
| # | Item | Selection | Catalog number | On the order |
|---|
Housing and finish are the catalog number; the photocell is in every number. Watts and color are set on the fixture and are not in it. The dark sky shield and wire guard are their own order lines.
Every fixture catalog number
Accessories — ordered separately
ARCHIPELAGO
Lighting Group
04 · Photometrics & Dimensions
Beam angle (50 % of peak)
—
Dimensions
No DLC listing is claimed for this family. Rebate Center shows what your utility pays and the forms it needs, by ZIP.
Full IES library:
