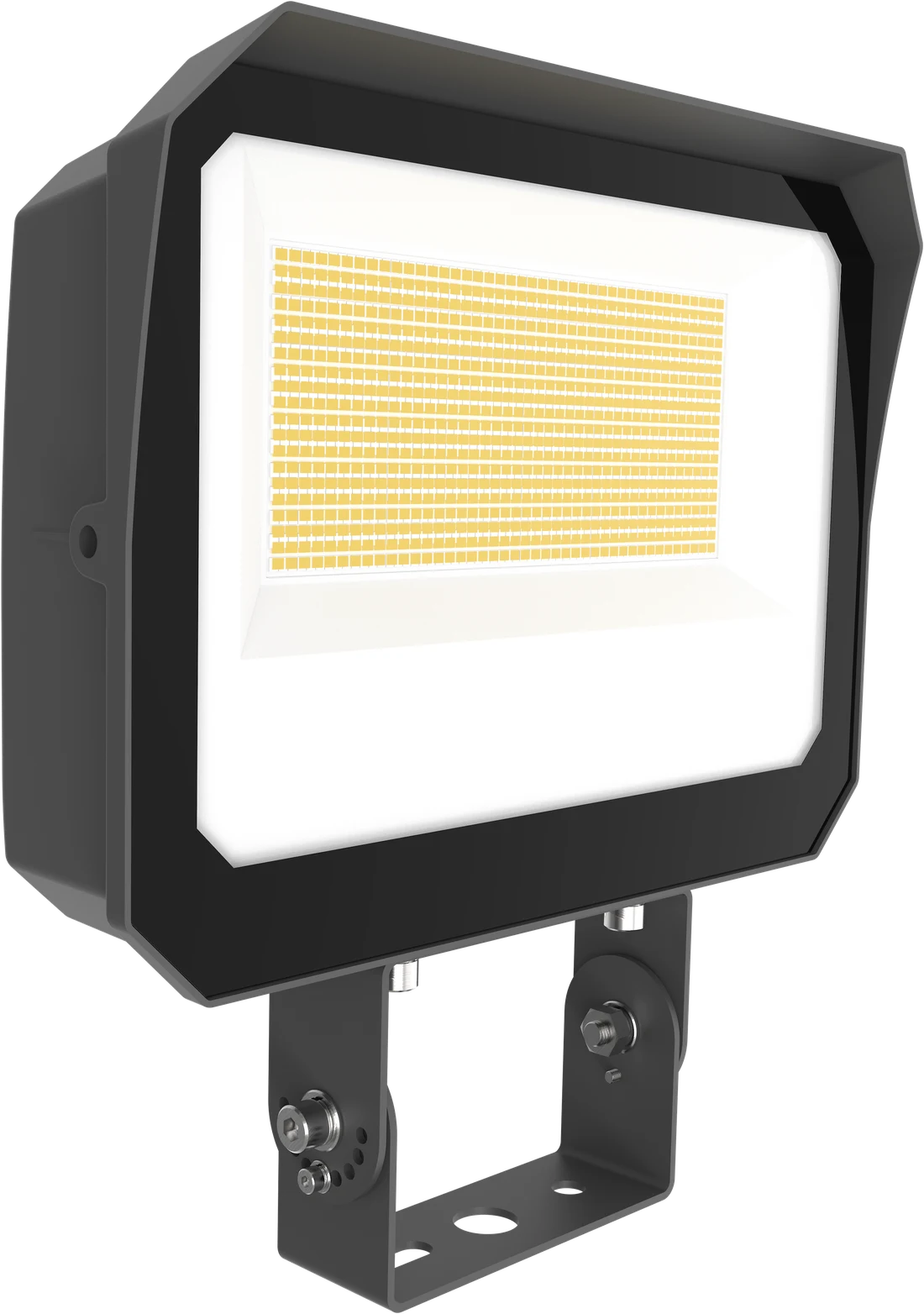

FIELD-SET
3-WATTselect set before install · 3-CCTselect 3000 / 4000 / 5000K · Photocell with ON/OFF switch, every number · Mount in the number · Glass lens NEMA 7H×6V · surgeⒶRMOR 6 kV
ARCHIPELAGO
Lighting Group
Electrical & Optical
| Input voltage | 120–277V, 50/60 Hz |
| Dimming | 0–10V |
| Power factor / THD | PF >0.9 · THD <20 % |
| Surge protection | 6 kV, on board |
| CRI | >80 |
| Controls | Button photocell with ON/OFF switch, built in (/PS) |
| CCT and WATTselect | Set by switch on the fixture · not encoded in the catalog number |
Construction & Environment
| Housing | One-piece die-cast aluminum · UV-resistant polyester powder coat · Dark Bronze |
| Optic | Glass lens · reflector and refractor · NEMA 7H×6V |
| Operating ambient | −40 °F to 113 °F |
| Location | cULus Listed · wet location · 3G vibration per ANSI C136.31 |
| Mounting | Knuckle, slip-fitter, trunnion or yoke, in the catalog number |
| Warranty | 5-year / 50,000-hour limited |
cULusWet LocationFCCRoHS
ARCHIPELAGO
Lighting Group
Bill of materials — this build
| # | Item | Selection | Catalog number | On the order |
|---|
Housing, finish and mount are the catalog number; the photocell is in every number. Watts and color are set on the fixture and are not in it. There are no separate parts to order.
Every fixture catalog number
ARCHIPELAGO
Lighting Group
04 · Photometrics & Dimensions
Beam angle (50 % of peak)
—
Dimensions
No DLC listing is claimed for this family. Rebate Center shows what your utility pays and the forms it needs, by ZIP.
Full IES library:
