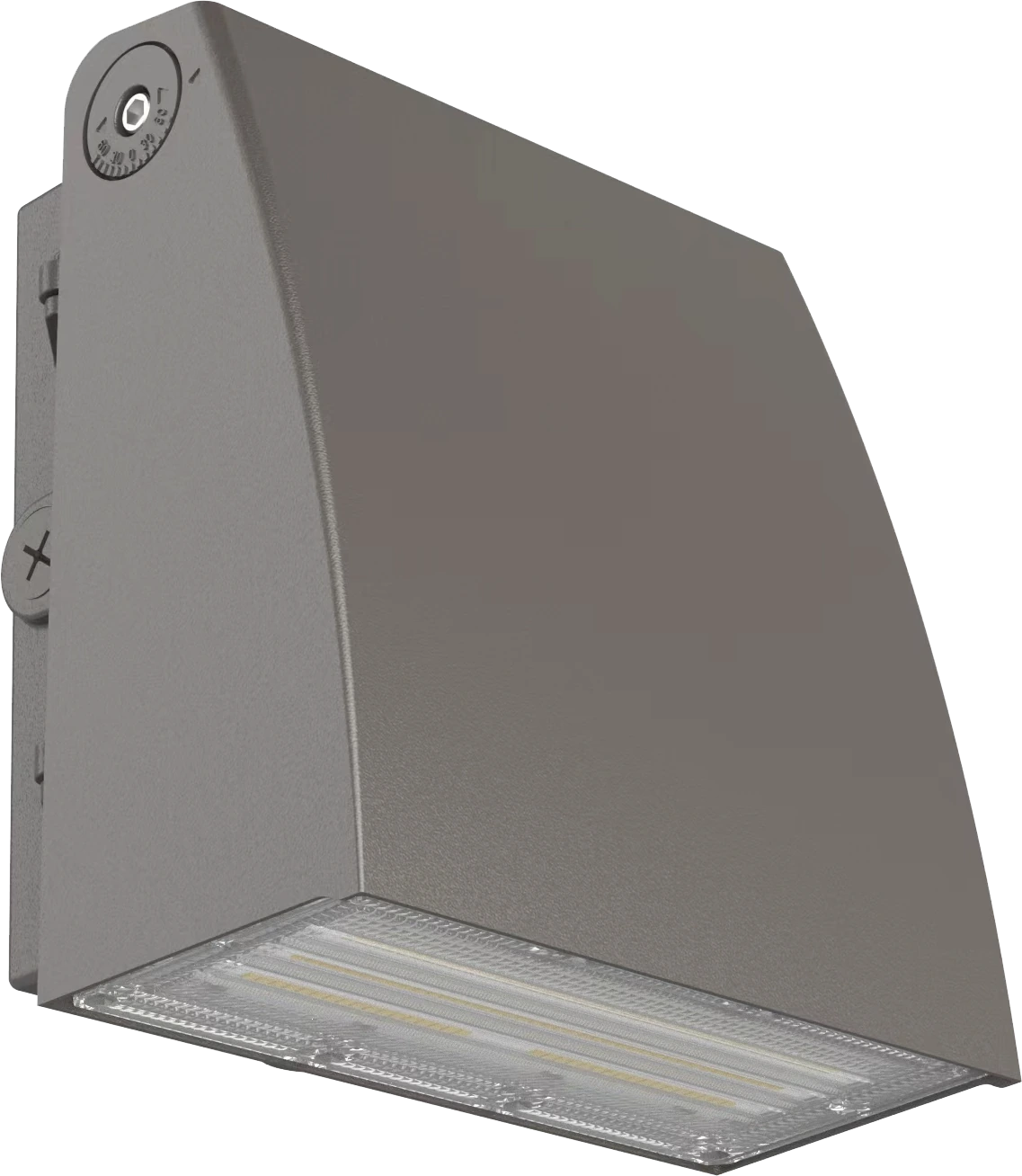

FIELD-SET
3-WATTselect set before install · 3-CCTselect 3000 / 4000 / 5000K · Adjustable aim vertical · Photocell integrated, both numbers · 0–10V · wetⒶGUARD silicone-ring seal
ARCHIPELAGO
Lighting Group
Electrical & Optical
| Input voltage | 120–277V, 50/60 Hz |
| Dimming | 0–10V, isolated driver |
| Power factor | PF >0.9 |
| CRI | >70 |
| Controls | Integrated photocell, built in (/PS) |
| Rated life | 50,000 hr |
| CCT and WATTselect | Set by switch on the fixture · not encoded in the catalog number |
Construction & Environment
| Housing | Die-cast aluminum · silicone-ring seal · Dark Bronze · adjustable vertical aim |
| Lens | UV-stabilized prismatic polycarbonate |
| Operating ambient | −40 °F to 113 °F |
| Location | cULus Listed · wet location |
| Mounting | Over a recessed junction box, on a self-adhesive waterproof pad |
| Warranty | 5-year / 50,000-hour limited |
cULusWet LocationFCCRoHS
ARCHIPELAGO
Lighting Group
Bill of materials — this build
| # | Item | Selection | Catalog number | On the order |
|---|
Housing, finish and the photocell are the catalog number. Watts and color are set on the fixture and are not in it. Nothing is ordered on its own line.
Every fixture catalog number
ARCHIPELAGO
Lighting Group
04 · Photometrics & Dimensions
Beam angle (50 % of peak)
—
Dimensions
LWPA3W80-3A1-UD/PS is DLC listed (QPL S-7C27ZZ); no DLC listing is claimed for LWPA3W120-3A1-UD/PS. Rebate Center shows what your utility pays and the forms it needs, by ZIP.
Full IES library:
