FIELD-SET

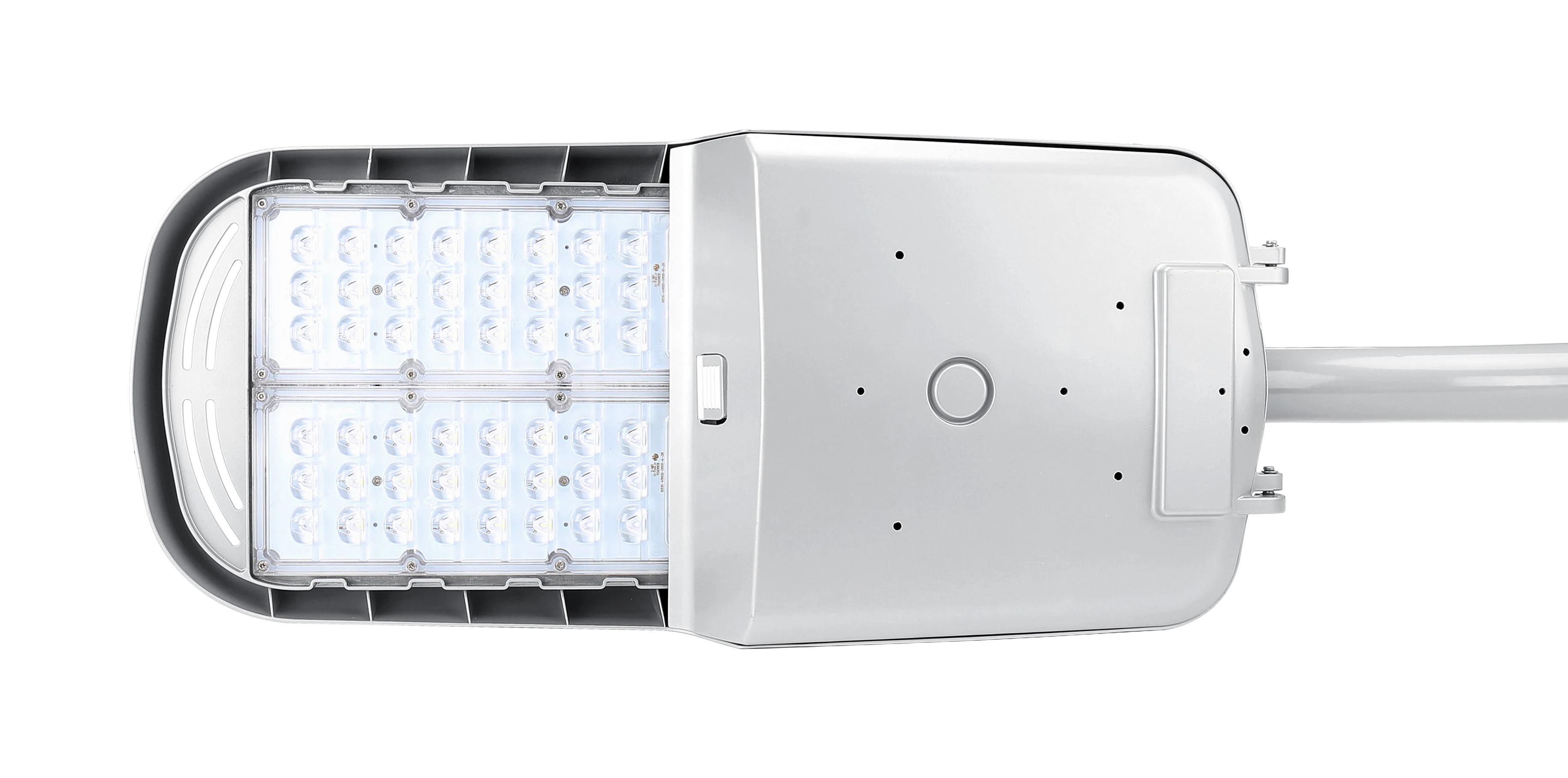

Abbey-I fixed 105 / 150 W · Abbey-II 4-WATTselect behind the door · Type III roadway · Photocell receptacle twist-lock · Slip-fit 1-5/8″–2-3/8″ arm, ±5° · 0–10V · surgeⒶRMOR 10 / 20 kV
ARCHIPELAGO
Lighting Group
Electrical & Optical
| Input voltage | 120–277V (U, 27V) · 347–480V (H, Abbey-I) · 277–480V (48V, Abbey-II) |
| Dimming | 0–10V, 10–100 % |
| Power factor / THD | PF >0.9 · THD <20 % |
| Surge protection | 10 kV at 120–277V · 20 kV at high voltage |
| CRI | ≥70 |
| Controls | Twist-lock photocell receptacle · photocell its own line |
| Wattage selector | Abbey-II: 100 / 80 / 60 / 40 % behind the door · not encoded in the catalog number |
Construction & Environment
| Housing | Heavy-duty die-cast aluminum · Silver · sealed LED compartment |
| Door | Removable, latched, opens without tools |
| Lens | Polycarbonate |
| Vibration | 3G (ANSI C136.31) |
| Operating ambient | −40 °F to 104 °F |
| Location | cULus Listed · wet location |
| Mounting | Slip-fits a 1-5/8″ to 2-3/8″ O.D. arm or tenon · aims ±5° in 2.5° steps · bubble level |
| Warranty | 10-year / 100,000-hour limited |
cULusWet LocationFCCRoHS
ARCHIPELAGO
Lighting Group
Bill of materials — this build
| # | Item | Selection | Catalog number | On the order |
|---|
Housing, generation, color and voltage are the catalog number. Abbey-II output is set on the selector behind the door and is not in it. The photocell, the masting arm and the Type II optic are their own order lines.
Every fixture catalog number
Accessories — ordered separately
ARCHIPELAGO
Lighting Group
04 · Photometrics & Dimensions
Beam angle (50 % of peak)
—
Dimensions
DLC QPL IDs are listed by number. Rebate Center shows what your utility pays and the forms it needs, by ZIP.
Full IES library:
