Brighton Tubular: T6, T9, T10 Decorative LED Lamp
Slim tubular lamps in T6, T9 and T10, amber or clear glass. 200 to 400 lumens, 2200K and 2700K, dims to off.
The Brighton is the slim tubular lamp for horizontal pendants over bars and counters, sign backs, and any fixture where one lamp lights a run rather than a point. Three envelopes: T6 on a candelabra base at 3.8″, and T9 and T10 on a medium base up to 11.8″ long. Every model holds 90+ CRI, is rated for wet locations, and is tested on the dimmers listed on this page.
- Bar & counterHorizontal pendants
- RetailSign backs and display cases
- HospitalityPicture lights and sconces
- Dims to off
- 360° light
- Wet location
- E12 + E26 bases
- UL enclosed rated
- UL Listed
- JA8 · 1 model
- Title 20 · 2 models
Documents & Resources
Model Specifications
| Catalog number | Envelope | Glass | Base | Filament | Watts | Lumens | CCT | CRI | JA8 | T20 |
|---|---|---|---|---|---|---|---|---|---|---|
| LTTB6V20022CB-90 | T6 | Amber | E12 | Standard | 2.0W | 200 lm | 2200K | 90+ | — | — |
| LTTB9X20022MB-SV | T9 | Amber | E26 | Vertical spiral | 3.5W | 200 lm | 2200K | 90+ | — | — |
| LTTB10V40022MB/T20 | T10 | Amber | E26 | Standard | 4.5W | 400 lm | 2200K | 90+ | — | ✓ |
| LTTB6C20027CB/JA8 | T6 | Clear | E12 | Standard | 2.0W | 200 lm | 2700K | 90+ | ✓ | ✓ |
| LTTB9C20027MB | T9 | Clear | E26 | Standard | 2.0W | 200 lm | 2700K | 90+ | — | — |
| LTTB10C35027MB | T10 | Clear | E26 | Standard | 3.5W | 350 lm | 2700K | 90+ | — | — |
6 orderable catalog numbers, E12 candelabra or E26 medium base. ★ From the issued datasheet.
- Base
- E12 candelabra · E26 medium
- Envelope
- T6 3.8″ × 0.8″ · T9 11.8″ × 1.2″ · T10 7.5″ × 1.2″ · T9 5.1″ × 1.2″
- Replaces
- 40W / 60W incandescent
- Dimming
- Natural dimming, dim to off
- Distribution
- 360°
- Location
- Wet
- Case
- 48 pcs
- Rated life
- 25,000 h
- Warranty
- 3 yr · 25k hr Limited Warranty
The lamp, up close

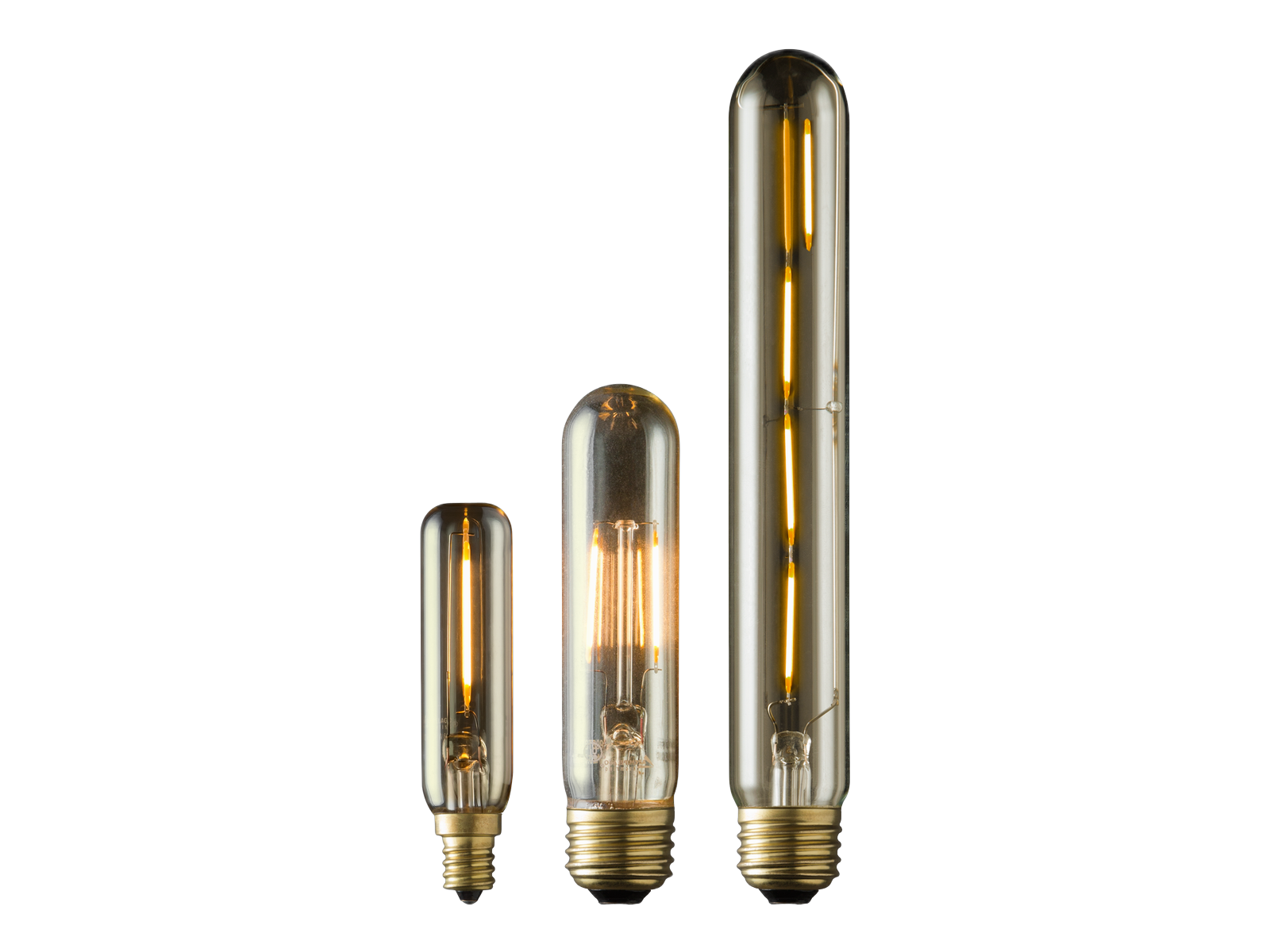

Three envelopes
T6 at 0.8″ across; T9 and T10 at 1.2″.
3.8″ to 11.8″ long

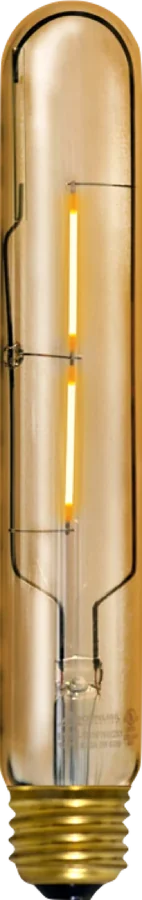

T6 3.8″; T9 5.1″, or 11.8″ with the spiral filament; T10 7.5″.
JA8 option
LTTB6C20027CB/JA8 is clear, 2700K and listed for California JA8.
Amber or clear
Amber at 2200K; clear at 2700K.
Tested Dimmers
Every vintⒶGE lamp marked for natural dimming dims to off on these controls. A dimmer that is not listed may still work; a listed dimmer is not a guarantee for every lamp and load. Send us yours and we will test it.
Lutron
- TGCL-153P
- SCL-153P
- DVCL-153P
- LGCL-153P
- MACL-153M
- PD-6WCL
- AY-600P
- D-600P
- GL-600P
- S-600P
- DV-600P
- SELV-300P
- DVELV-300P
- NTELV-500
- RRD-6NA
- MRF-2-6ELV-120
- HQRD-6NA
Leviton
- DSL06-1LZ
Legrand
- HCL45-3PW
Forbes & Lomax
- FLR603P
- FLRLV603P
Cooper
- DAL06P
Build a Catalog Number
Choose from the options below. Only catalog numbers that exist can be built; a choice with no match moves the others to the nearest number that does.
The vintⒶGE series
Foundry Edison
ST19 / ST21 Edison
200–400 lm · 2200K · 2700K
Belgravia Victorian
Victorian A-Shape
200–500 lm · 2200K
Provence Globe
Vintage Globe G16.5 / G25 / G40
200–400 lm · 2200K
Marconi Radio
Radio Tubular T10 / T14
200–350 lm · 2200K · 2700K
Brighton Tubular
Tubular T6 / T9 / T10
200–400 lm · 2200K · 2700K
Glasgow Candelabra
Vintage Flame-Tip Candelabra
200–400 lm · 2200K
Three years. 25,000 hours.
Every nostⒶLGIC and vintⒶGE lamp carries the same limited warranty: the lesser of 3 years after shipment or 25,000 hours of use.
Try it in your fixture.
Request lamps to test in your own fixture and on your own dimmer before you specify a room’s worth.
