nostⒶLGIC · LTB10 · Blunt-tip candle

Knoll B10 LED Candle Lamp Decorative LED Lamp

The blunt-tip candle in clear or frosted glass, on a candelabra or medium base. 200 to 500 lumens, 2400K and 2700K, dims to off.

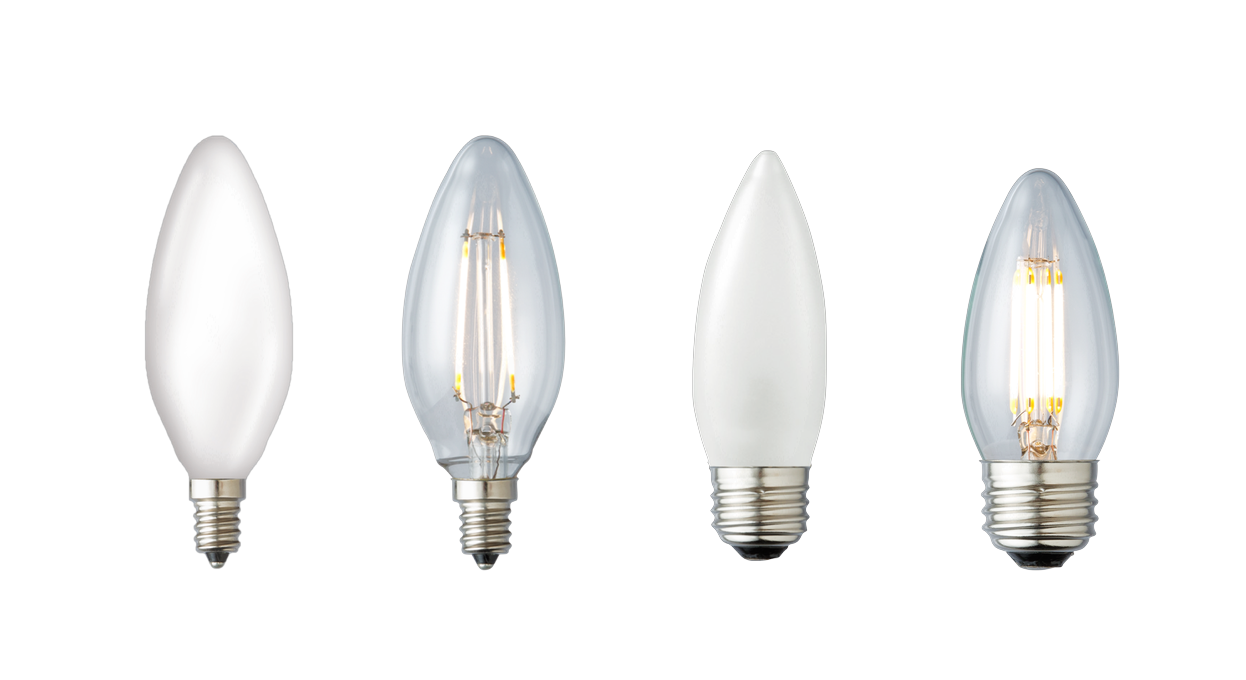

The Knoll is the blunt-tip candle, the workhorse of chandeliers and wall sconces. Frosted for dining rooms, clear where the filament is part of the design. It comes on a candelabra base at 4.0″ long or a medium base at 3.5″, so check the base before you specify a fixed-aperture fixture. Specification grade, rated for wet locations, and tested on the dimmers listed on this page.

Specification Sheet Photometrics Build A Catalog Number

200–500lm

Lumens

2.0–5.5W

Watts

83+ / 90+

CRI · 90+ on /JA8, /T20, -90

25,000h

Rated life

Where it belongs

DiningChandeliers over the table
HospitalityWall sconces and corridors
ResidentialEntry and stair fixtures

Features

Dims to off
360° light
Wet location
E12 + E26 bases
UL enclosed rated

Listings

UL Listed
JA8 · 1 model
Title 20 · 2 models

Documentation

Documents & Resources

Documents

Specification SheetPDF

Tools & Support

Specifications

Model Specifications

Catalog number	Glass	Base	Watts	Lumens	CCT	CRI	JA8	T20
LTB10C20024CB	Clear	E12	2.0W	200 lm	2400K	83+	—	—
LTB10C35027CB-90	Clear	E12	3.5W	350 lm	2700K	90+	—	—
LTB10C20027MB	Clear	E26	2.0W	200 lm	2700K	83+	—	—
LTB10C35024MB	Clear	E26	3.5W	350 lm	2400K	83+	—	—
LTB10C35027MB	Clear	E26	3.5W	350 lm	2700K	83+	—	—
LTB10C50024MB	Clear	E26	4.5W	500 lm	2400K	83+	—	—
LTB10C50027MB	Clear	E26	4.5W	500 lm	2700K	83+	—	—
LTB10F35024CB	Frosted	E12	3.5W	350 lm	2400K	83+	—	—
LTB10F40027CB/JA8	Frosted	E12	4.5W	400 lm	2700K	90+	✓	✓
LTB10F50027CB/T20	Frosted	E12	5.5W	500 lm	2700K	90+	—	✓
LTB10F20027MB	Frosted	E26	2.0W	200 lm	2700K	83+	—	—
LTB10F20024MB	Frosted	E26	2.0W	200 lm	2400K	83+	—	—
LTB10F35027MB	Frosted	E26	3.5W	350 lm	2700K	83+	—	—
LTB10F50024MB	Frosted	E26	4.5W	500 lm	2400K	83+	—	—
LTB10F50027MB	Frosted	E26	4.5W	500 lm	2700K	83+	—	—

15 orderable catalog numbers, E12 candelabra or E26 medium base. ★ From the issued datasheet.

Base: E12 candelabra · E26 medium
Envelope: E12 4.0″ × 1.3″ · E26 3.5″ × 1.3″
Replaces: 25W / 40W / 60W incandescent
Dimming: Natural dimming, dim to off
Distribution: 360°
Location: Wet
Case: 48 pcs
Rated life: 25,000 h
Warranty: 3 yr · 25k hr Limited Warranty

The Lamp

The lamp, up close

Blunt tip

A rounded candle tip, 1.3″ across, for chandeliers and sconces that show the lamp.

Two bases, two lengths

E12 candelabra at 4.0″, E26 medium at 3.5″. Same diameter on both.

JA8 where code asks for it

LTB10F40027CB/JA8 carries California JA8. The /T20 models meet Title 20 at 90+ CRI.

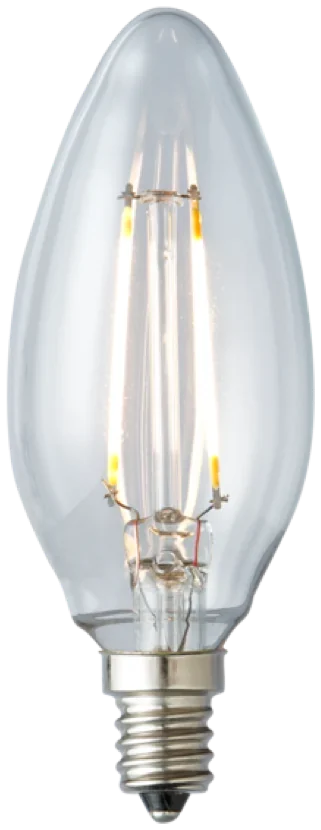

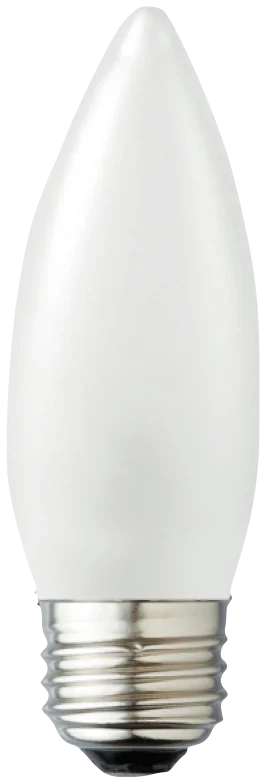

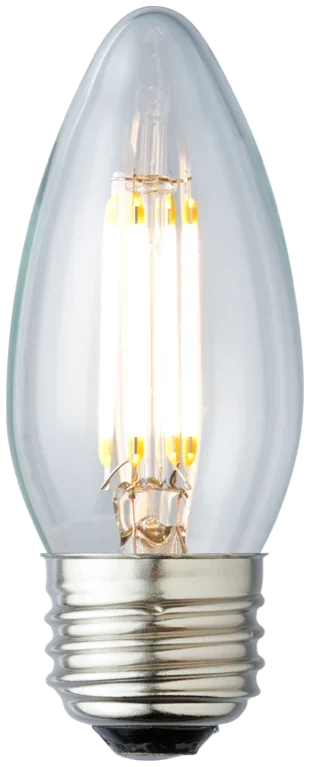

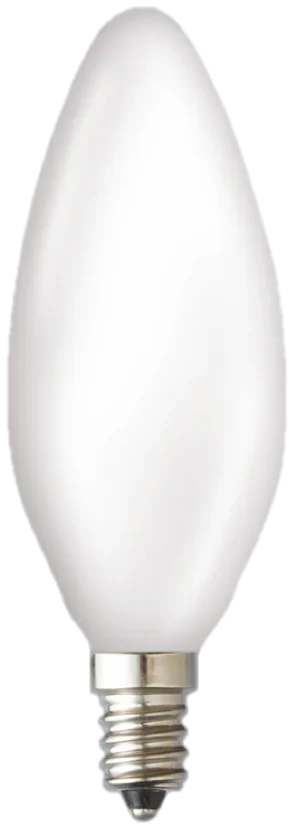

Clear or frosted

Clear shows the filament. Frosted softens the glare in a bare-bulb chandelier.

Envelope

4.0″ × 1.3″E12

3.5″ × 1.3″E26

E12 / E26Base

Photometrics

Photometric Distribution

A filament lamp lights the whole sphere; only the base blocks it. The plot is drawn from the measured candela file, nadir down.

C0–C180 plane
C90–C270 plane
Rings in candela

LTB10C35027MB · clear · 2700K · measured IES file

Dimming

Tested Dimmers

Every nostⒶLGIC lamp marked for natural dimming dims to off on these controls. A dimmer that is not listed may still work; a listed dimmer is not a guarantee for every lamp and load. Send us yours and we will test it.
