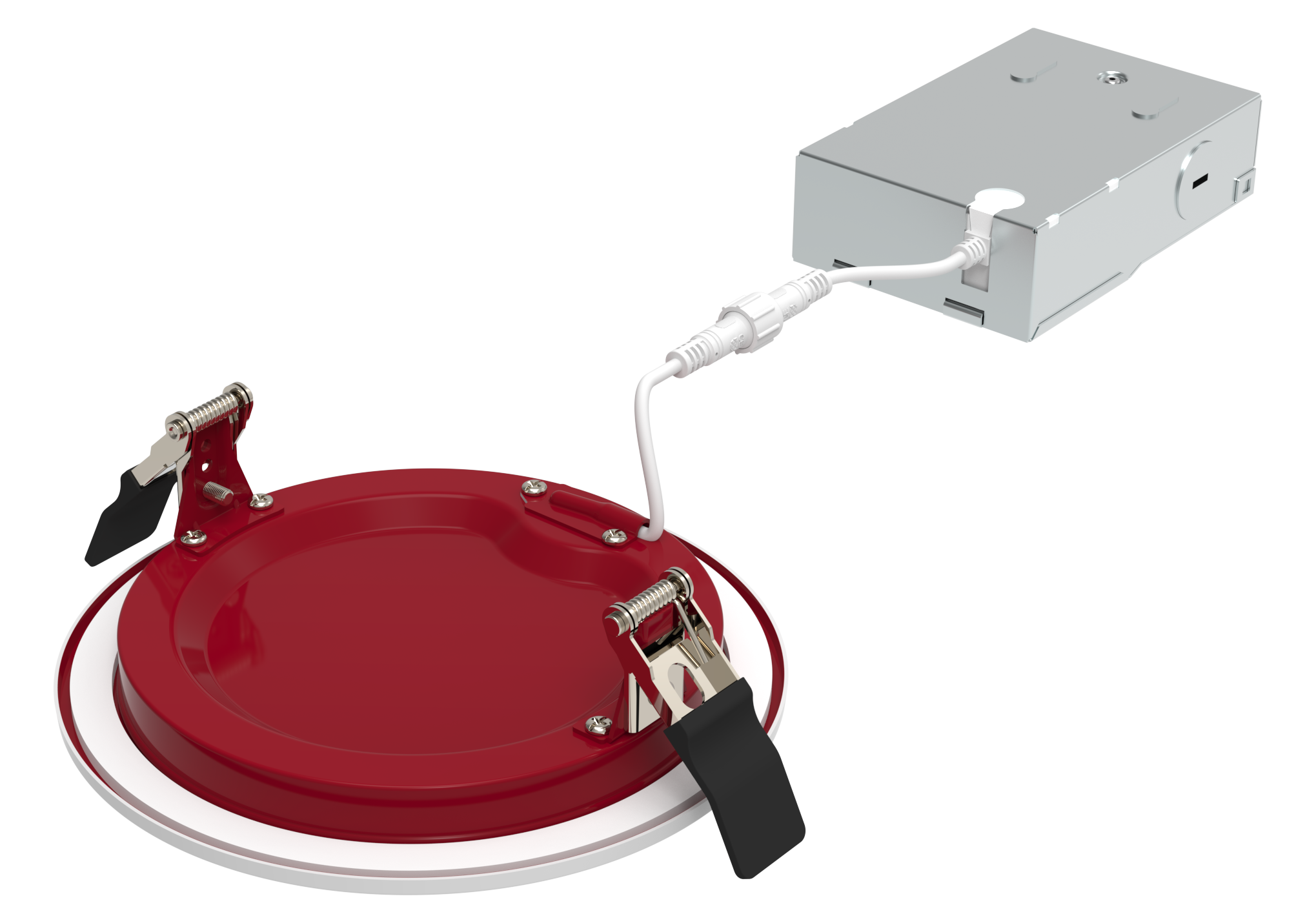

Radius SafeZone LED Downlight
Tested to UL 263 and ASTM E119.

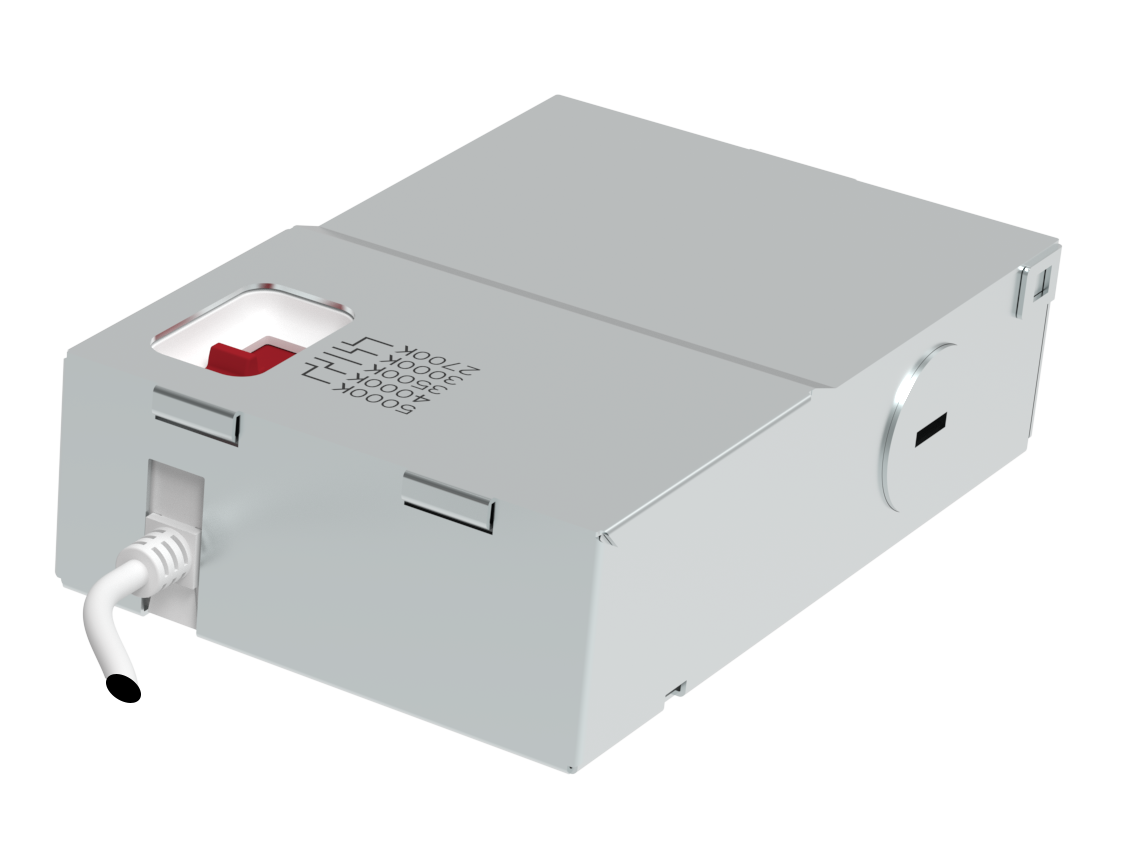

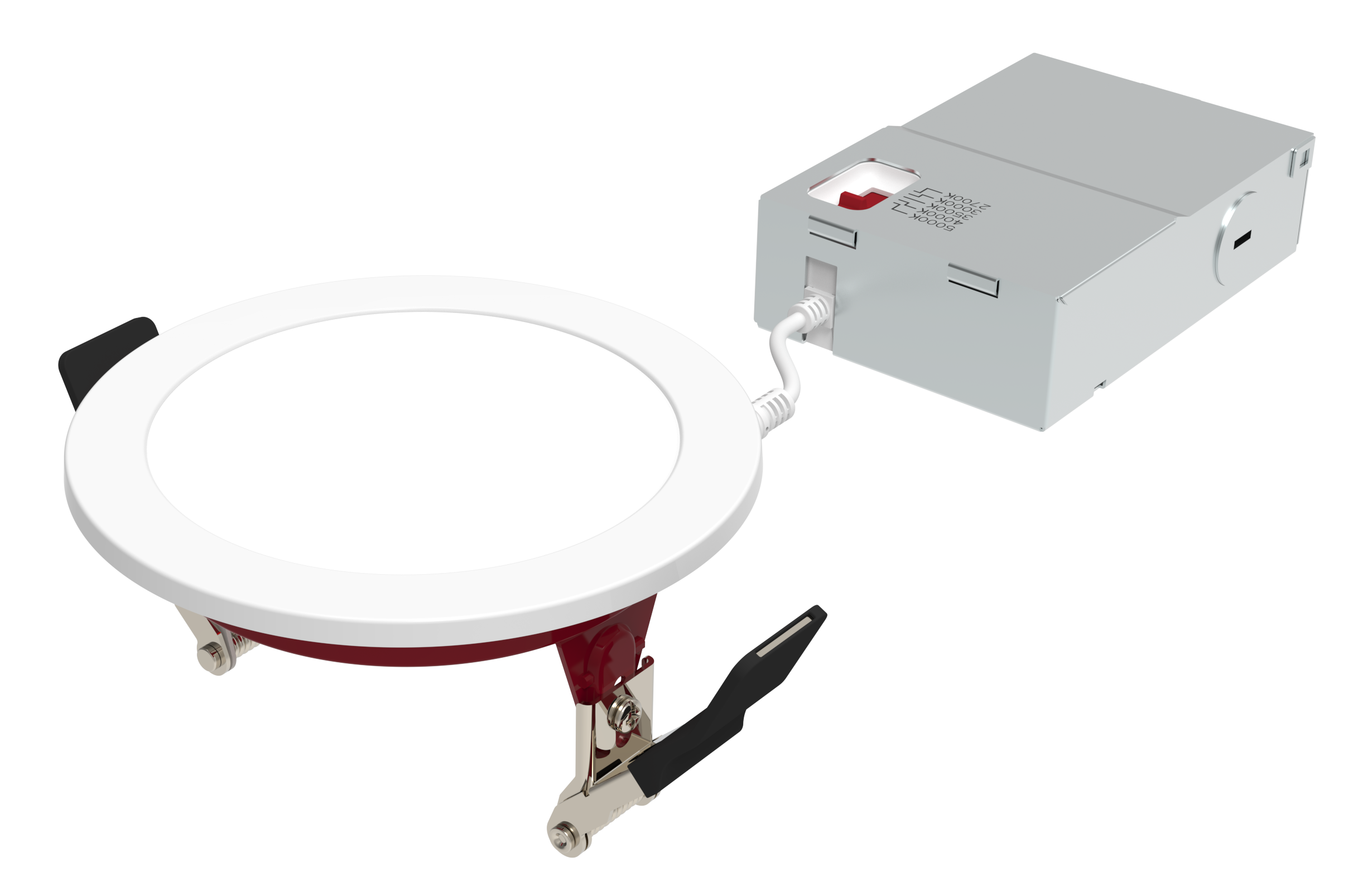

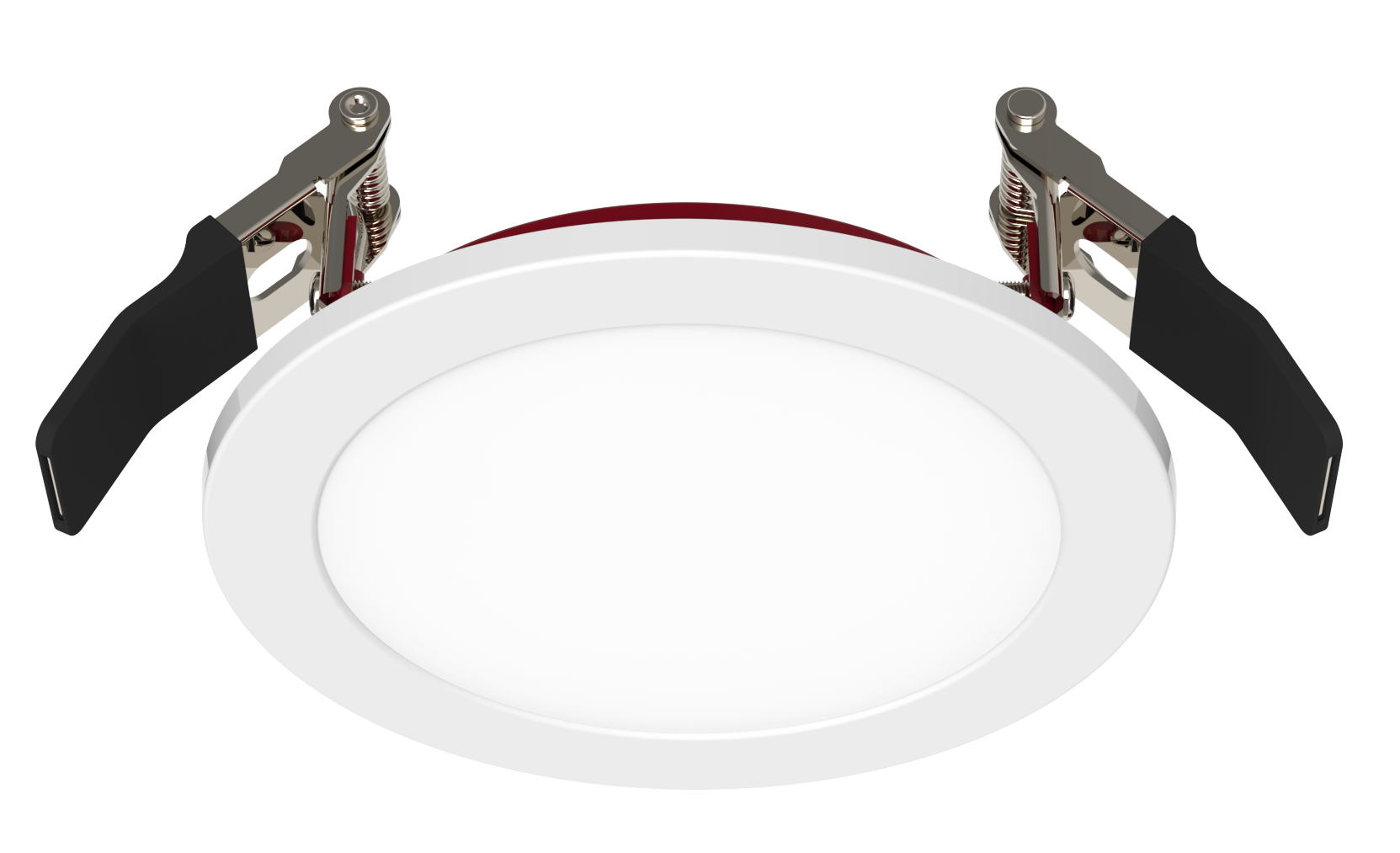

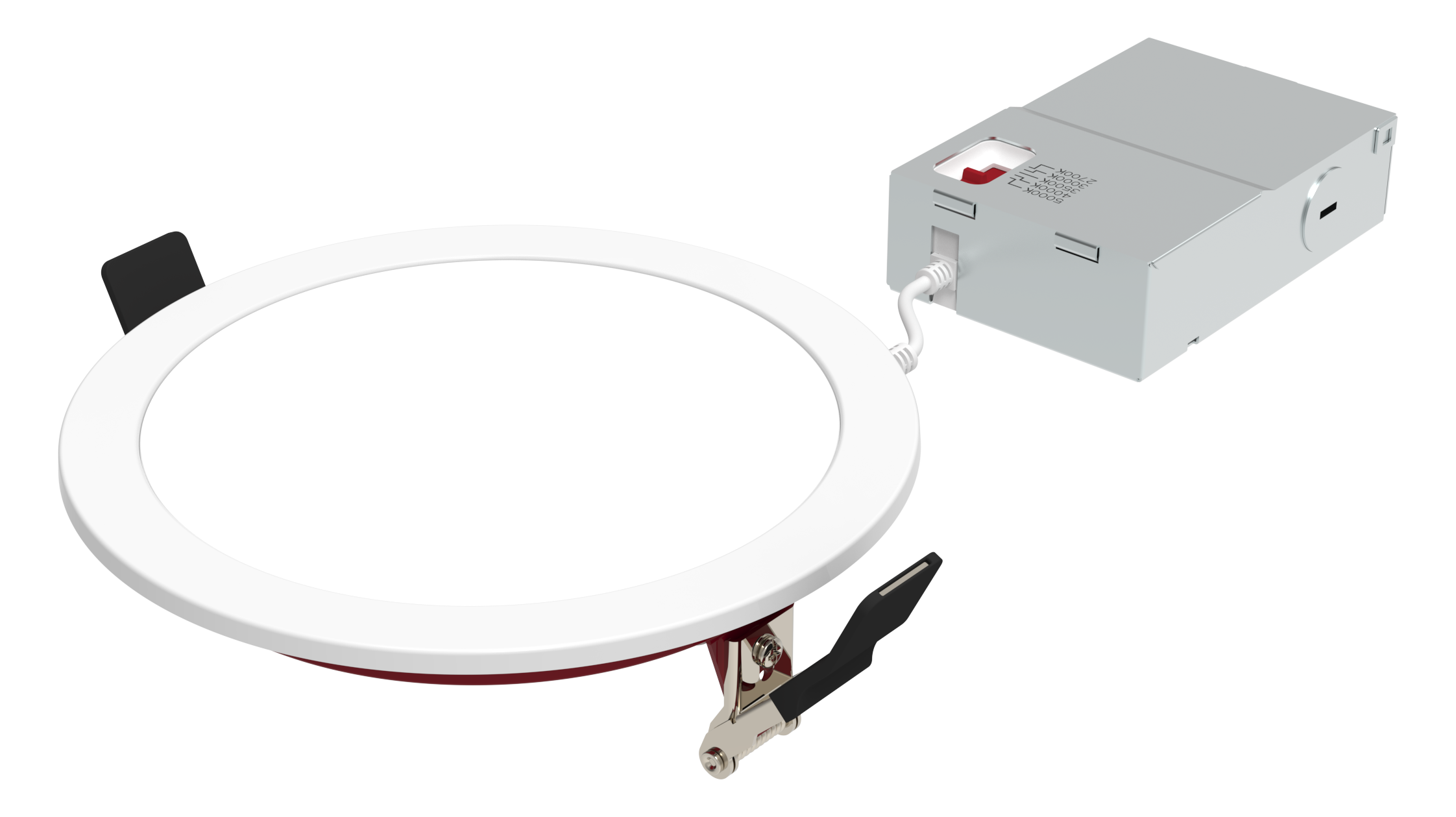

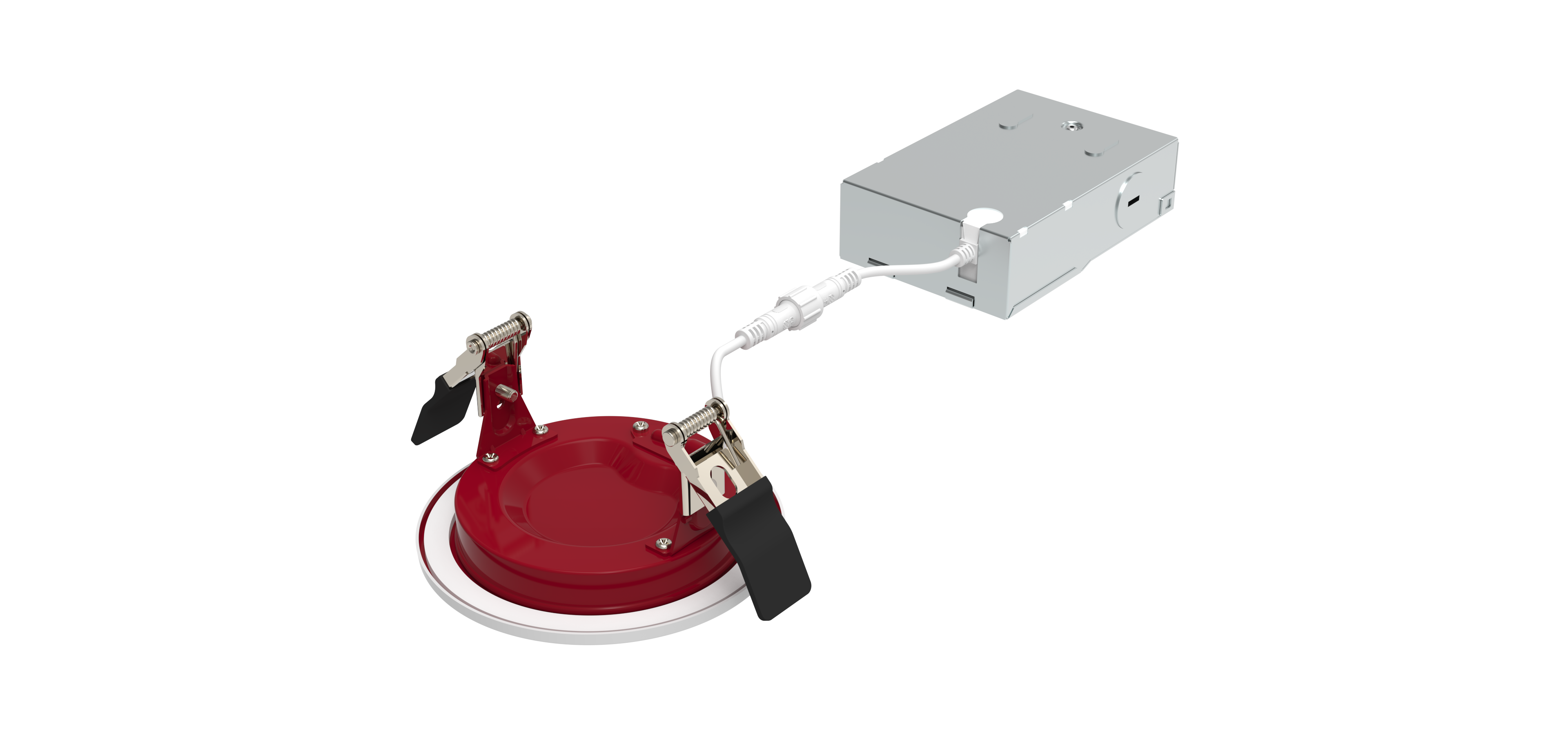

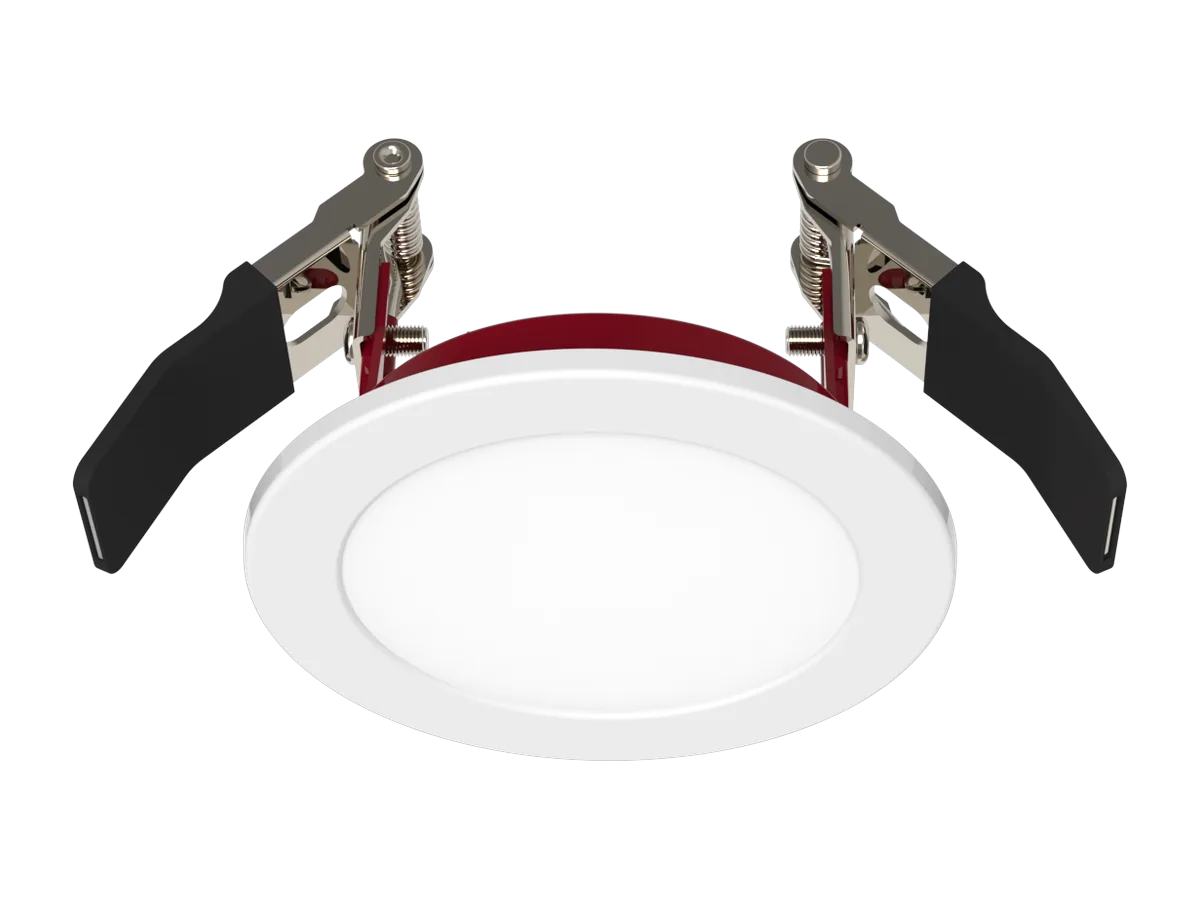

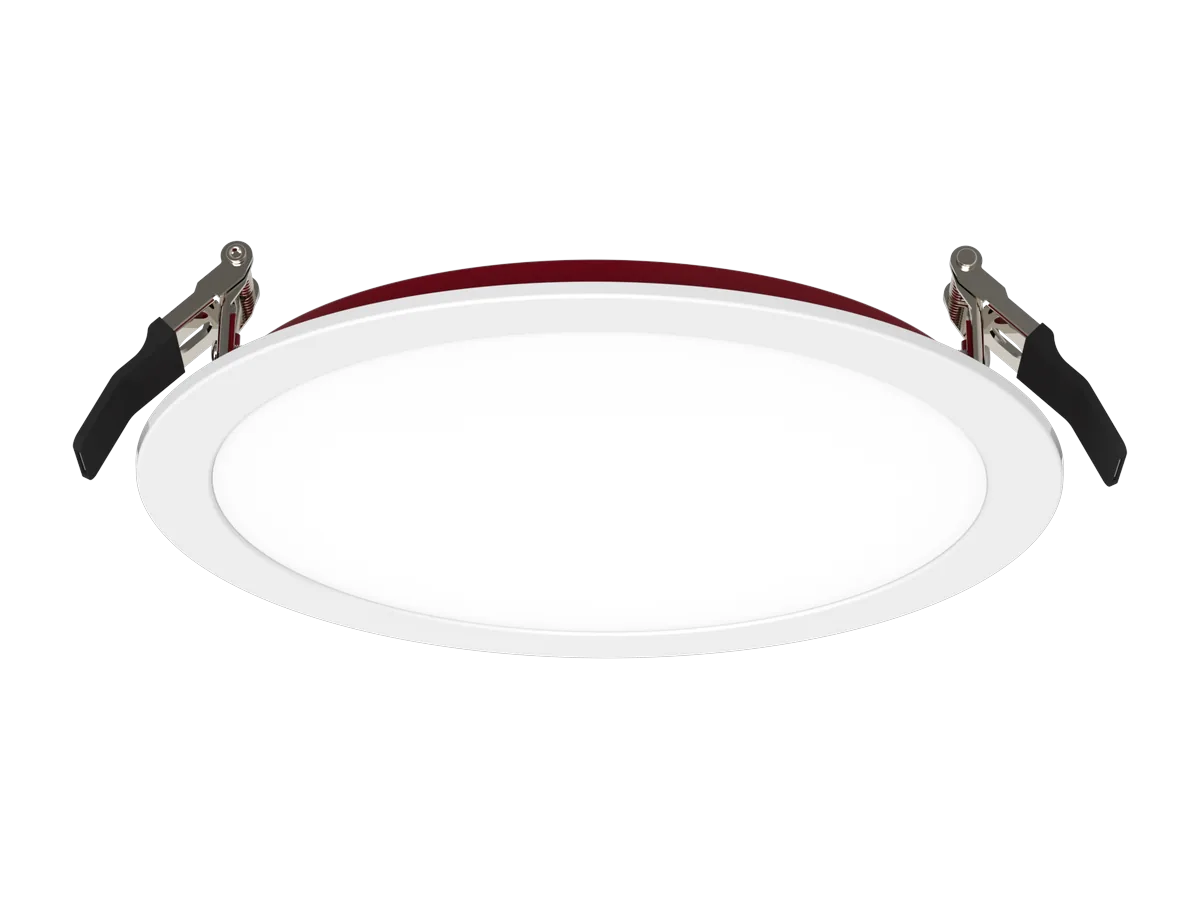

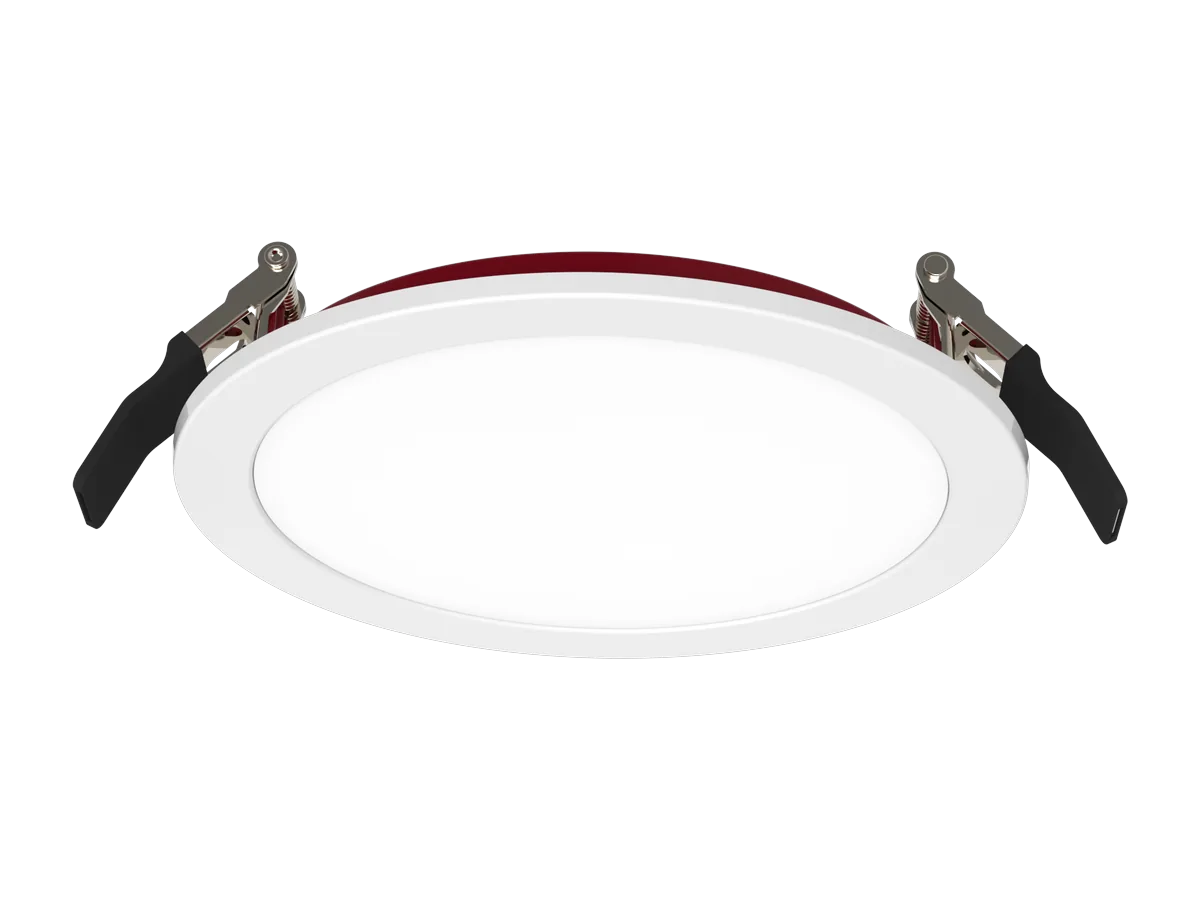

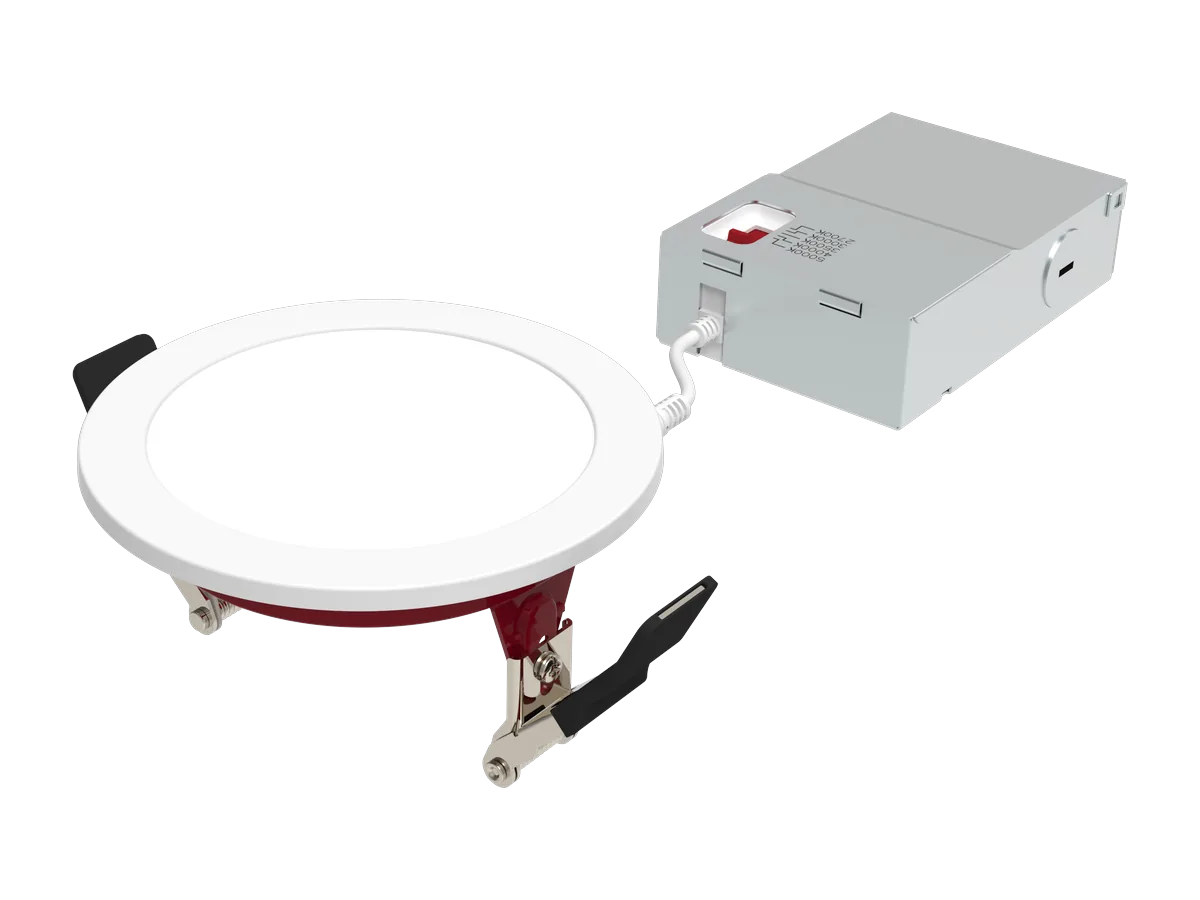

A slim, IC-rated downlight for rated ceiling assemblies. The RSZ series comes in 3, 4, 6 and 8 in at 120 V and dims to 10 % on TRIAC and ELV. The R2SZ series comes in 4 and 6 in at 120–277 V and dims over 0–10V. Both are air-tight to ASTM E283, wet location rated, and switch between five CCTs, CRI 90+. Order by series and size; the T-grid kit and the emergency J-box are each their own line.
Documentation & Resources
Model Specifications
| Figure | Input | Lumens | Efficacy |
|---|
RSZ figures are the datasheet's nominal lumens; R2SZ figures are the quick sheet's, at 4000K. The measured row is ALG's IES file for the RSZ flat lens.
Engineering
How it keeps the ceiling's rating, how it mounts, and what each line item adds.
Photometric Distribution
These are the RSZ flat-lens files. R2SZ has no photometric file.
Engineered Accessories
Build Your Radius SafeZone.

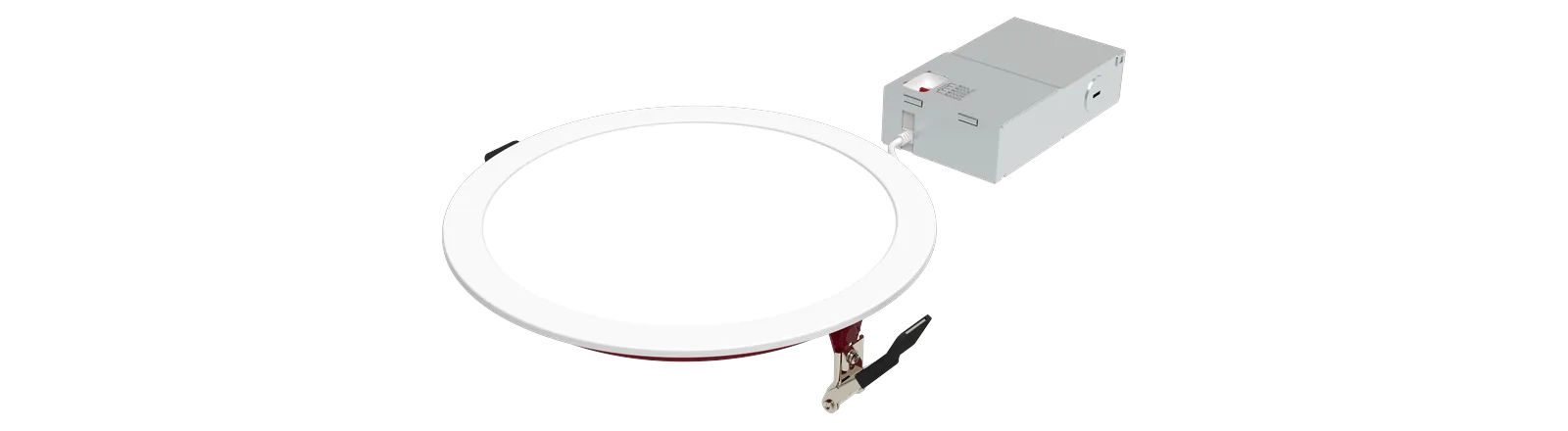

Your Catalog Number
multi-fⒶMILY Family
Downlights for the units, halls and stairs of a multi-family building, and the cans and plates they mount in.
Send us the floor plan.
We run the layout free and send it back in three business days — fixture count, spacing, foot-candles. Quotes and rebate matches come back the same day.
Utility programs, checked for you.
Send us the job ZIP and your catalog number. We check which utility programs apply before you specify, and send the forms back with the answer.
