LDLL Eclipse-II Series PRO

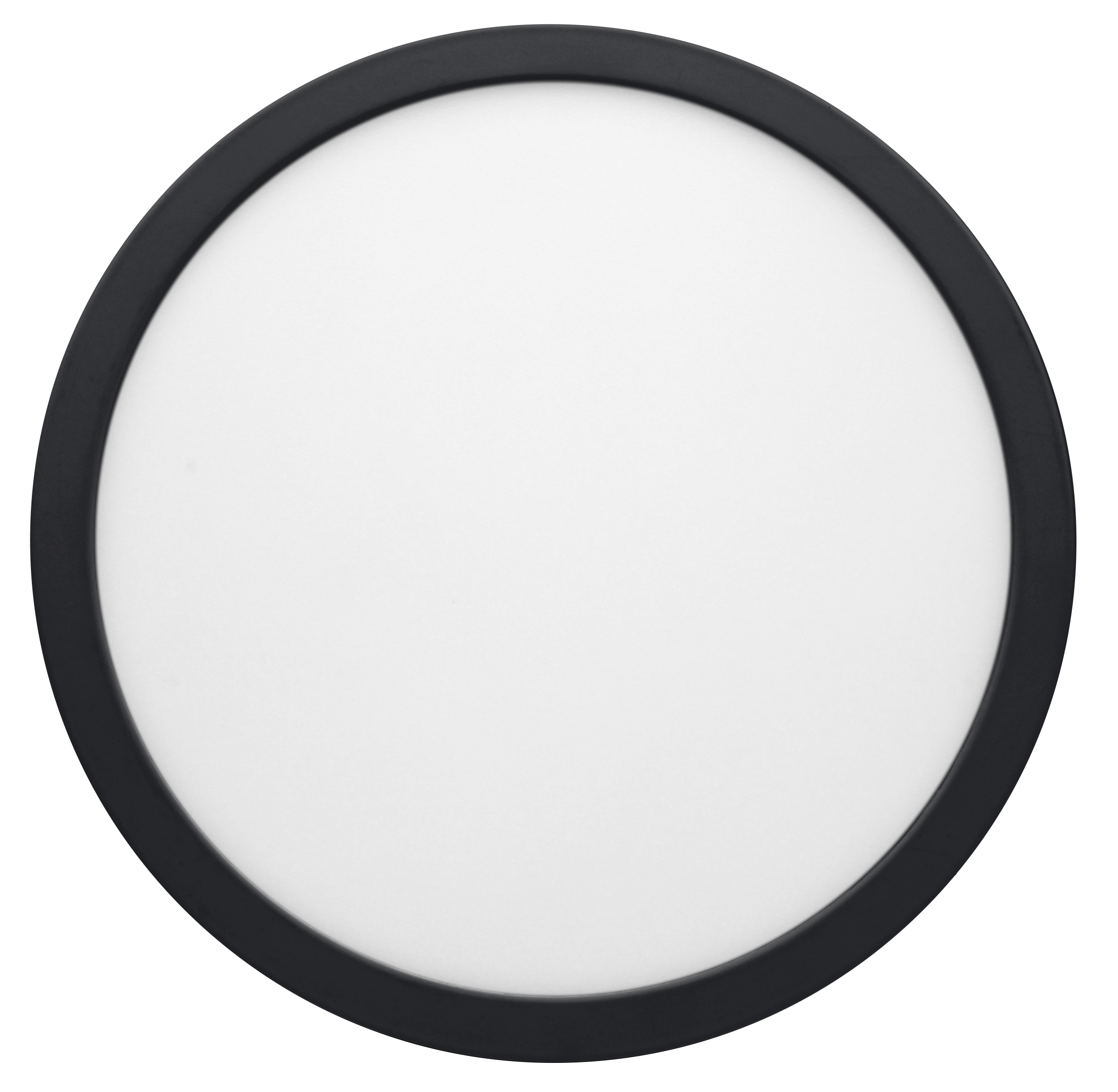

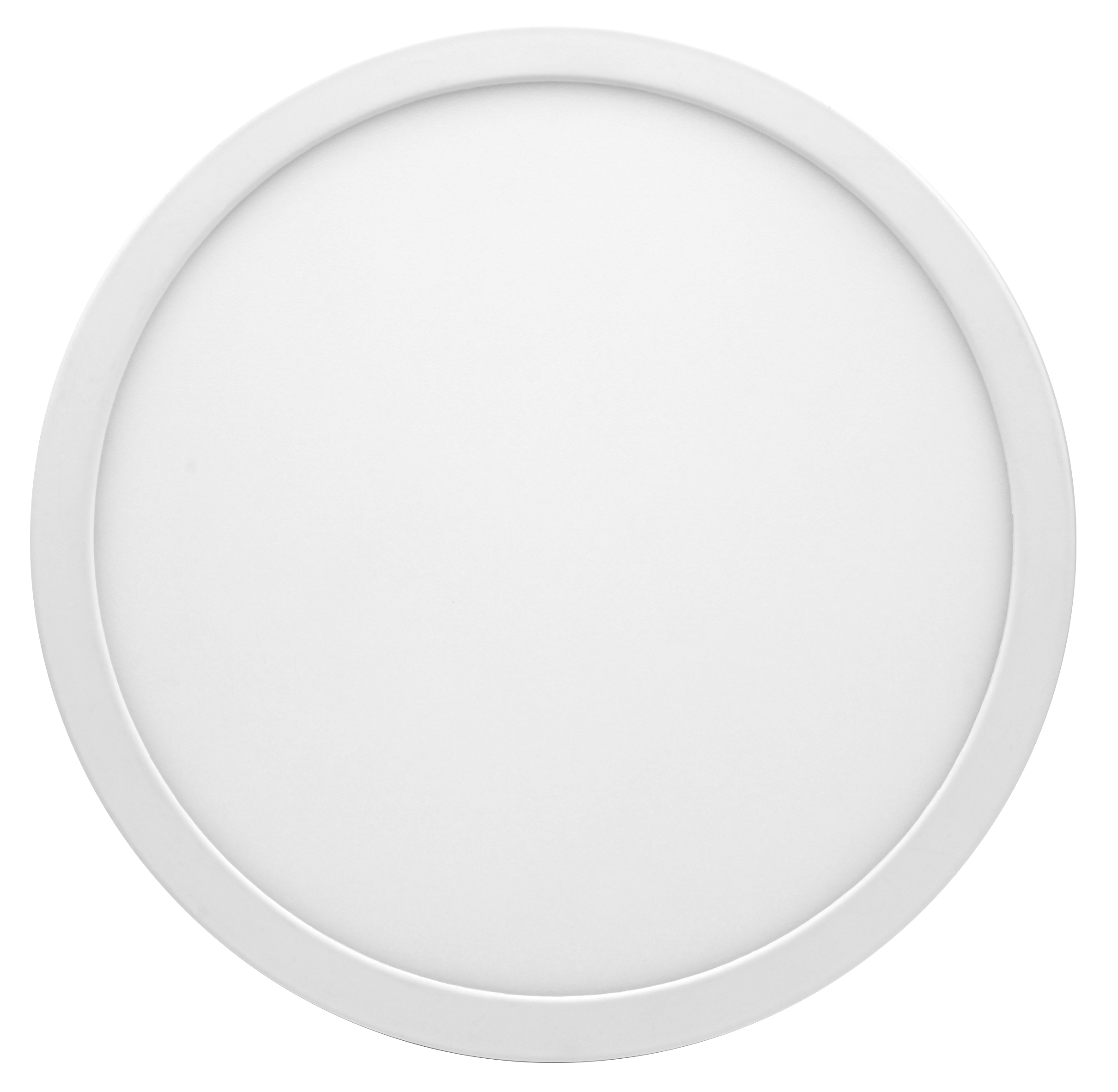

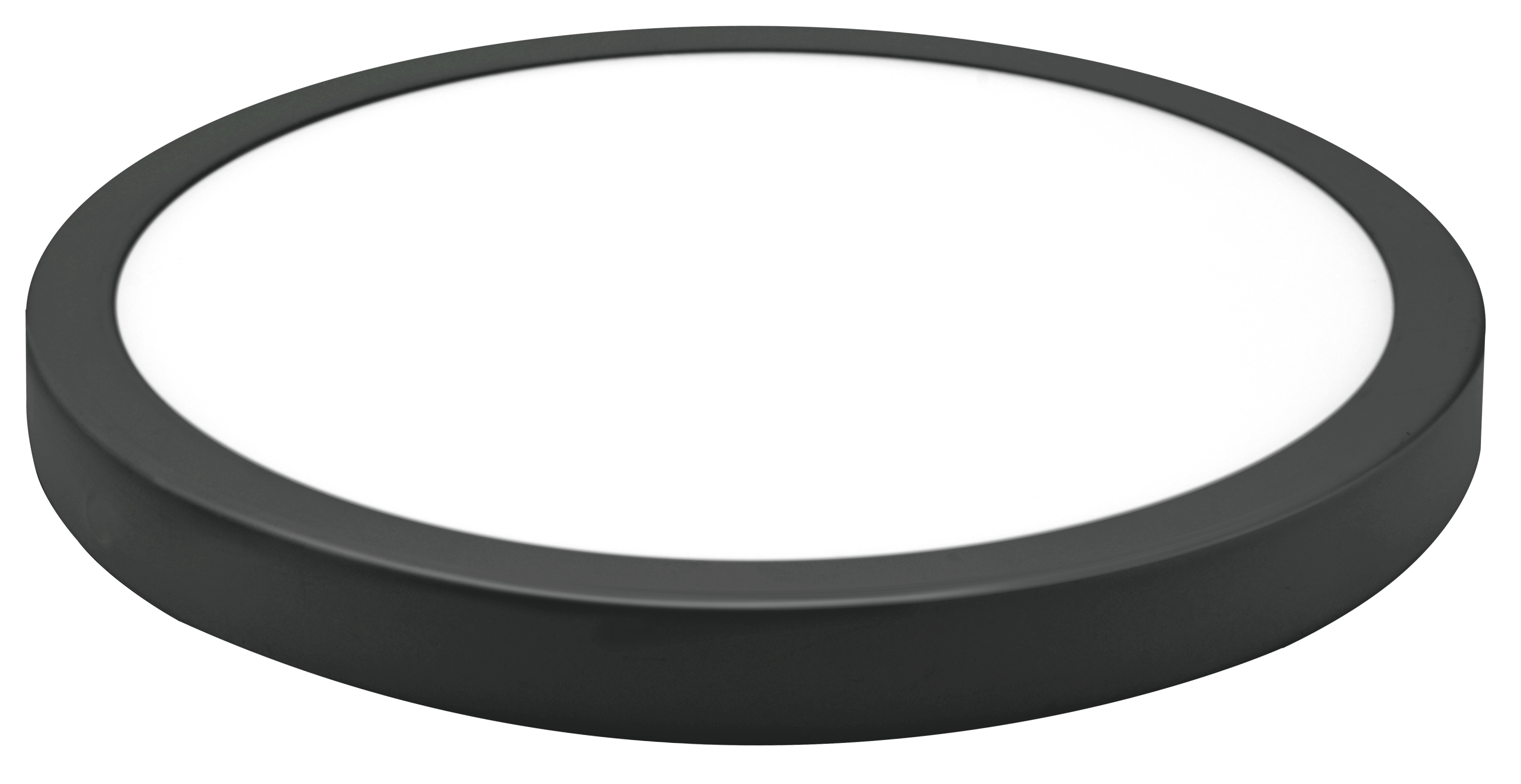

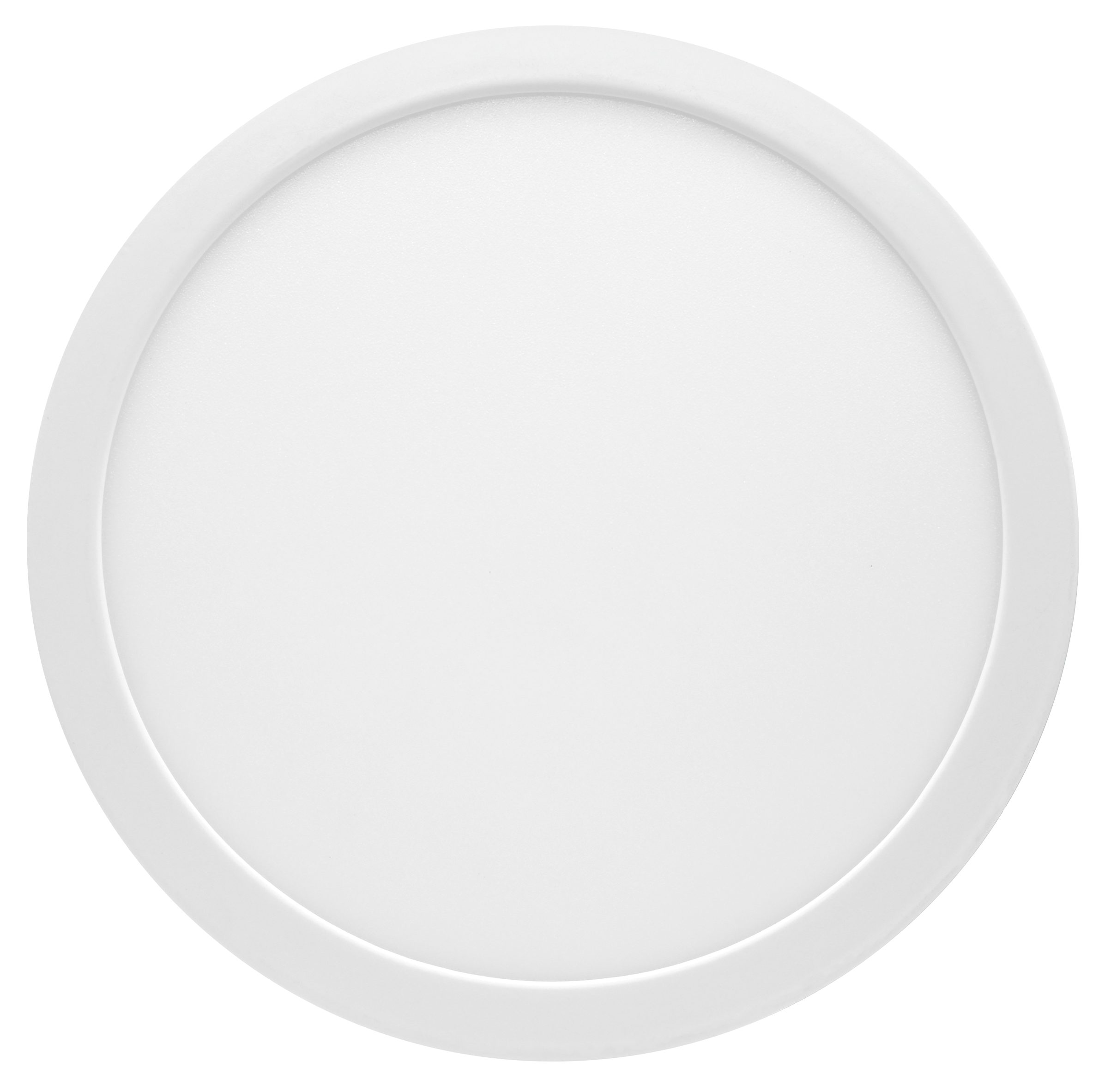

Surface-Mount Puck Downlight · Driverless · Edge-Lit

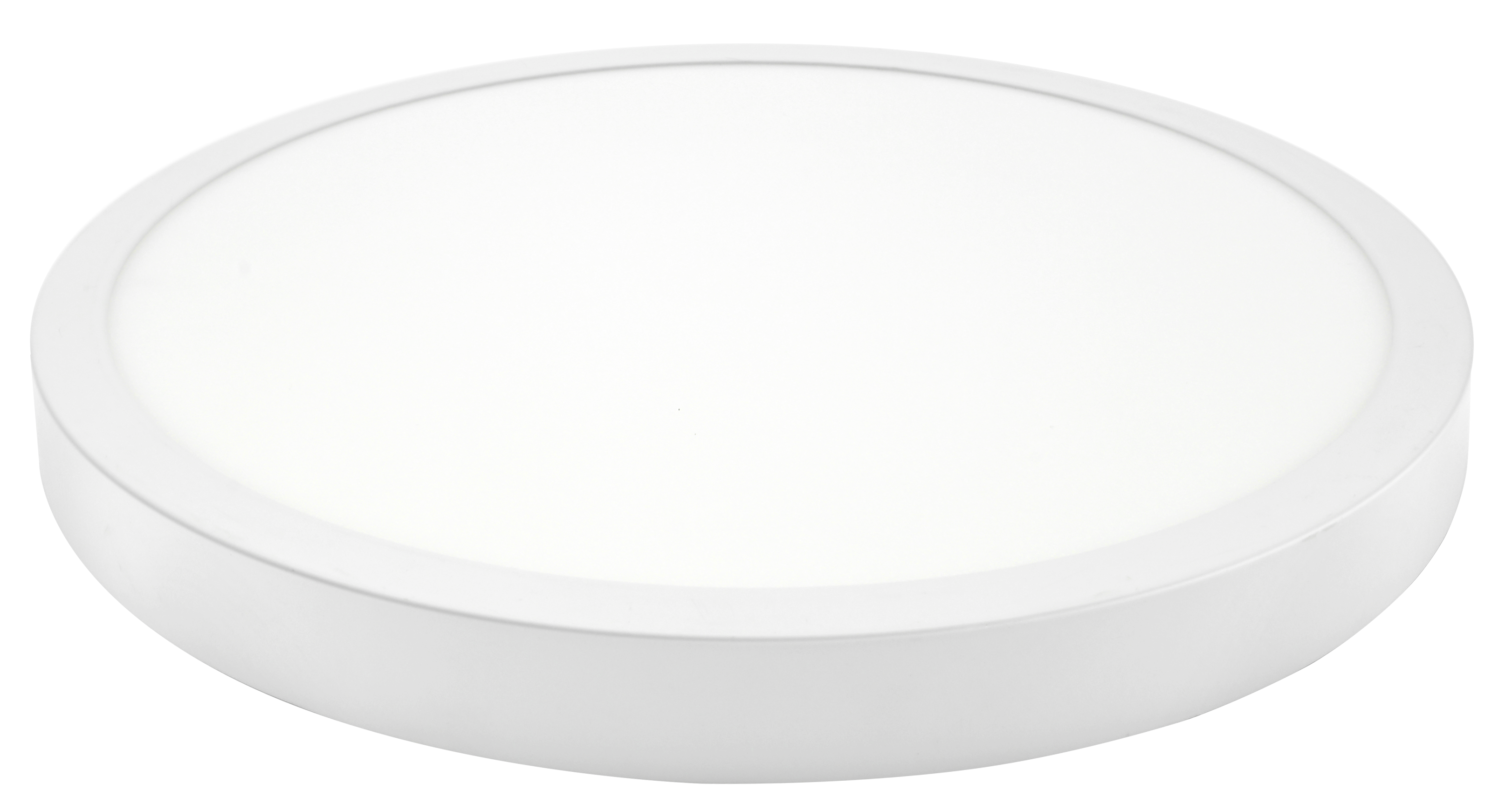

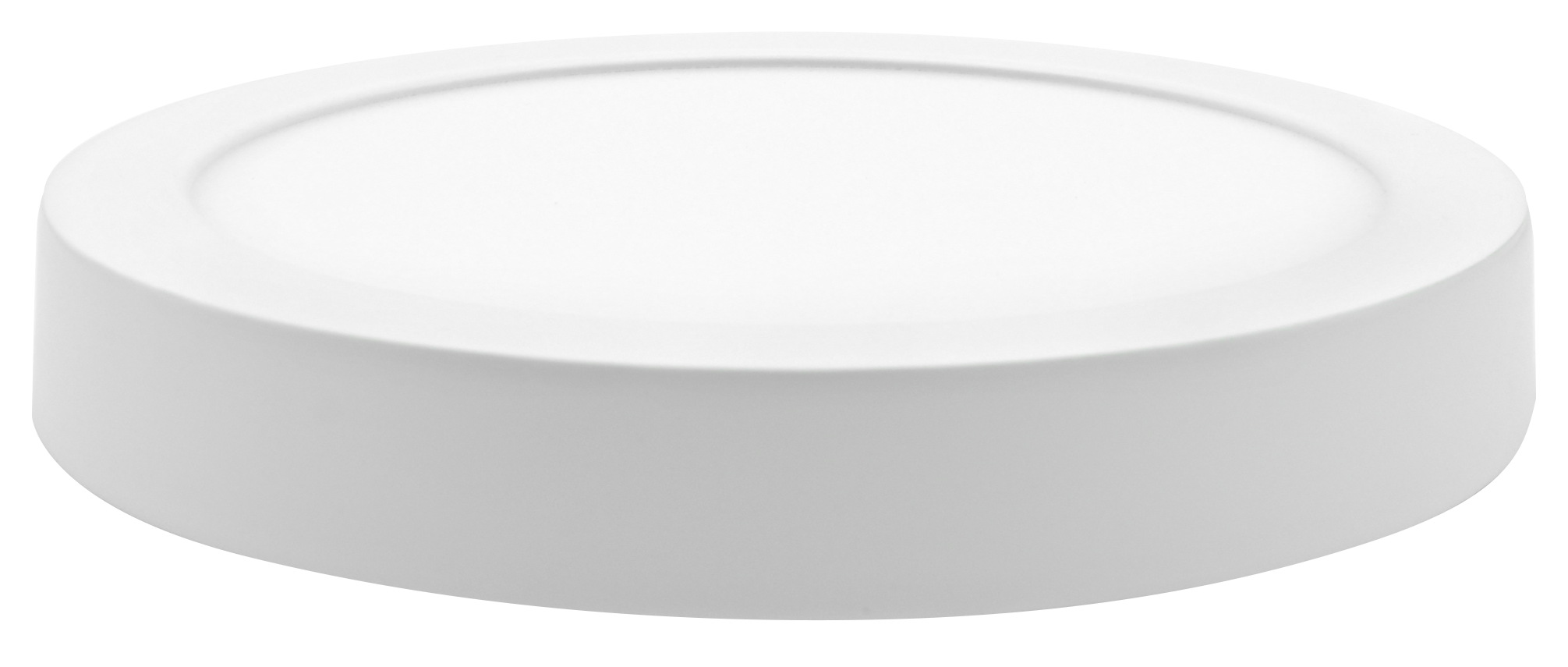

The LDLL Eclipse-II is the multi-family surface-mount puck downlight that hits 103 lm/W at 0.79″ deep. Driverless AC-direct architecture, edge-lit PMMA optic, 5-CCTselect (2700–5000K), CRI ≥90. Five sizes (5″ / 7″ / 9″ / 11″ / 13″), Round + Square. Two finishes (W/B). JA8-2022 / Title 20 / Title 24 / ETL / Damp-listed. The only surface puck on the market with a dedicated 1-Pin Plug-n-Play Bi-Level Sensor port.
Model Specifications
Download Data Sheet| Watt | Lumens | lm/W | CCT | Voltage |
|---|
Dimensions
(For the selected size)Highlights & Features
The surface puck that hits 103 lm/W at 0.79″ deep.
Driverless · 5-CCT · edge-lit PMMA · 90+ CRI · round + square · IP44 · CA compliance. 1-Pin sensor: §5.
constNT & Total Adaptive contrLS
The only puck on the market with a 1-Pin Bi-Level Sensor port.
1-Pin Plug-n-Play port on the 7″ + 9″ housings — snap in LDLL-E2/MSP/W bi-level sensor with no electrician and no separate switch leg. Step up to the broader contrLS by CS Bluetooth-Mesh ladder when the project goes networked, or add constNT Mid-Power J-Box Quick-Install emergency egress in a single trip up the ladder. Three platforms, one fixture.

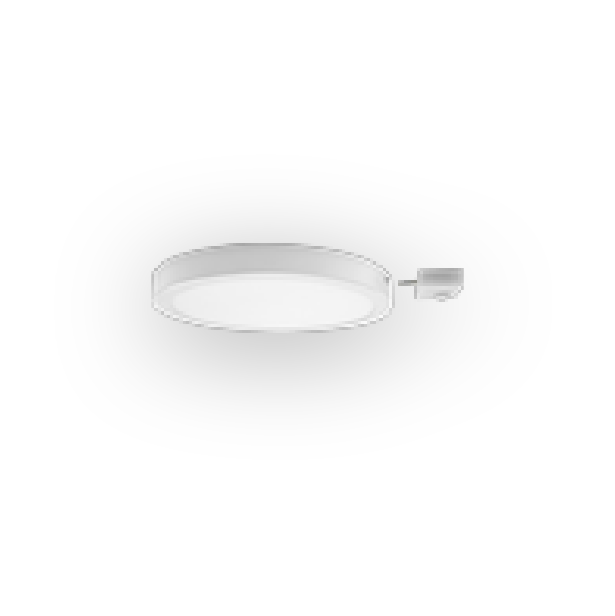

Eclipse-II's 7″ and 9″ models include a dedicated 1-Pin port on the back housing. Snap in the LDLL-E2/MSP/W sensor module — PIR motion detection, bi-level operation (20% baseline → 100% on motion → time-out back to baseline). Title 24 §130.0(c) corridor compliance with no electrician, no separate switch leg, no line-voltage retrofit. The single-product solution to the most-cited California corridor code requirement. (5″ / 11″ / 13″ pair with the contrⒶLS by ⒶCS sensors on the next tab.)
See all controls & accessories →Photometric Distribution
Wide-flood 120° beam from the edge-lit PMMA optic.
Edge-Lit Technology delivers an even, glare-free distribution — one beam shape, twenty-five lumen cells (five sizes × five CCTs). Pick the size and CCT below; peak candela, total lumens, and the IES filename update with the selection. Every plot below is rendered from the real LM-79 IES file for that cell — tested by EVERFINE on a GO-2000B goniophotometer, both C0–C180 (solid red) and C90–C270 (dashed) planes plotted to confirm axial symmetry.
LDLL0918-E2-4000K.IES
The Eclipse-II ecosystem.

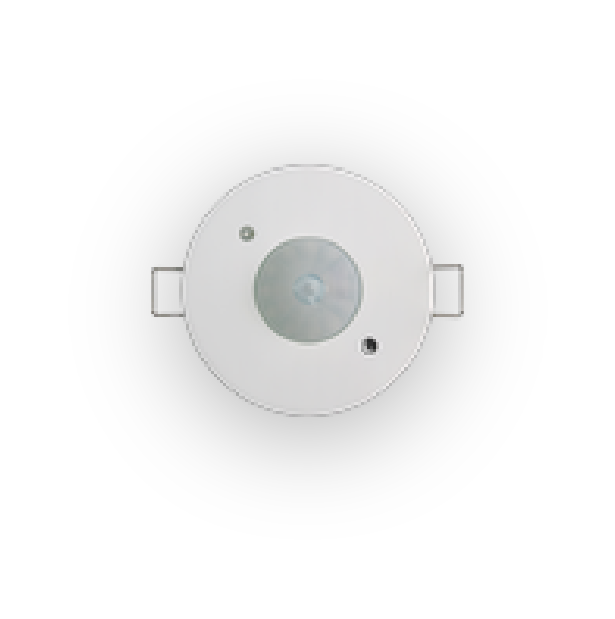

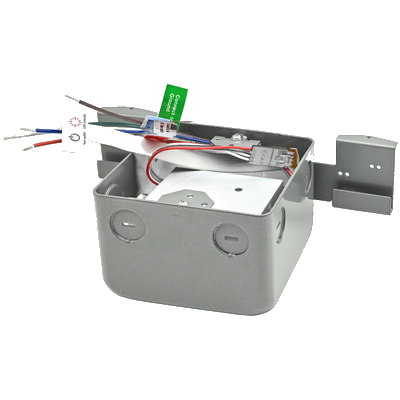

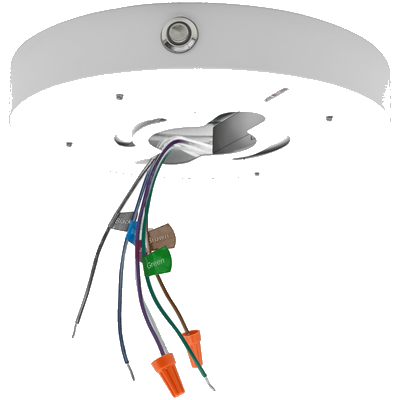

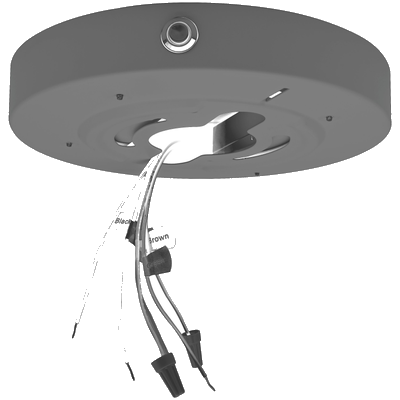

Six drop-in companions for the LDLL Eclipse-II — three platforms, one fixture. The Eclipse-II EXCLUSIVE LDLL-E2/MSP/W 1-Pin Plug-n-Play Bi-Level Sensor for Title 24 §130.0(c) corridor compliance. Two contrLS by CS Bluetooth-Mesh PIR sensors (8 FT in-unit · 40 FT high-bay). Three constNT Mid-Power J-Box Quick-Install emergency drivers (24W · 90 min · UL 924) covering universal and 6″-trim mounting. Every accessory ships with the same ETL / JA8 / Damp pedigree as the luminaire.
Configure Your Eclipse-II
Selections build the LDLL Eclipse-II SKU live. ★ default · QS QuickShip · MTO Made-to-Order · 5-CCT on dip (not SKU) · Square on 7″/9″/11″ only (MTO)
Documentation & Resources
Everything specifiers, contractors, and project managers need to spec, install, and certify the Eclipse-II — from the data sheet on day one to the IES files on the bid sheet to the warranty statement at closeout.
The full multi-fMILY collection.
Eclipse-II is one luminaire in a thirteen-product collection engineered specifically for multi-family residential — in-unit living, corridors, baths & wet locations, and common amenity zones. Same factory, same CS controls platform, same JA8 / Title-24 / Damp-Location pedigree across every tier. If Eclipse-II isn't the right fit for a given zone, one of these is.
For the whole property.

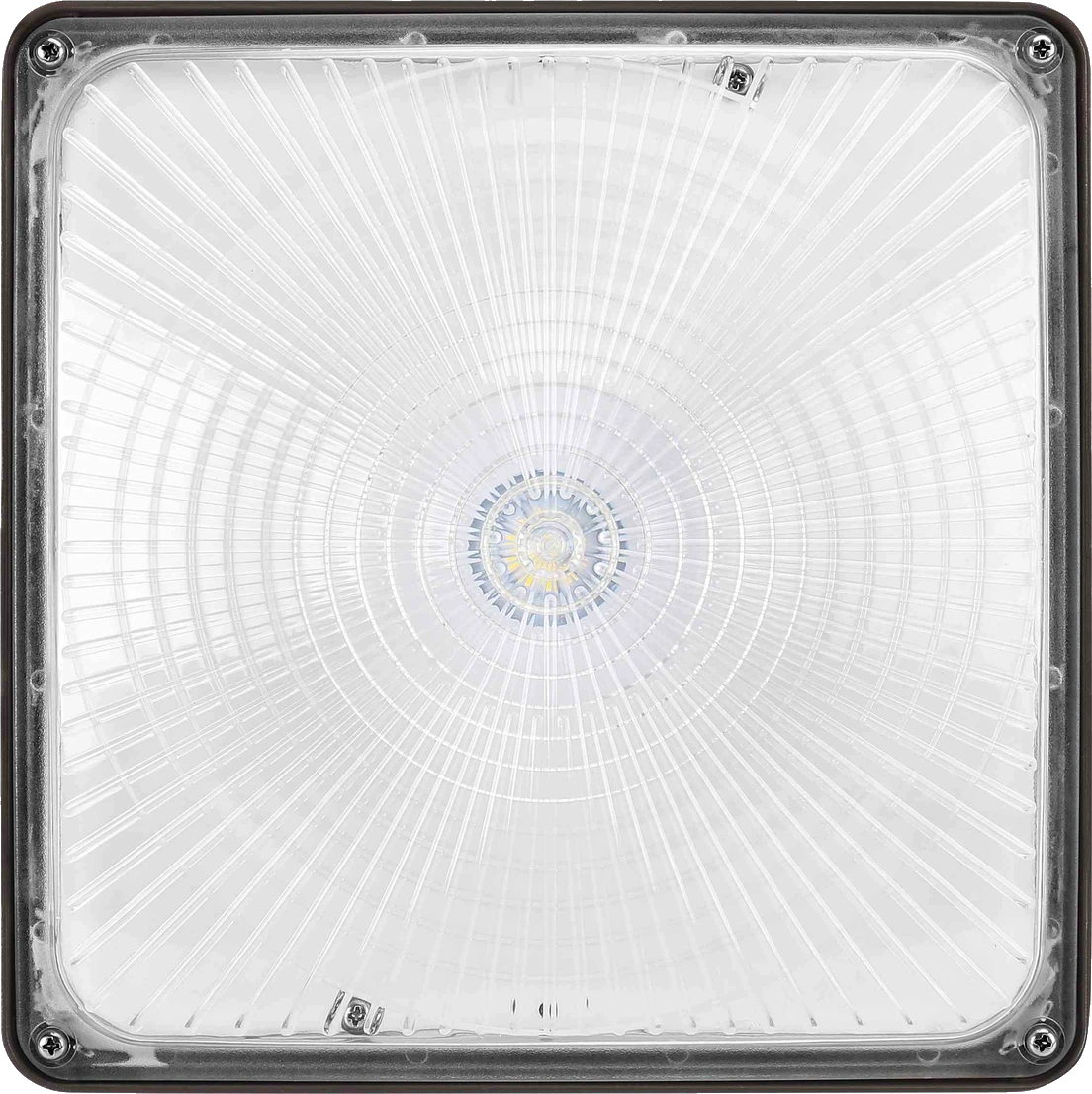

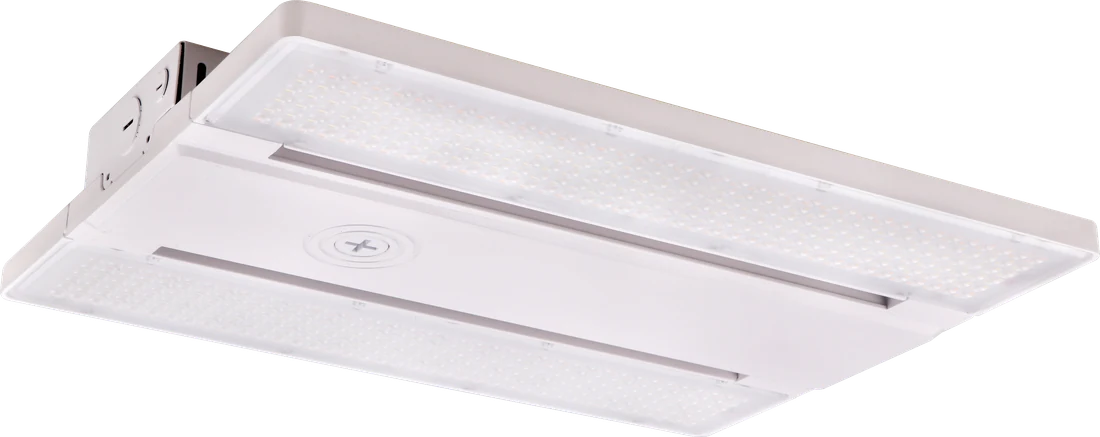

Eclipse-II handles in-unit, corridor, and amenity ceilings. These cross-line fixtures handle everything else on the property — parking lot, walkways, garage, leasing office — same CS controls platform, same factory, same warranty. Specify them together for a single-source multi-family package.
Built for turn-over speed.
Hundreds of thousands ship from five US warehouses — 2-3 day QS lead means a unit refurb between tenants doesn't wait on lighting. Layouts back in 48 hours, quotes and rebate matches reply same business day. 24-pack contractor cartons standard.
Stack the California rebates.
Eclipse-II is JA8-2022 listed and Title-24 Part 6 compliant — the hooks that unlock CalEnergyWise, PG&E / SCE / SDG&E utility rebates, and HUD multi-family programs. Typical offset on a property-wide retrofit: 20-50% of fixture cost. We'll match your APN and pull the paperwork.
