SERIES · VINTAGE DÉCOR · INDUSTRIAL REVIVAL

The Foundry Edison

The squirrel-cage filament drawn to look like 1908.

Multiple parallel LED-on-glass strands shaped into the cylindrical squirrel-cage geometry that defined Edison's 1880s carbon-filament lamps. Clear or amber glass, 2200K candle-hour CCT, and a filament that renders the second-half-of-evening register without the soot of the original. For restaurant pendant arrays, industrial revival lofts, and heritage hotel lobbies where the lamp is the architectural statement.

2.5–6.0W
Input wattage range: 280–550 lm
Lumen output: 2200K
Candle hour CCT: CRI 90+
Color fidelity

CRI 90+ UL LISTED CEC TITLE 24 JA8 DIMMABLE TO 5%

SPECIFY THIS LAMP REQUEST SAMPLE DOCUMENTATION ↓

WHERE THE FOUNDRY BELONGS

Three install registers. One lamp.

RESTAURANT · BARE-BULB PENDANT

The tubular lamp on its own cord.

Restaurant pendant arrays. Speakeasy and craft-cocktail bars. Coffee-shop ambient overheads. Clear glass shows the filament; 2200K CCT renders skin tones in the second-half-of-evening register without the soot of the original lamp.

INDUSTRIAL REVIVAL · LOFT & TAPROOM

The lamp that earns the building.

Converted warehouse lofts, craft taprooms, maker-space studios. The squirrel-cage filament is the architectural detail — the lamp is the reason to leave the bulb exposed. Amber glass deepens the industrial register.

HOSPITALITY · HERITAGE BUILDINGS

200 lamps. One historical reference.

Boutique hotels in pre-war buildings, restored grand hotels, restaurants in heritage interiors. Heritage binning kits ship 3-step MacAdam matched samples for the lobby chandelier where the period accuracy matters.

FILAMENT TECHNOLOGY · SQUIRREL-CAGE GEOMETRY

A filament drawn to look like 1908. Behavior tuned to 2026.

Multiple parallel LED-on-glass strands shaped into the cylindrical squirrel-cage geometry that defined Edison's 1880s carbon-filament lamps. The strands sit in clear or amber glass; the cage structure is visible at every install register. Operationally: 25,000-hour life, full TRIAC and ELV dimming, 70% energy reduction over the carbon-filament originals these lamps were built to evoke.

— PARALLEL CAGE

Six to eight LED strands arranged in a cylindrical pattern matching the original squirrel-cage carbon-filament dimensions. Visible at every viewing angle.

— COLOR REGISTER

2200K candle-hour CCT renders amber-warm without the sooty cast of older "warm white" LEDs. Intentional approximation of the candle-to-Edison transition register.

— HISTORICAL REFERENCE

Filament geometry documented against pre-1940 lamp catalogs and restoration architect references. ST19 envelope dimensions match originals to within 1mm.

FULL SPECIFICATIONS

Spec sheet for the lamp · restoration-grade detail.

Color & Filament

CCT: 2200K (candle-hour) · 2700K (on select JA8 variants)
CRI: ≥90
Filament geometry: Squirrel-cage · cylindrical · 6–8 parallel strands

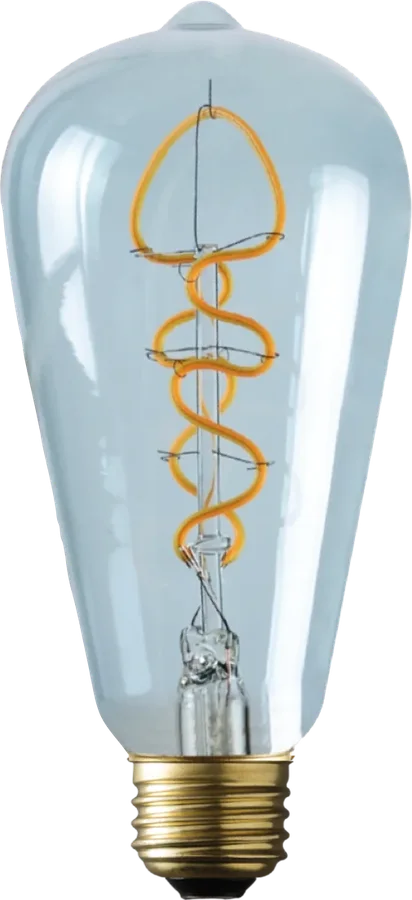

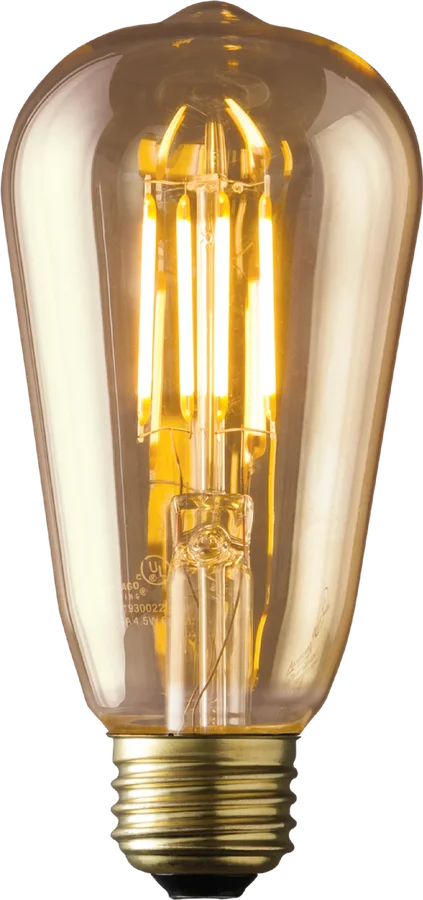

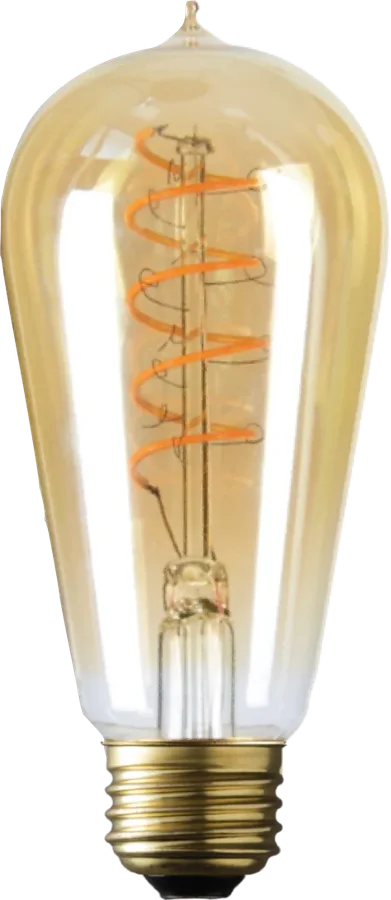

Glass finish: Clear (C) Amber (V · X) Smoked (M)
Envelope: ST19 (60mm) · ST21 (67mm)

Electrical

Input voltage: 120V AC · 60Hz
Wattage range: 2.5W – 6.0W (per SKU)
Lumen output: 200 – 550 lm (per SKU)
L70 life: 25,000 hours

Dimming & Controls

Dimming types: TRIAC · ELV · CL
Dim-to: 5% (smooth, flicker-free)
Compatible systems: Lutron · Leviton · Legrand · Forbes & Lomax · Cooper

Materials & Finish

Base: E26 medium screw base
Filament suffix: SV (Spiral Vertical) · SC (Squirrel Cage) · SH (Spiral Horizontal) · LT (long-tip)
MOL (ST19): ~4.8" (122mm)
MOL (ST21): ~5.3" (135mm)

Compliance & Warranty

Safety: UL Listed · UL Enclosed Rated · Wet Location rated (per datasheet)
Energy code: CEC Title 24 JA8-2022-E · T20 (on JA8 variants)
EMC: FCC Part 15 Class B
Warranty: 3 years / 25,000 hours
RoHS · REACH: Compliant

DIMMER COMPATIBILITY

The Nostalgic & Vintage GEN-2 dimmer list.

Tested and confirmed on the following control systems. All pass at 5% minimum dim level with no flicker, buzz, or pop-on.

MODEL	BRAND	TYPE	PASS	SERIES
TGCL-153P	Lutron	CL (TRIAC)	✓	Toggler · neutral required
SCL-153P	Lutron	CL (TRIAC)	✓	Skylark · neutral required
DVCL-153P	Lutron	CL	✓	Diva CL · neutral required
LGCL-153P	Lutron	CL	✓	Lyneo
MACL-153M	Lutron	CL	✓	Maestro CL multi-location
PD-6WCL	Lutron	Caseta wireless	✓	Smart-home compatible
AY-600P	Lutron	Incandescent / TRIAC	✓	Ariadni
D-600P	Lutron	Incandescent / TRIAC	✓	Diva
GL-600P	Lutron	Incandescent / TRIAC	✓	Glyder
S-600P	Lutron	Incandescent / TRIAC	✓	Skylark
DV-600P	Lutron	Incandescent / TRIAC	✓	Diva (legacy)
SELV-300P	Lutron	ELV	✓	Skylark ELV
DVELV-300P	Lutron	ELV	✓	Diva ELV
NTELV-500	Lutron	ELV	✓	Nova T ELV
RRD-6NA	Lutron	RadioRA 2	✓	Whole-home wireless
MRF-2-6ELV-120	Lutron	RadioRA 2 ELV	✓	Whole-home wireless ELV
HQRD-6NA	Lutron	HomeWorks QS	✓	Estate-grade
DSL06-1LZ	Leviton	CL	✓	Decora Sureslide CL
HCL45-3PW	Legrand	CL	✓	radiant CL
FLR603P	Forbes & Lomax	TRIAC	✓	Designer rotary
FLRLV603P	Forbes & Lomax	ELV	✓	Designer rotary ELV
DAL06P	Cooper	CL	✓	Aspire

▸ MATRIX UPDATED 2026.Q2 · SUBMIT YOUR CONTROL FOR TESTING

— HERITAGE BINNING KIT

For the restoration that requires the right lamp, not just any lamp.

Heritage binning kits ship 50 lamps from the same production run with verified 3-step MacAdam consistency and matching squirrel-cage filament geometry. For restoration architects specifying 200+ lamps in a single heritage interior — the lobby chandelier, the corridor sconces, the bar pendants — where period accuracy and visual consistency across the entire space are non-negotiable.

ORDERABLE VARIANTS

Ten datasheet variants. Two envelopes (ST19 · ST21). Five filament suffixes.

All E26 medium-base. Amber and Clear glass options. Standard-warranty 3-year / 25,000-hour rated life per datasheet. JA8-2022-E and T20-compliant variants available where required.

SKU	FINISH / ENVELOPE	BASE	WATTS	EQ.	LUMENS	CCT	CRI	CERT
LTST19V20022MB	Amber · ST19 envelope	E26	2.5W	25W	200	2200K	90+	—
LTST19V40022MB	Amber · ST19 envelope	E26	4.0W	40W	280	2200K	90+	—
LTST19V40022MB/JA8	Amber · ST19 · Spiral	E26	4.0W	40W	280	2200K	90+	JA8 · T20
LTST19C40027MB/JA8	Clear · ST19 · Spiral	E26	4.0W	40W	280	2700K	90+	JA8 · T20
LTST19V60022MB	Amber · ST19 envelope	E26	6.0W	60W	550	2200K	90+	—
LTST19V60022MB/JA8	Amber · ST19 · Spiral	E26	6.0W	60W	550	2200K	90+	JA8 · T20
LTST21V20022MB	Amber · ST21 envelope	E26	3.5W	40W	200	2200K	90+	—
LTST21V40022MB/JA8	Amber · ST21 · Spiral	E26	4.0W	60W	400	2200K	90+	JA8 · T20
LTST21C40027MB/JA8	Clear · ST21 · Spiral	E26	4.0W	60W	400	2700K	90+	JA8 · T20
