LY-T10 ECO

Slimline T10. No mercury. Drops into the socket you have.

LY-T10 is the LED replacement for the slimline fluorescent T10 lamps that have illuminated internally-lit street name signs and backlit advertising cabinets for the last 50 years. Most "T10 LED" retrofits in the market are T8 lamps with adapters; LY-T10 ships the actual single-pin slimline T10 form factor — drops directly into the historical sign-fixture socket without adapters or housing modification. Three lengths cover the entire municipal sign-cabinet matrix. 100 lm/W constant. ETL US/C cross-border listed. No mercury. 5-year warranty.

Wattage: 32W / 38W / 44W Lumens: 3,200 / 3,800 / 4,400 lm Efficacy: 100 lm/W constant

Ideal Applications

Street Signs

Advertising Media

Bus Shelters

Transit Stations

TRUE T10 SLIMLINE

3-LENGTH LINEUP

80% ENERGY SAVING

50K-HR LIFE

NO MERCURY

LY-T10 LED Slimline T10 Sign Lamp — full-length hero shot showing the linear T10 form factor and clear lens

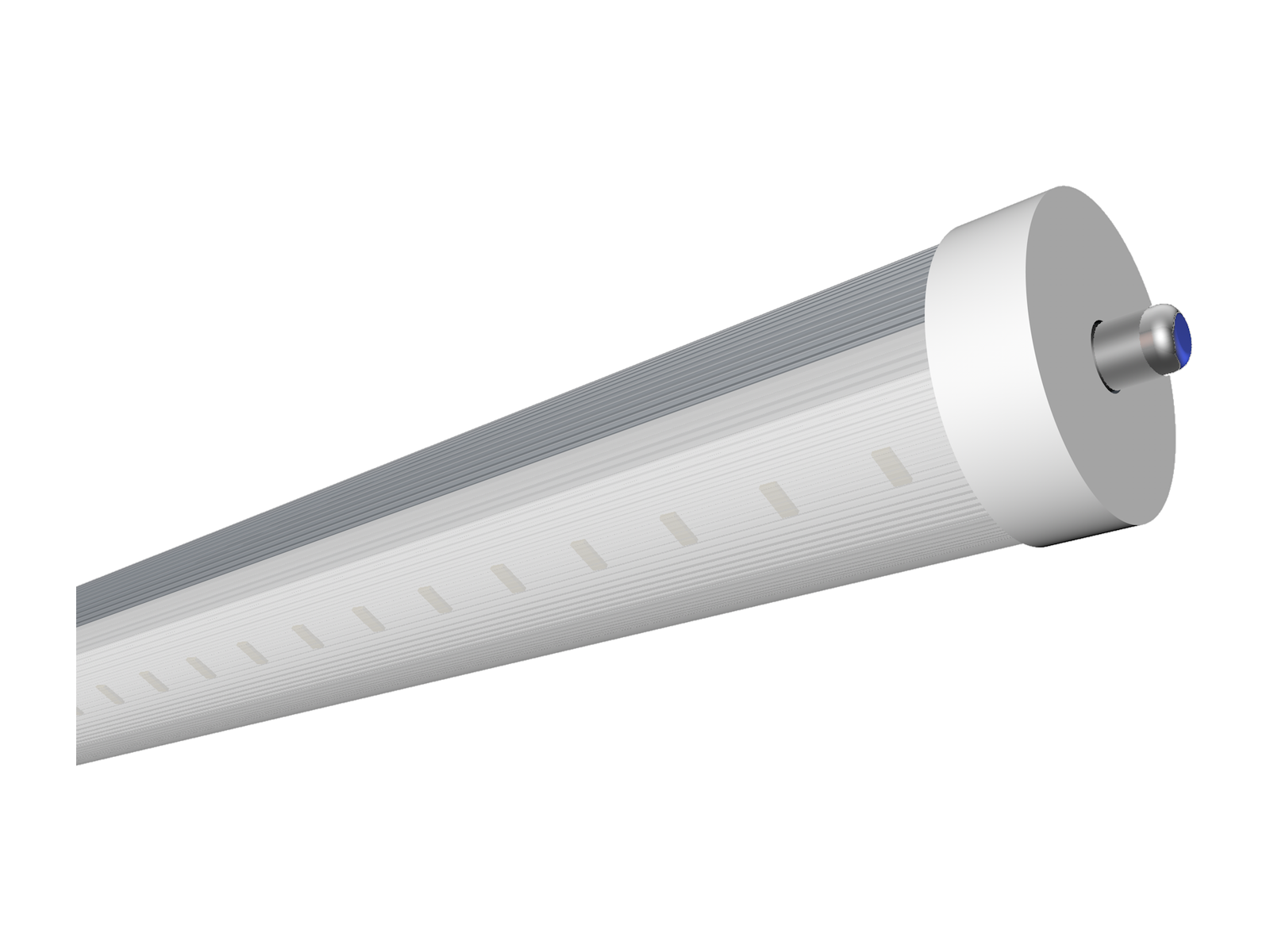

LY-T10 — close-up of the single-pin slimline base, the differentiator vs T8-with-adapter peer products

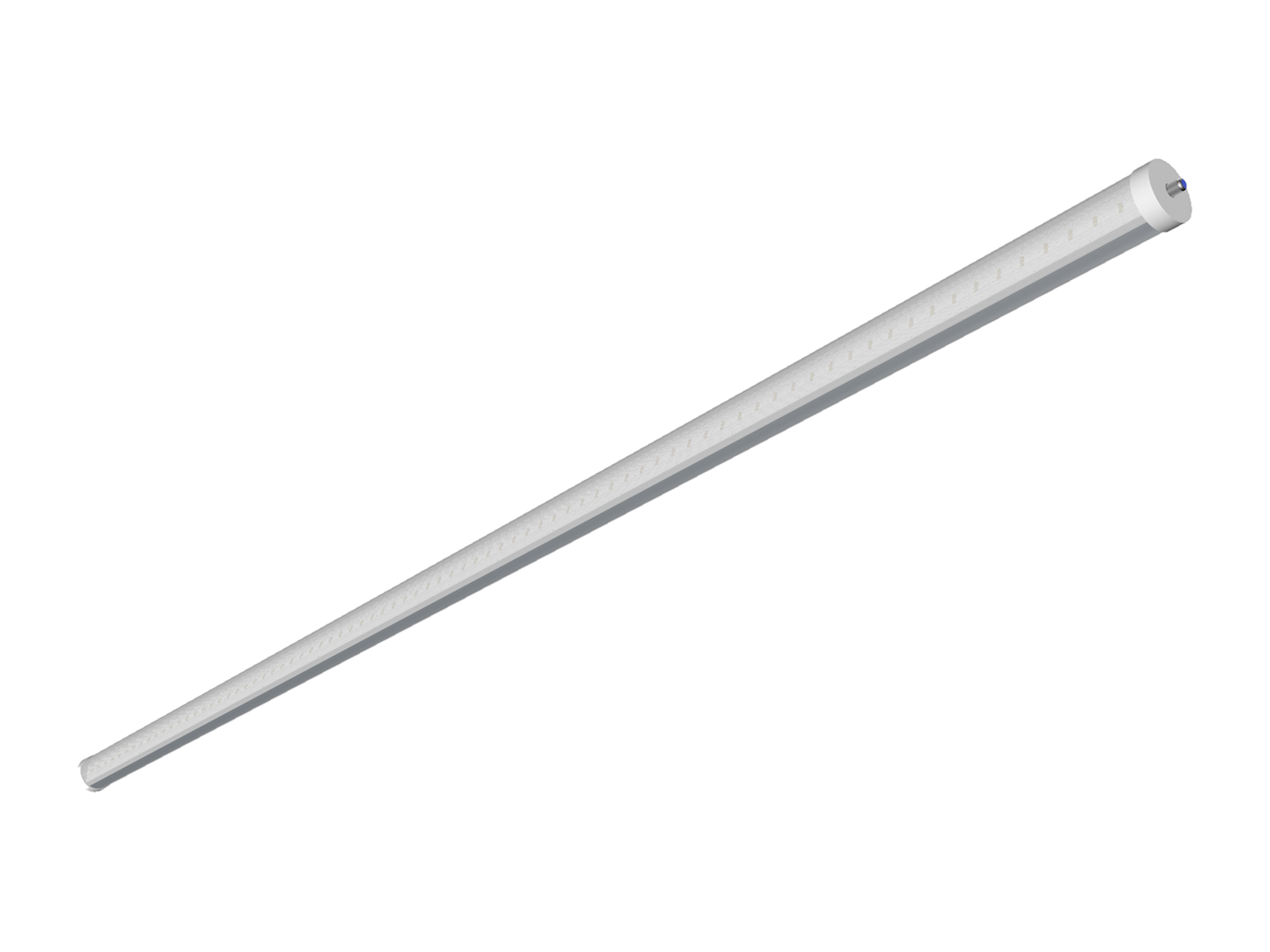

LY-T10 — angled view showing the LED array along the lamp length and the linear illumination character

LY-T10 — alternate angle showing the lamp body, base contact end, and the 1.25 inch tube diameter

Slide 05 / 05

[ AI-generated · awaiting asset ]

Internally-lit street name sign at dusk · LY-T10 illuminating the cabinet from inside · white reflective text crisp and legible

ETL US/C

RoHS

No Mercury

Model Specifications

Download Data Sheet

Application

Sign Cabinet · Backlit Media

Bulb Base

Single-Pin Slimline ★

Med BiPin (avail.)

HO (avail.)

Light Distribution

360° · Omni-Directional · matches fluorescent T10 character

Operating Voltage

120-277V Universal · cross-cabinet voltage

Warranty

5 yr · 50k hr 12 yr at 11-hr nightly burn

Watt	Lumens	Efficacy	CCT	Voltage

★ Default ship configuration · 6ft is the volume center for typical municipal sign cabinets. All three SKUs share 100 lm/W constant efficacy · 50,000-hr life · 4100K standard (5000K available) · ETL US/C cross-border listing · 5-year warranty · No mercury (RoHS · meets state-level fluorescent-phaseout mandates).

Dimensions

(For the selected size)

Highlights & Features

The slimline T10 LED retrofit that actually fits the sign cabinet you already have.

Seven highlights anchored to one authenticity — true single-pin slimline T10, not a T8-with-adapter. Three lengths · 100 lm/W constant · no mercury · ETL US/C · 5-year warranty.

Side-by-side comparison: LY-T10 true single-pin slimline T10 base on the left vs a T8-with-adapter peer product on the right · annotated to call out which one drops directly into the historical sign-fixture socket

— Hero Highlight

The Actual T10. Not a T8 with Adapters.

Most "T10 LED replacements" on the market are T8 lamps with adapter sleeves or R17d/HO double-ended lamps for legacy fixtures. LY-T10 ships the actual slimline T10 single-pin form factor that matches the historical sign-fixture socket. Drops directly in. No adapter sleeves to lose, no ballast bypass orchestration, no housing modification. The lamp the sign cabinet was originally designed for — just LED.

Three LY-T10 lamps laid out vertically: 4ft 32W on top, 6ft 38W in middle (default), 8ft 44W on bottom · labeled with their SKU codes and lumen output

3-SKU Lineup

One Family. Every Sign Cabinet.

4ft / 6ft / 8ft. Three discrete lengths covering 100% of the historical municipal sign-cabinet matrix. Specifiers know what to bid; distributors know what to stock; municipal procurement teams write one PO. No 50-SKU sprawl, no length-by-length supplier hunt, no special-order weeks.

Lumens-per-watt visualization: three horizontal bars labeled 4ft/6ft/8ft, each showing exactly 100 lm/W with the same fill ratio · clean spec-line consistency

Spec-Line Consistency

100 lm/W. Every Length.

3,200 lm at 32W · 3,800 lm at 38W · 4,400 lm at 44W. The math is identical: 100 lumens per watt across all three SKUs. No length-driven efficacy fall-off, no spec sheet caveats, no engineering judgment about which size delivers the best lm/W. Spec-line consistency a procurement team can trust on every project.

5-year payback math visualization: a typical 500-sign municipal fleet · annual maintenance cost graph showing the LED switch eliminating 80% of energy cost and 4× extending lamp life · payback line crossing at year 5

Maintenance Math

5-Year Payback for the Typical Fleet.

Original fluorescent T10 slimline = ~10,000 hours and 60-100W. LED retrofit at 50,000 hours and 32-44W collapses the operational cost. For a typical 500-sign municipal fleet, the math works out to a 5-year payback — just from energy + lamp replacement labor. Bucket-truck rolls drop by 4×. Annual replacement-lamp budget drops by 80%.

Phaseout-Compliant

No Mercury. ETL US/C Cross-Border.

Fluorescent T10 slimline contains mercury — requires hazmat disposal, falls under state-level fluorescent-phaseout mandates (CA · WA · NY · CT and growing). LY-T10 is RoHS-compliant with zero mercury. ETL US/C cross-border listing means cross-border DOT projects don't need separate Canadian listing or paperwork.

Three lamp-base detail shots side by side: Single-Pin Slimline (default · standard sign socket) · Med BiPin (legacy T8/T12 socket retrofit) · HO double-ended (high-output sign cabinet retrofit)

Three Base Options

Every Legacy Socket Type.

Single-Pin Slimline (default · the standard slimline sign-cabinet socket) · Med BiPin (legacy T8/T12 fixtures) · HO double-ended (high-output sign cabinets). Three base options cover virtually every fluorescent sign-fixture socket type that's been deployed in the last 50 years. Order the right base for the cabinet you have.

50,000-hour life chart with 11-hour nightly burn baseline · 5-year warranty seal overlay · year-by-year operational timeline showing 12+ years of dusk-to-dawn service

12 Years of Dusk-to-Dawn

5-Year Warranty · 50,000-Hour Life.

50,000 hours = 12+ years at typical 11-hour nightly dusk-to-dawn burn cycles. 5-year warranty backstops it. Most fluorescent T10 peers offered 1-2 year warranties. Most commodity LED retrofit peers offer 3-year warranties. Five years is the right honest number for the form factor.

Engineering · Anatomy

Six details that make this the slimline T10 spec engineers actually want.

Single-pin slimline base on one end. Linear T10 tube body at 1.25" diameter. LED array along the lamp length under a clear lens. Universal voltage input on the contact end. ETL US/C label for cross-border DOT projects. Six engineered details delivered for one job: drop straight into the existing slimline fluorescent T10 socket on the existing voltage with no modification.

Anatomy callouts derived from the datasheet Product Features list and Product Specifications table. Single-pin slimline base is the technical authenticity that defines this product against the T8-with-adapter peer set. T10 = 1.25" tube diameter (vs T8 = 1.0" and T12 = 1.5") — standard slimline-fluorescent form factor preserved for true drop-in retrofit.

Build Your Model

Configure Your LY-T10

Every option below maps to the LY-T10 order code. Selections build the SKU live — no checkout, no surprises. Required fields marked with *. Greyed-out options are not selectable with your current configuration. See the legend in the Optional column for ★ / QS / MTO meanings.

0 of 2 required selected

Required

2 fields · all must be set

Length / Wattage*—

CCT*—

Optional

0 add-ons · pick any combination

★Factory-default ship configuration

QuickShip · 3-5 day lead

Made-to-Order · 4-6 week lead

Estimates · not guarantees · subject to availability · confirm before committing.

Live Preview LY-T10 preview — full-length linear T10 lamp with single-pin slimline base

Resolved SKU

LY-T10[L1200-32W|L1800-38W|L2400-44W][-50K]

— deriving ship tier —

Max Lumens

—

Efficacy

—

CCT

—

Voltage

—

Optic · Beam

—

Peak Intensity

—

Finish

—

Compliance

ETL US/C · RoHS · No Mercury · 5-yr/50k-hr

Configuration incomplete. Resolve all 7 required fields to unlock pricing & submittal generation.

Pricing & Availability Generate Submittal PDF Request a Layout

Round Out the Project

For the complete venue.

LY-T10 handles the street name signs and backlit advertising. These cross-line fixtures handle everything else — same warranty platform, same factory. Specify them together for a coherent ALG package across the whole intersection.

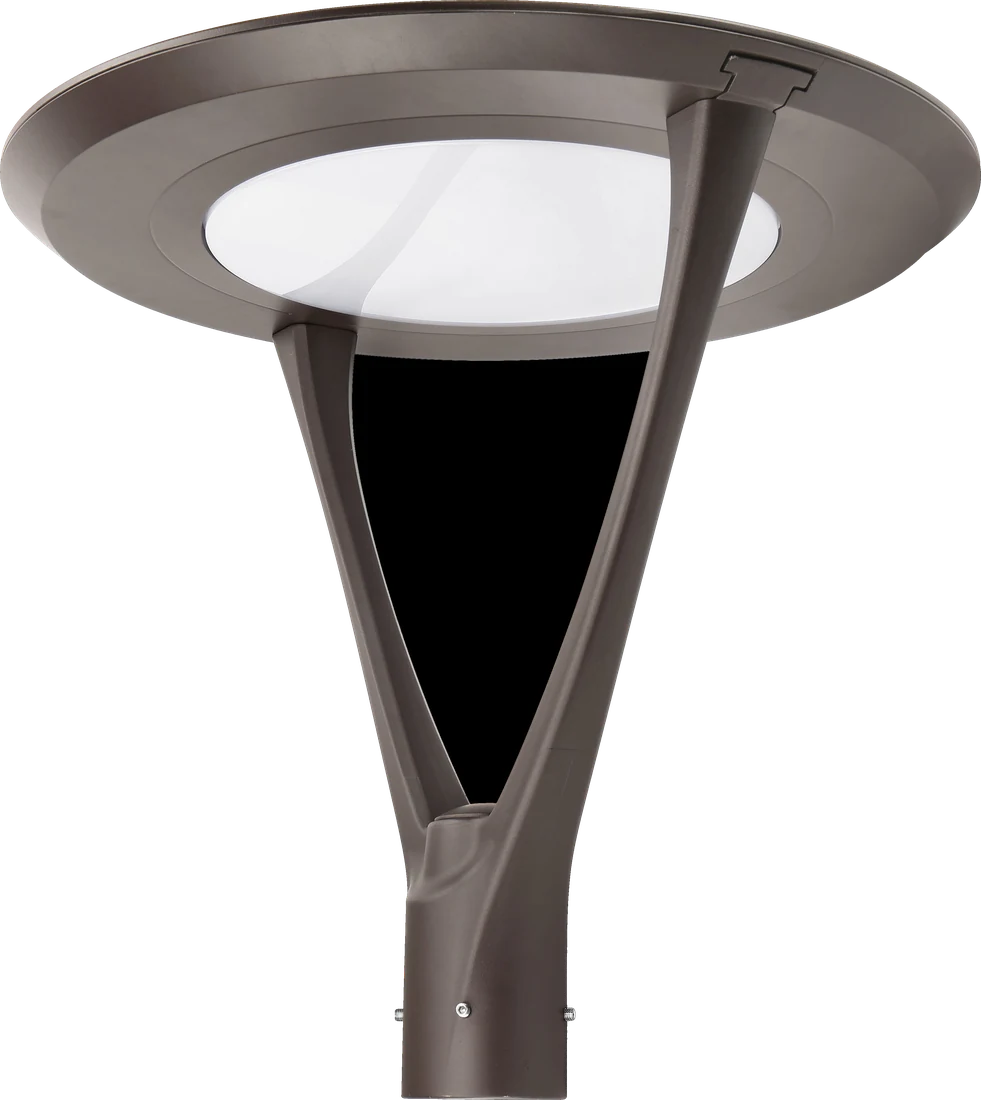

CITYRCH

Post-Top · PRO+

Symmetry

Spec-grade post-top for civic plazas, walkways, and campus paths bordering the field. SimplySNAP-ready, BeamLogic optic system.

4,000-16,000 lm · IP66 · NEMA II/III/V

View product →

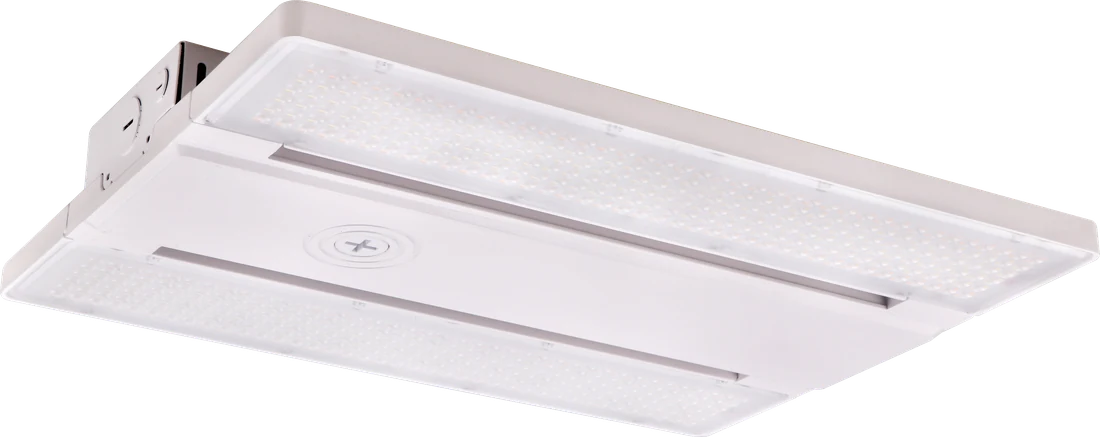

LAMPARRCH

Linear High-Bay · PRO

Titan

For interior spaces in the traffic-control building or sign-maintenance facility adjacent to the intersection. Same warranty platform, same factory.

12,000-30,000 lm · IP65 · 5-year warranty

Spec-grade panel for locker rooms, training centers, press boxes, and admin offices in the same building. CCT-select + step-dim ready.

4,000-7,200 lm · 2×2 / 2×4 / 1×4 · cULus Listed

View product →

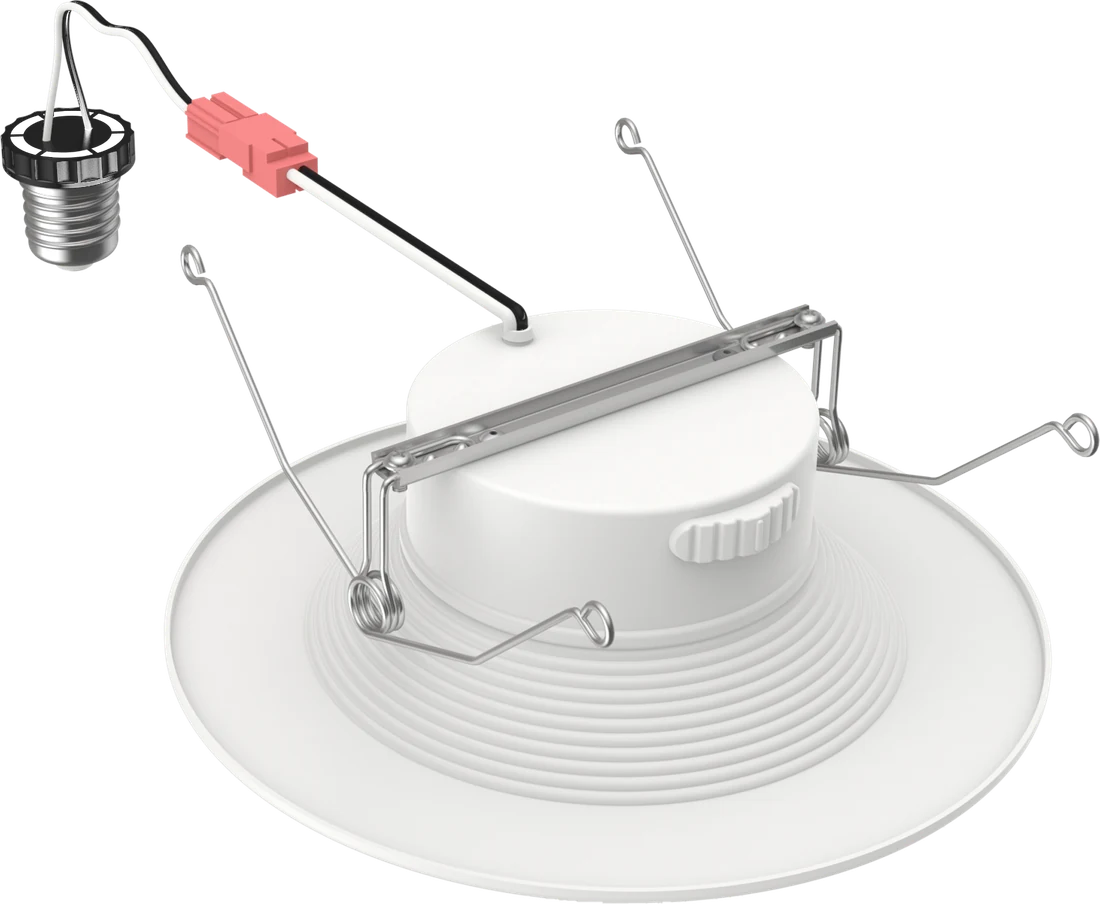

MULTI-FMILY

Downlight · Easy-Upgrade

Nebula-II

For concourse areas, restrooms, hallways, and ticket booths. Easy-upgrade housing, retrofit-friendly, same SimplySNAP mesh.

800-2,200 lm · 4" / 6" / 8" · IC-rated

View product →

Specifier Support

Direct line to your regional rep.

Five US warehouses ship in 3-5 days. Layout requests come back inside 48 hours. Quotes, sample requests, and rebate matches reply same business day. No portal-as-the-only-channel: you get a person.

US Warehouses

48 hr

Layout SLA

Same-Day

Quote Reply

Find a Rep Contact Sales

Single-Source Procurement

One PO. The whole signalized intersection.

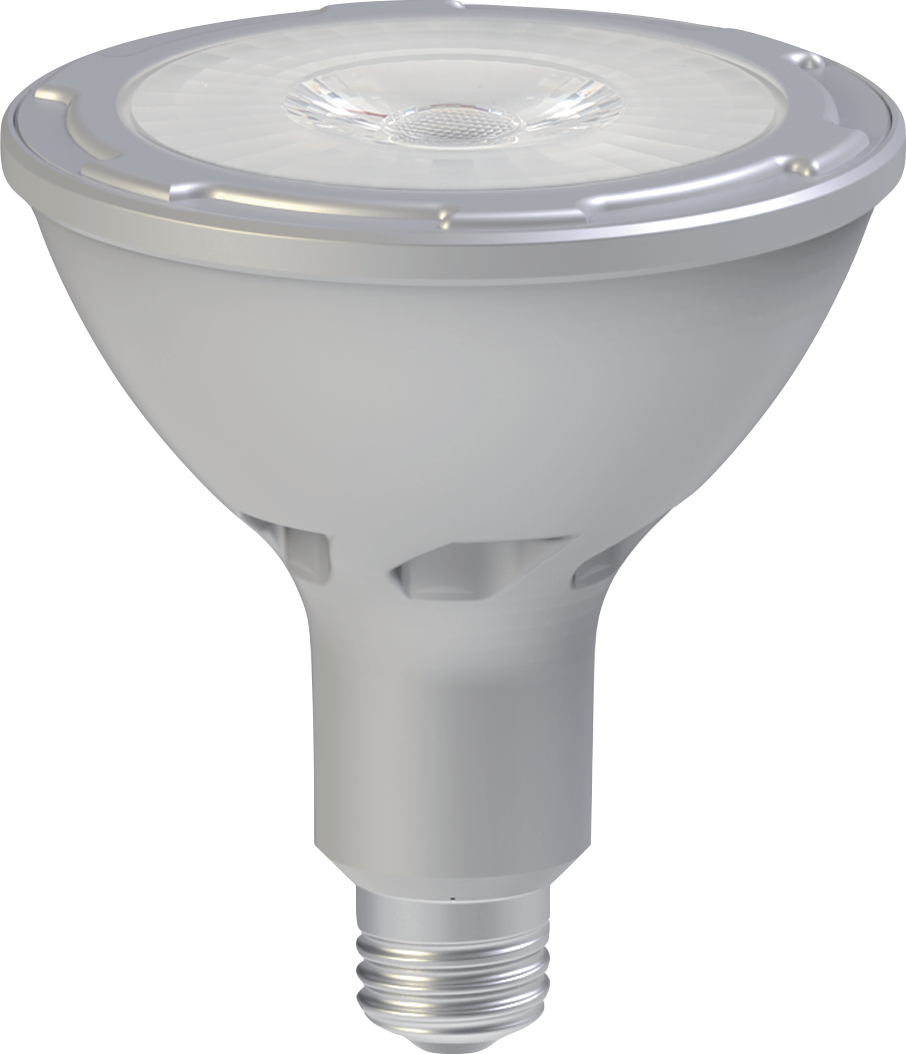

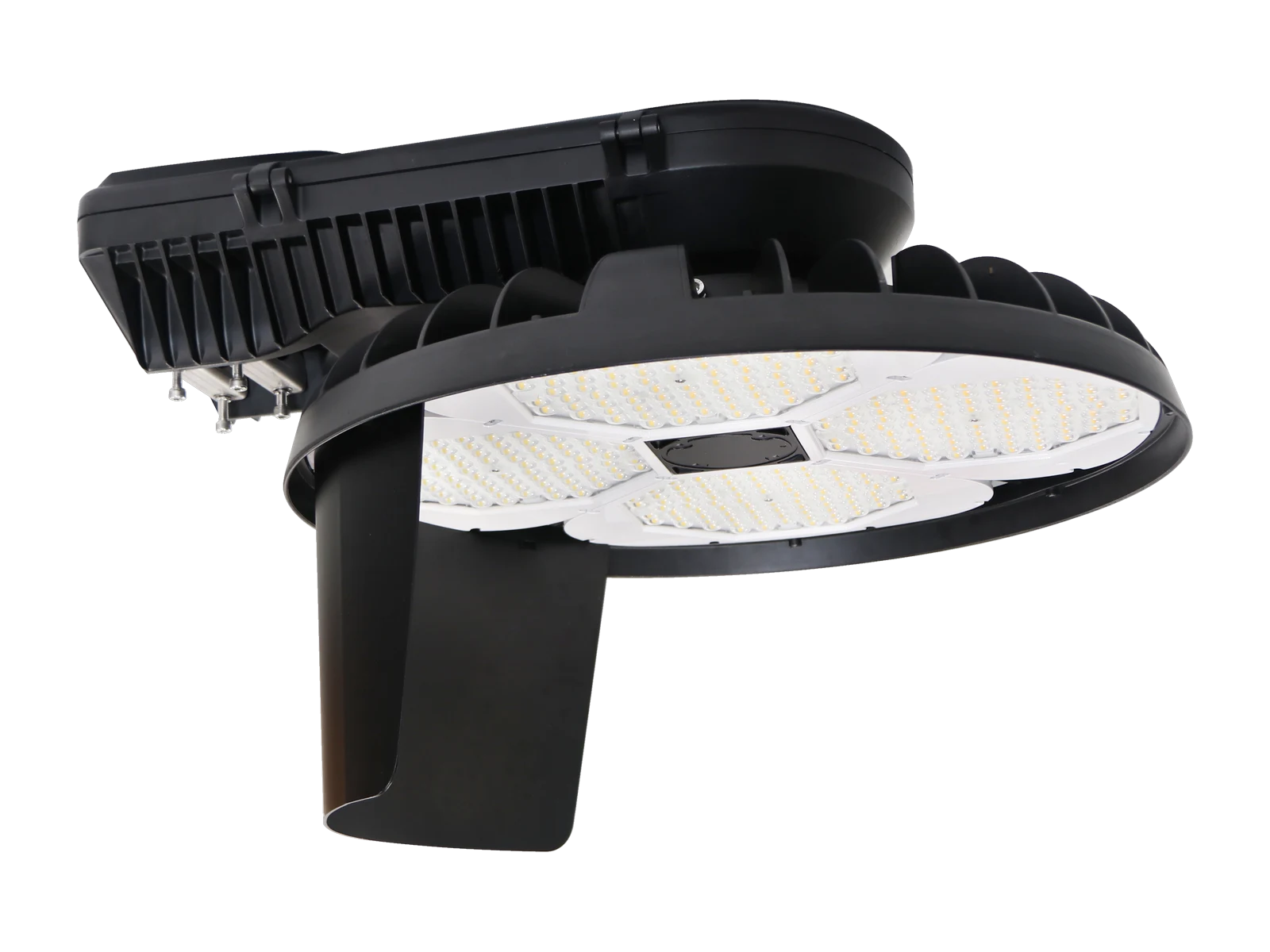

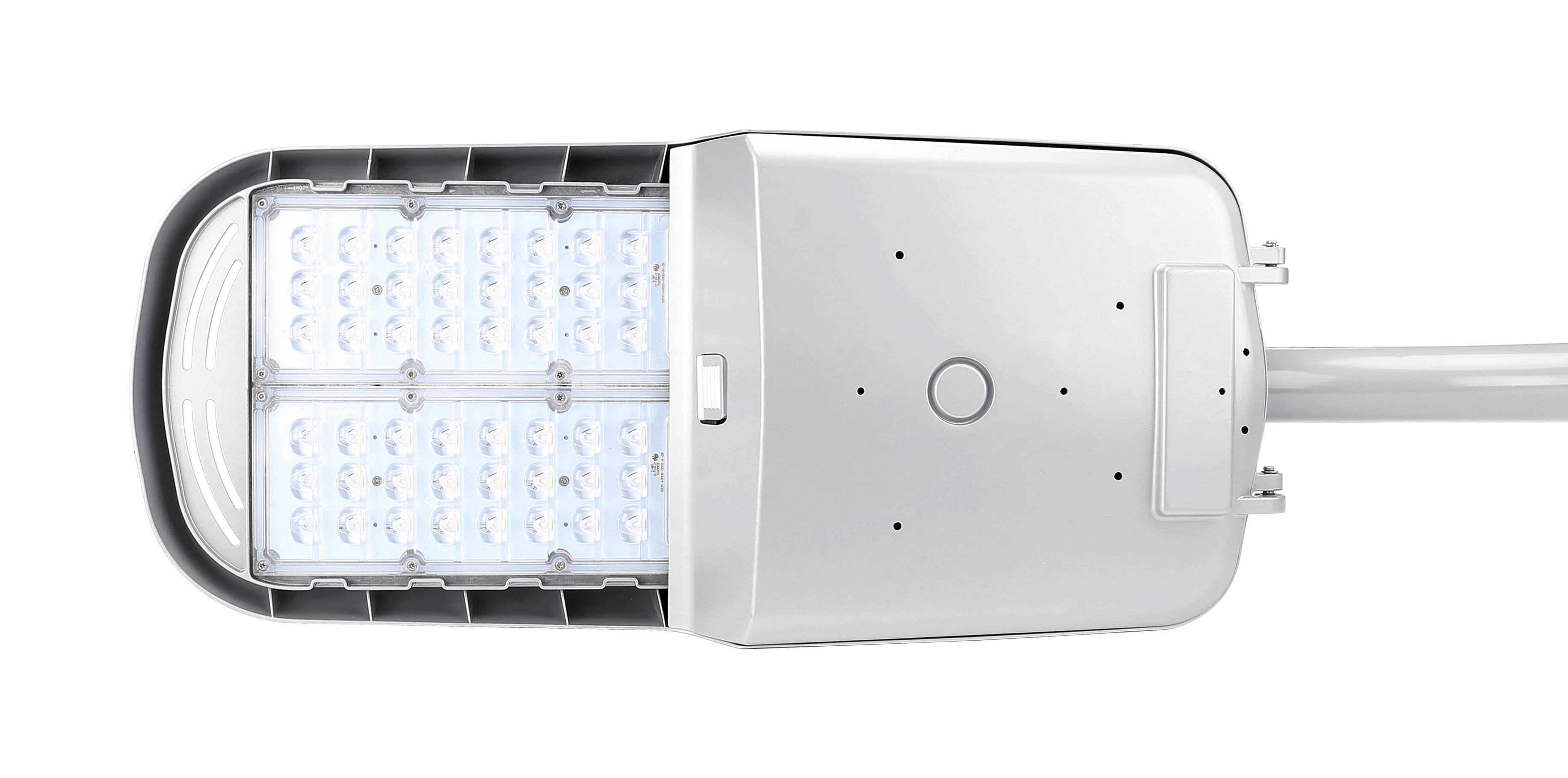

LY-T10 ships ETL US/C cross-border listed — qualifying for utility rebate programs that supports cross-border DOT projects (US + Canada) without separate listing paperwork. Pair with LPAR (EVP confirm beacon), Abbey (roadway cobra-head), and OmniMax (high mast) on the same municipal PO. One inventory line for the cityⒶRCH outdoor portfolio reduces procurement complexity by an order of magnitude across a multi-intersection contract.
