LPTP · Symmetry PRO

Three distributions. One optic. Pick at install.

Specification-grade LED post-top for the cityⒶRCH LPTP family — pedestrian streetscapes, plazas, and parks. Three field-set dials at install · 4-WATTSELECT (36–160W) × 3-CCTSELECT × BeamLogic™ T3/T4/T5 via OpticⒶDAPT. Up to 197 lm/W · up to 25,500 lm · CRI ≥80. Five mount types · contrⒶLS-Ready SILVAIR mesh. TAA · UL Wet Loc · 7-yr / 75,000-hr warranty.

Input Watts: 36 – 160W Lumens: Up to 25,500 lm Efficacy: 197 lm/W peak CRI: ≥80

Ideal Applications

Pathways

Greenbelts

Walkways

General Public

OPTICⒶDAPT

4-WATT × 3-CCT

197 lm/W · CRI ≥80

5-MOUNT · contrⒶLS

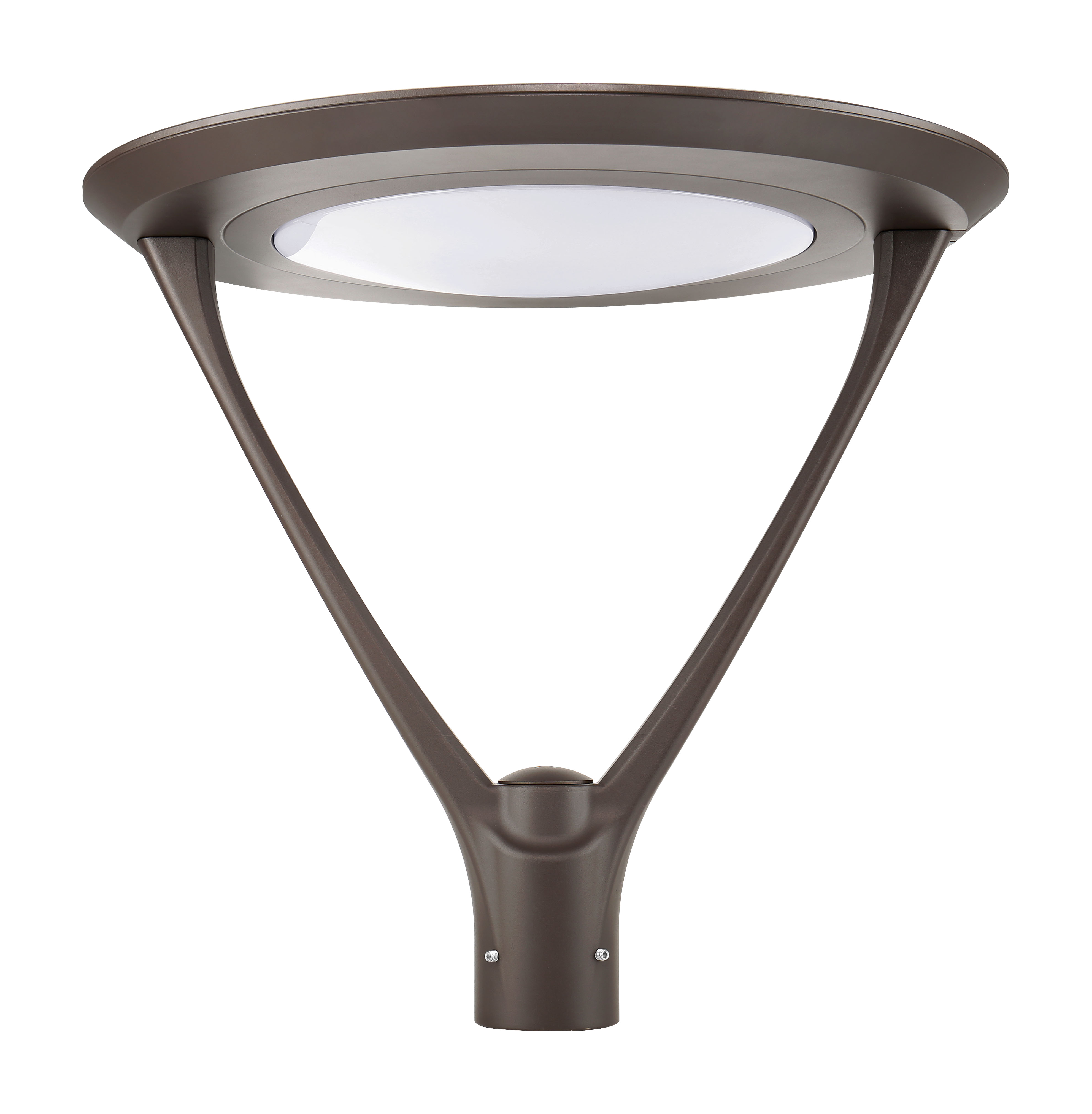

Symmetry-Series LPTP post-top luminaire — front-on studio view of the dark bronze die-cast aluminum housing with disc-shaped luminous lens, V-frame yoke, and 2-3/8-inch pole fitter. The mainline LPTP090/130/160 round-top cap configuration.

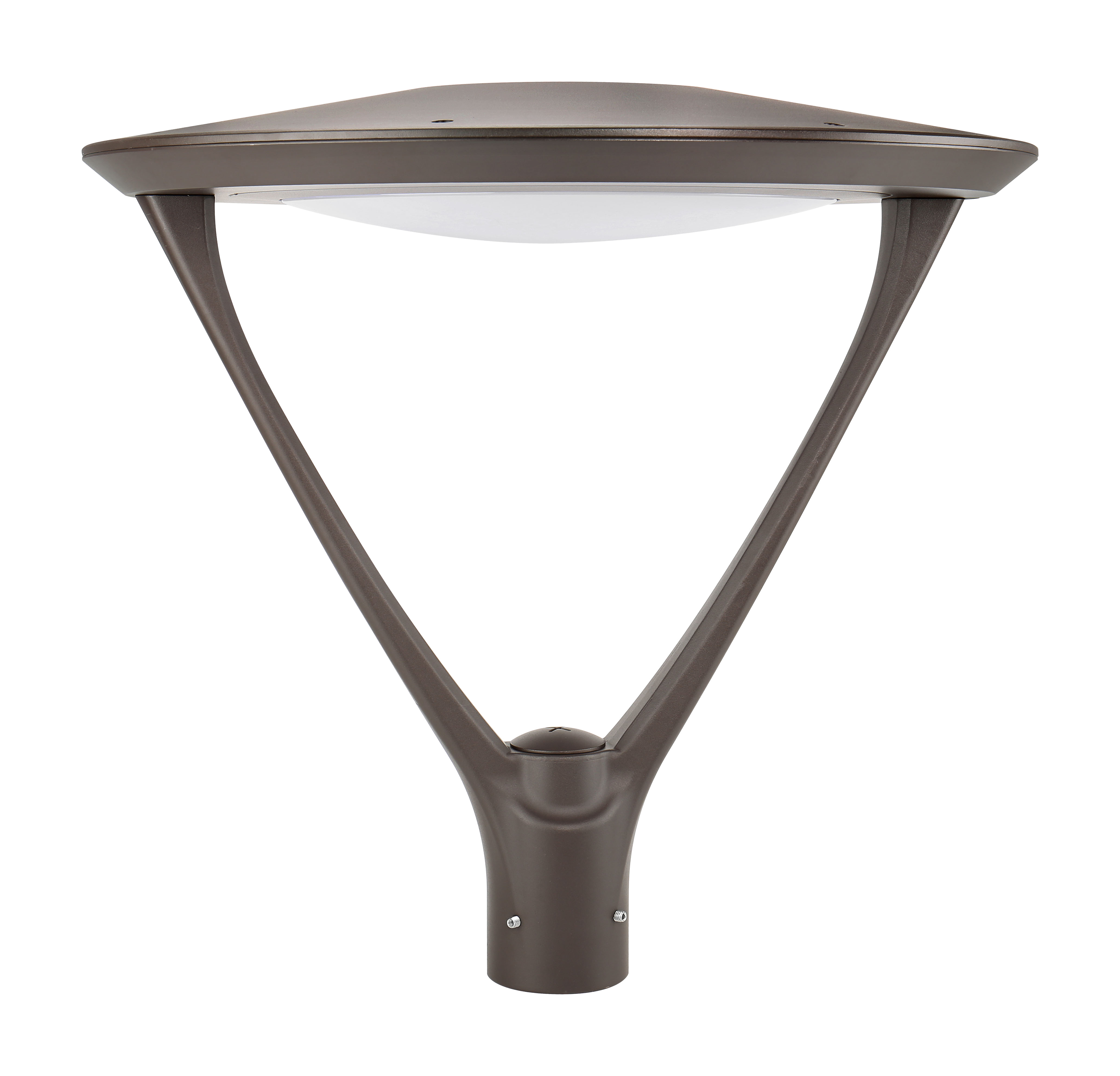

Symmetry-Series — square-cap cover variant with V-yoke, showing the configurable cap option alongside the mainline round-top design.

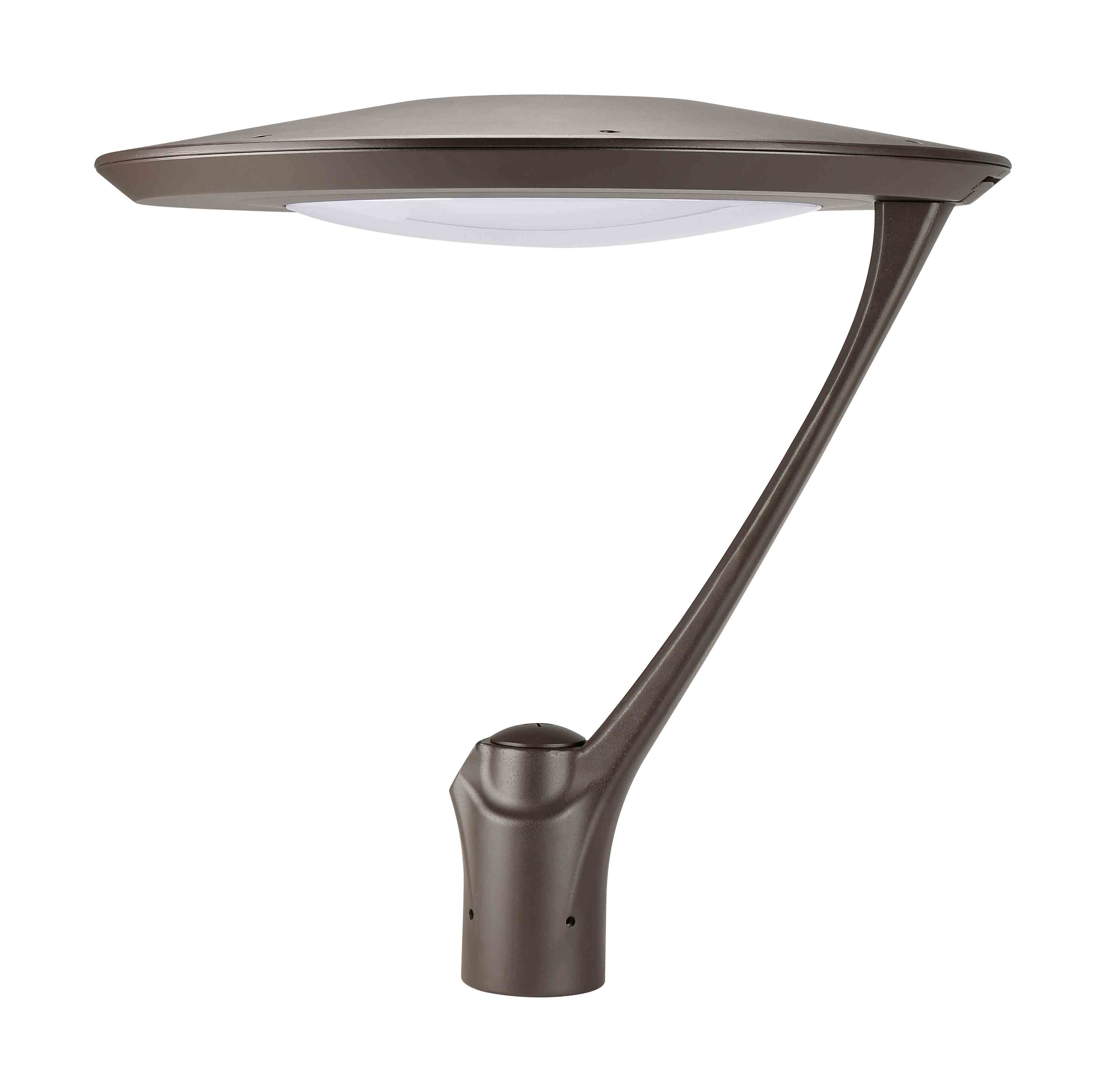

Symmetry-Series — single-cantilever LPTP4W variant with tapered swan-neck stem, side perspective. Shows the alternate mount style alongside the mainline V-yoke.

UL Listed

DLC Listed

FCC

RoHS

Wet Location

HIGHLIGHTS & FEATURES

Five reasons Symmetry rewires the post-top spec.

cityⒶRCH PRO pedestrian post-top — three field-set dials, five mounts, four contrⒶLS platforms on one housing. Beats category-leading, competing, category-leading, category-leading, competing.

Symmetry-Series LPTP — front-on studio hero of the round-top housing with V-yoke and luminous BeamLogic optic disc · marquee tile for the field-adjustable Type III/IV/V OpticⒶDAPT story

— Hero Highlight

Type III, IV, or V. Pick at install.

BeamLogic™ via OpticⒶDAPT — a 3-position dial inside the driver compartment that swaps the fixture between Type III, Type IV, and Type V distribution at install. Walk one housing onto a parking-lot pole, a streetscape spine, or a courtyard plaza and dial in the right pattern on the pole. No direct 90–160W LED post-top peer — category-leading post-top, competing post-top, category-leading MetroScape, category-leading GranVille, category-leading Omega, competing post-top, competing — ships a field-adjustable distribution dial. Every peer locks distribution at the optic SKU.

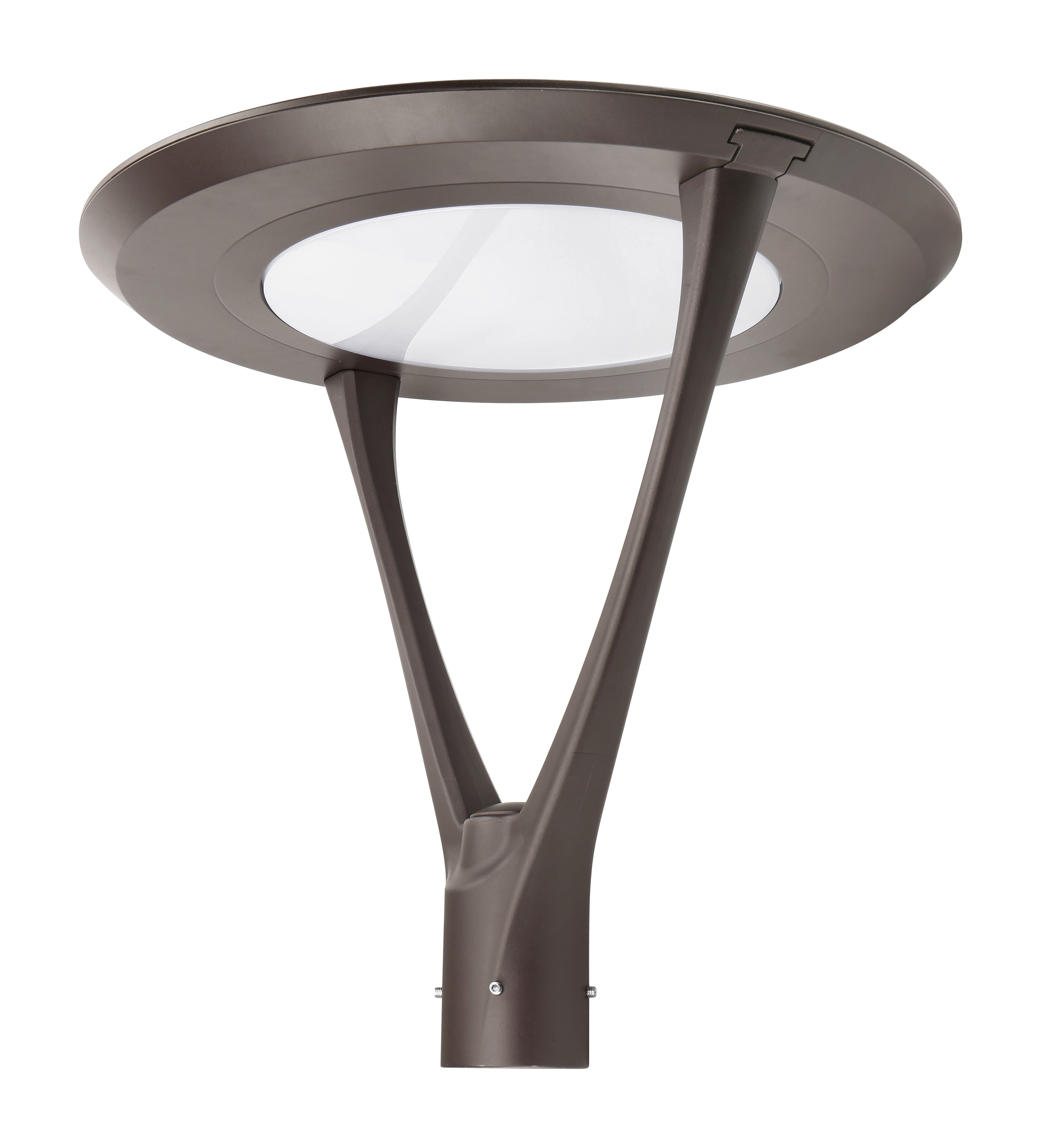

Symmetry-Series LPTP — detail view of the cast aluminum hood and V-yoke junction · illustrative tile for the BeamLogic optic platform and 197 lm/W peak efficacy story

BeamLogic™ · 197 lm/W

197 lm/W peak. T-IV @ 4000K. 36W.

197 lm/W at the BeamLogic T-IV @ 4000K @ 36W operating point on the LPTP090 housing — the peak-efficacy operating point on the datasheet (page 4). Outpaces the typical 90–160W LED post-top peer band of ~85–140 lm/W. The same OpticⒶDAPT dial that swaps distribution also flattens the lumen / wattage curve so the 36W setting gives up almost nothing on output.

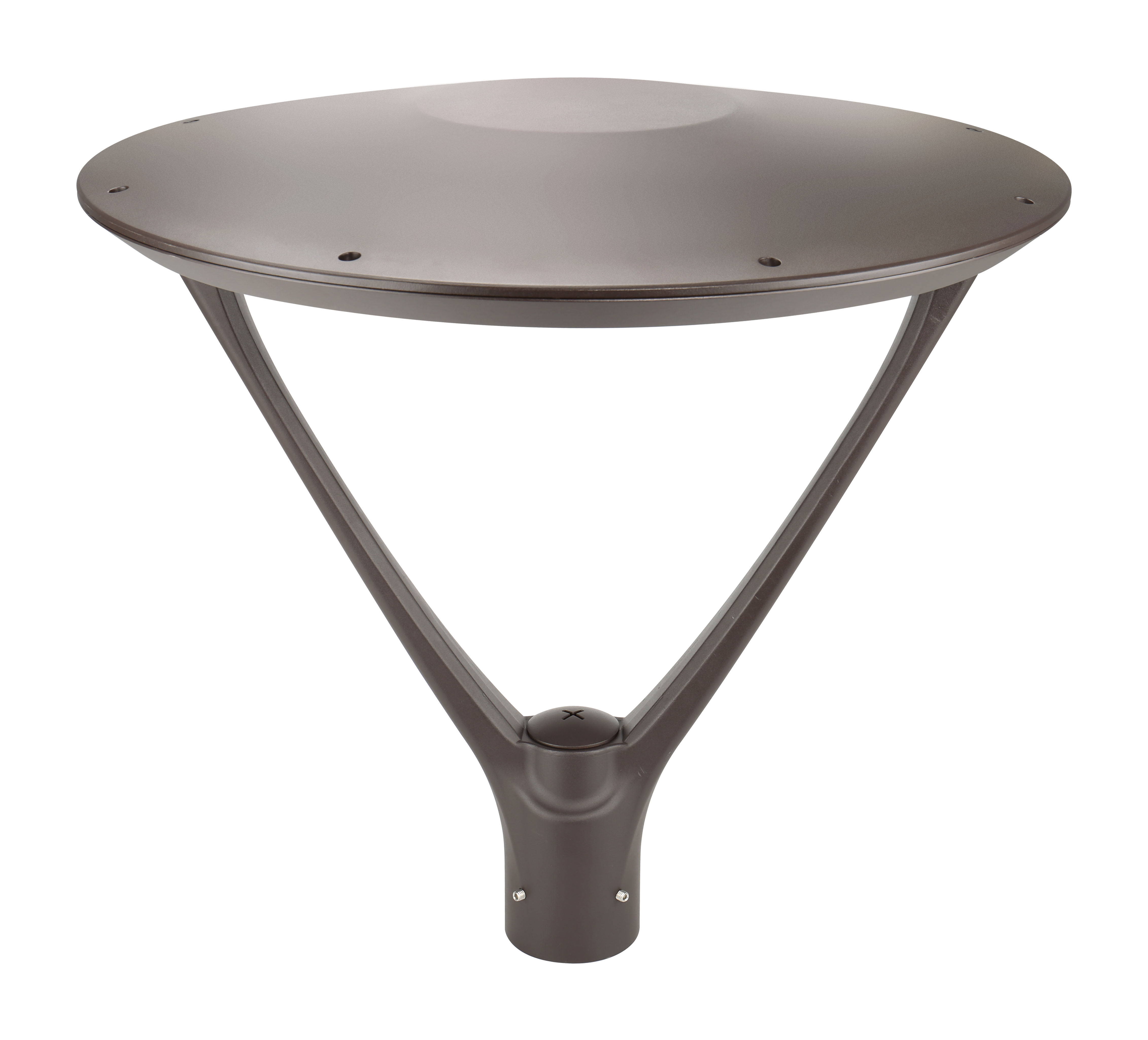

Symmetry-Series LPTP — top-down 3/4 architectural angle of the round-top housing · illustrative tile for the 4-WATTSELECT × 3-CCTSELECT × 3-distribution field-set story

4-WATTSELECT × 3-CCTSELECT × T3/T4/T5

36 configs. Three housings. One field-set call.

4-WATTSELECT (100% / 80% / 60% / 40% of housing max) × 3-CCTSELECT (3000K / 4000K / 5000K) × 3-position BeamLogic distribution = 36 configs per housing · 108 total across LPTP090 (36–90W) / LPTP130 (52–130W) / LPTP160 (64–160W). Dial in wattage, CCT, and distribution at install — one stocked SKU covers three rebate brackets and three optic types.

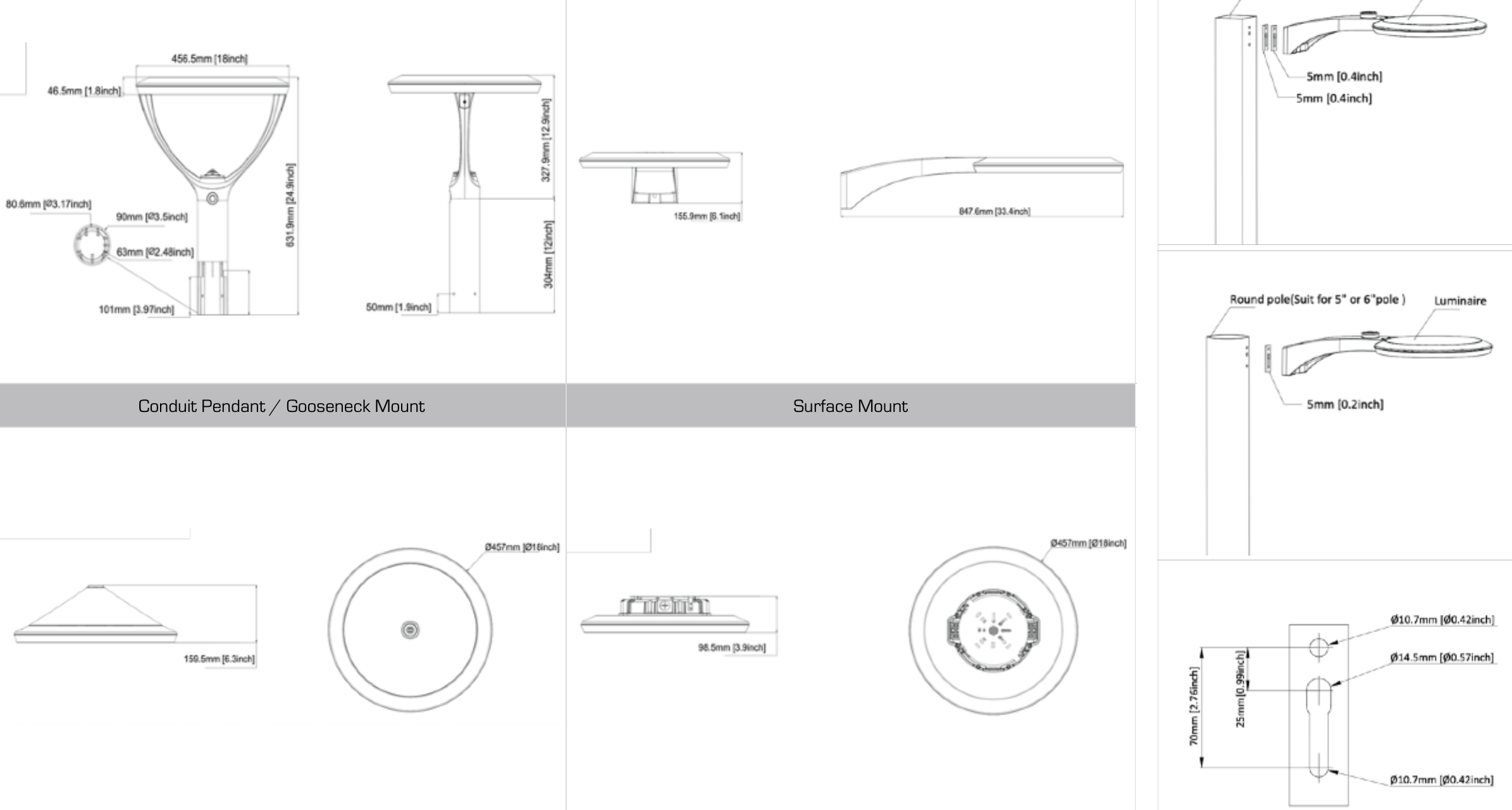

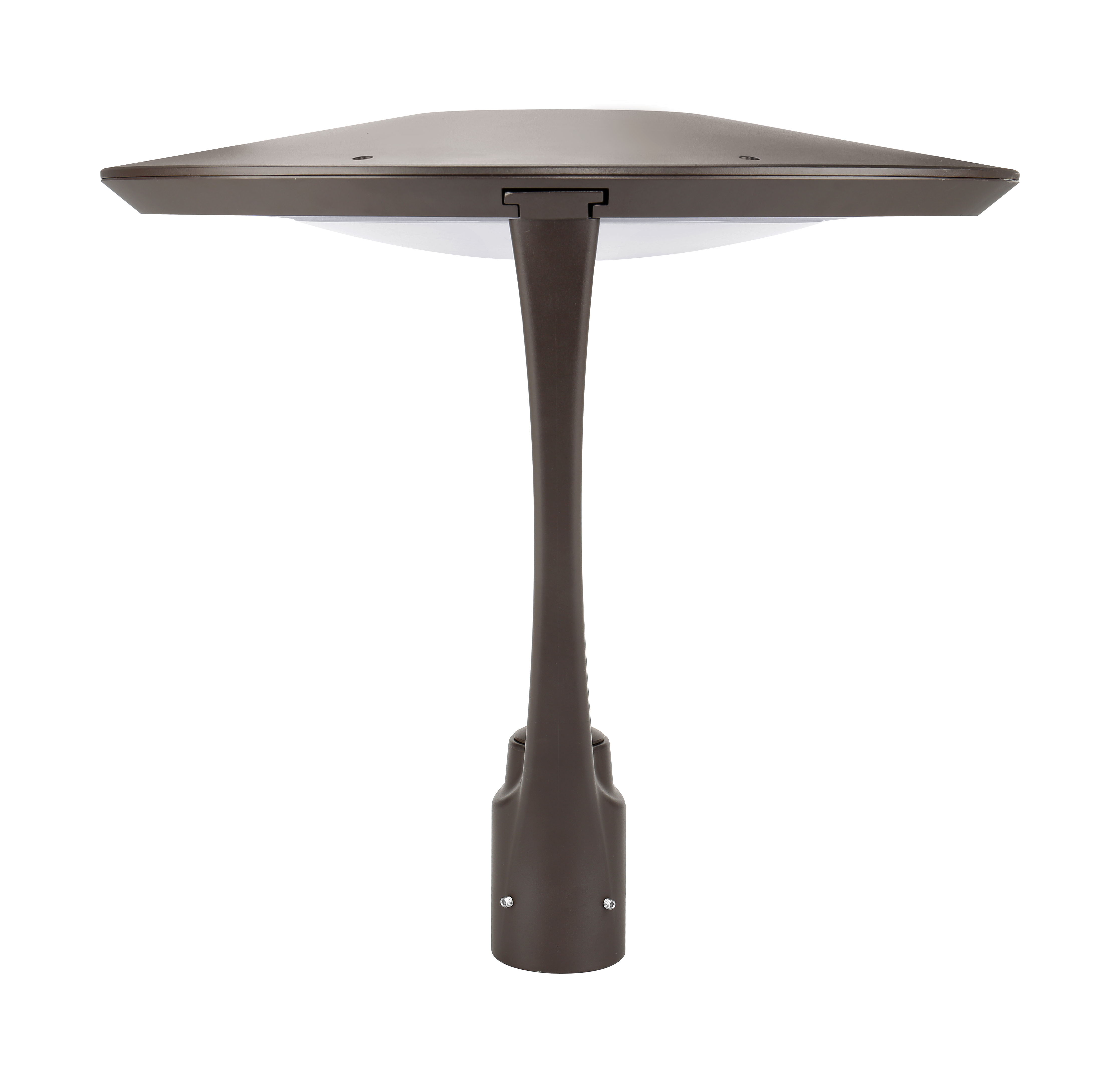

5 Mount Types · One Housing

Pole. Conduit. Gooseneck. Surface. Wall.

Five mount patterns from the same housing — Pole Mount (QuickShip), Conduit Pendant, Gooseneck, Surface Mount, Wall Mount (MTO). category-leading post-top is post-top only. competing post-top is 3″ tenon pole-top only. category-leading MetroScape is post-top only. category-leading GranVille is post-top + retrofit kit only. Symmetry covers 5 install patterns from one stocked housing — mixed streetscape projects spec one fixture instead of three.

Symmetry-Series LPTP — square-cap housing variant with V-yoke · illustrative tile for the contrⒶLS 4-platform controls story (BLS / BLS-5D / ACS / NLC)

contrⒶLS-Ready · 4 Platforms

Four controls platforms. One housing. SILVAIR-neutral.

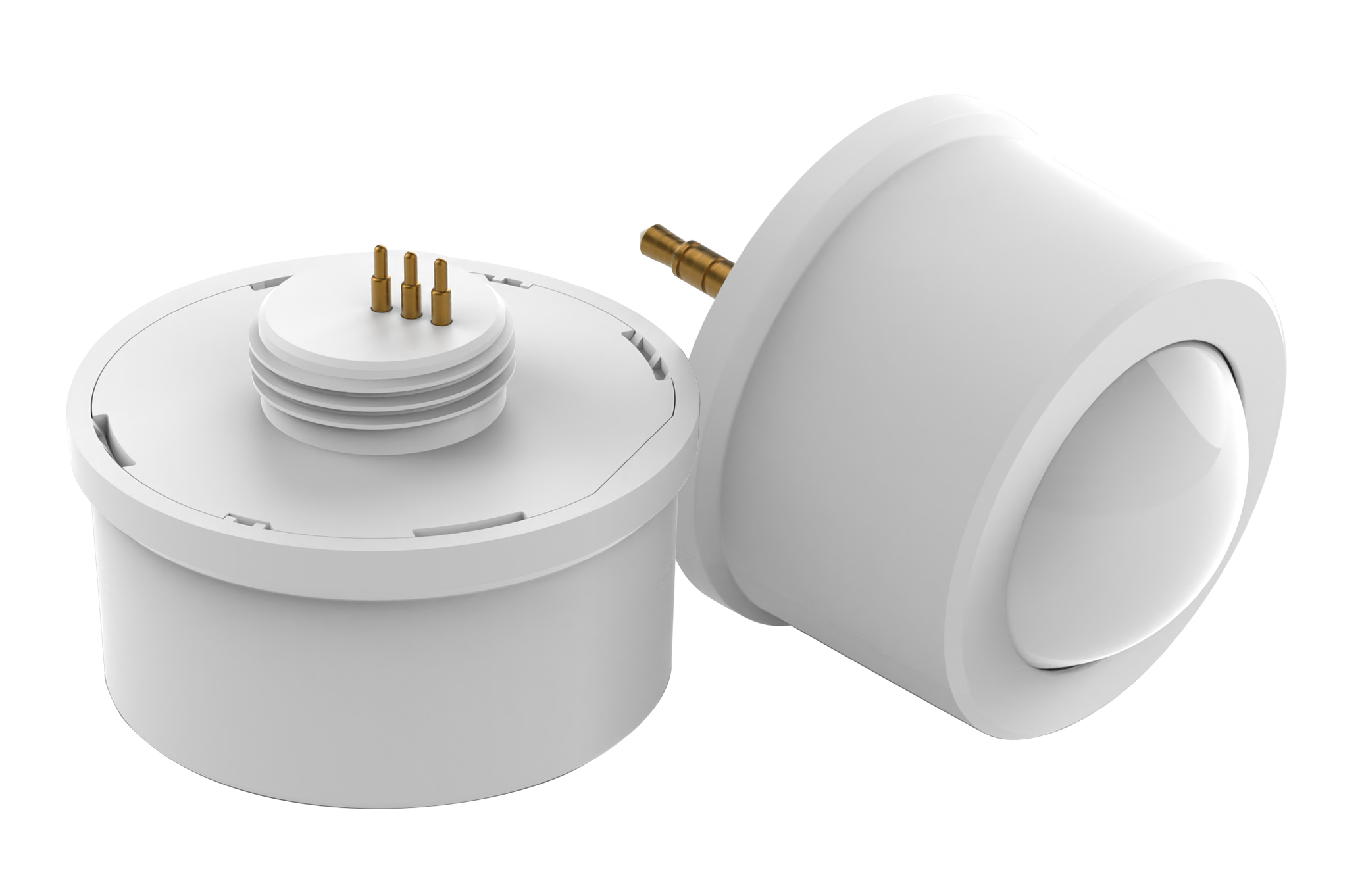

Four contrⒶLS platforms on one housing: /MSP-BLS · /MSP-BLS-5D stand-alone bi-level (IR-remote commissioned), /MSP-ACS ⒶCS Bluetooth Mesh + cloud SaaS (DLC NLC), /MSP-NLC SILVAIR SIG Bluetooth Mesh (vendor-neutral, gateway-free). category-leading locks you into competing controls platform. competing locks you into competing controls platform. Symmetry ships the SILVAIR-neutral upgrade path on the same chassis as the proprietary stack.

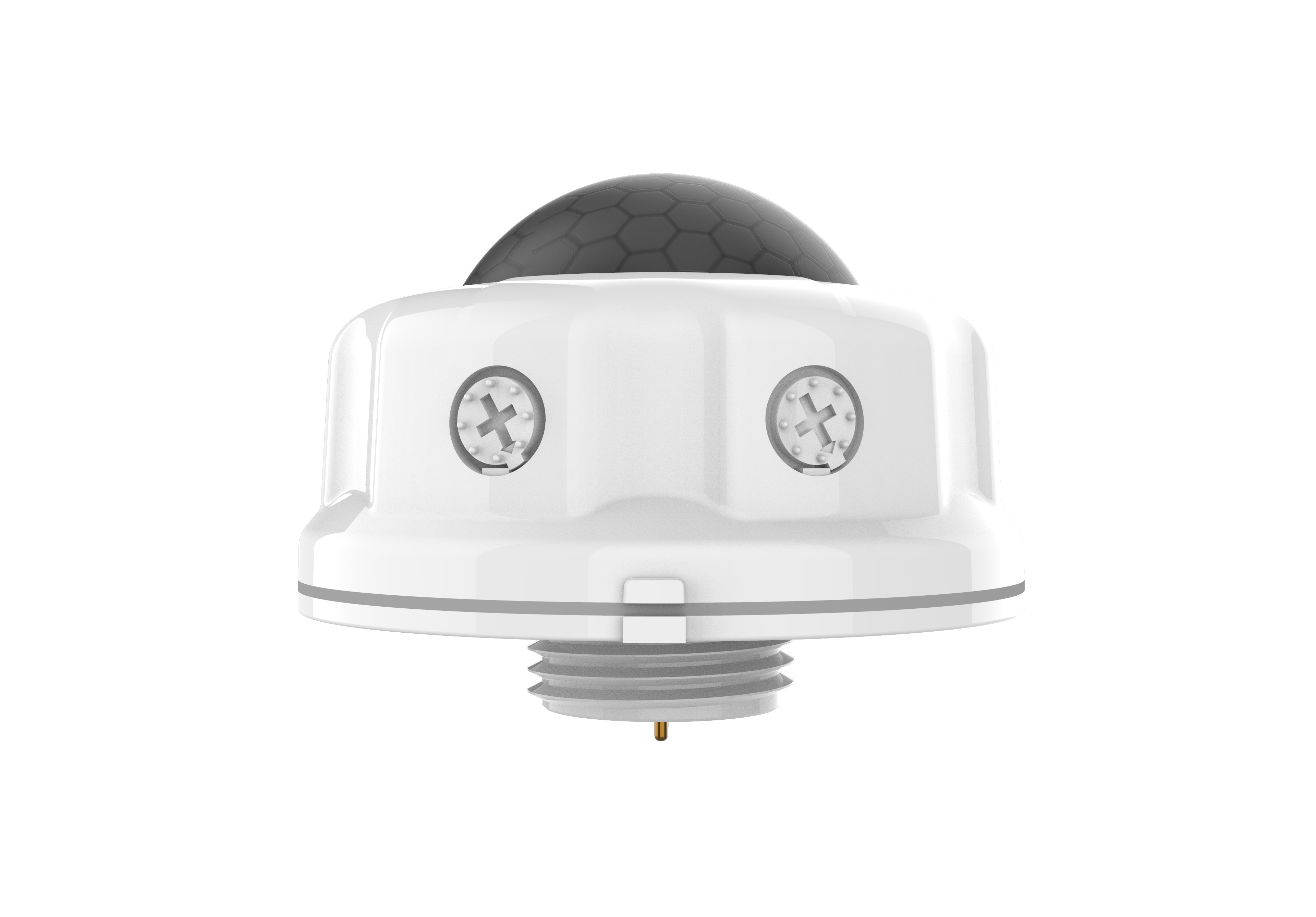

Symmetry contrⒶLS Bi-Level sensor — PIR dome with hexagonal Fresnel lens + two mounting screws · 49-ft mount height · IP65 · drives Title 24 §140.7, IECC §C405.2, ASHRAE 90.1 bi-level credits

contrⒶLS

Three platforms. One housing. SILVAIR-neutral.

Symmetry ships 4 contrⒶLS ordering codes across 3 platforms on one housing. Bi-Level for stand-alone PIR. by ⒶCS for Bluetooth Mesh + cloud — DLC NLC qualified. by SILVAIR for SIG-qualified, gateway-free enterprise mesh. category-leading post-top locks you into competing controls platform. competing post-top locks you into competing controls platform. Symmetry ships the SILVAIR-neutral upgrade path on the same chassis.

Two PIR bi-level variants — IR-remote commissioned, no gateway, no IT, no third-party sensor BOM line. /MSP-BLS standard auto high/low switching · /MSP-BLS-5D adds 5 manual dials for site-tuned thresholds. Both: PIR · 49-ft mount · 10-15Vdc · IP65 · UL · pole-mount. Commissioning via optional RM-06S IR remote (45-ft range · 2× AAA · IP20). Drives Title 24 §140.7 / IECC §C405.2 / ASHRAE 90.1 bi-level credits without networking. Daylight-harvest capable: adjust lux threshold (>50 lux), preset standby, 3× press to enable. Spec when bi-level occupancy is the entire ask.

Discover bi-level sensors →

Photometric Distribution

Beam shape, by housing × optic.

Polar luminous-distribution plots across all 3 housings × 3 optic platforms at 4000K — the peak-efficacy CCT in every cell. Curve shape and peak intensity update with the housing and optic selection below. Full LM-79 measured per-cell .ies files ship in the bundle linked from the stat panel.

Housing Class

Optic Platform

Symmetry LPTP090 · BeamLogic T4 optic · 4000K · luminous intensity distribution polar plot · IESNA semi-circle convention

Peak Candela

4,350 cd

Total Lumens

15,000 lm

Distribution · OpticⒶDAPT Field-Set

TYPE IV CRI ≥80 DLC LISTED

Type IV forward + lateral throw via OpticⒶDAPT dial. darkⒶRCH-conforming on every BeamLogic optic. 3-CCTSELECT 3000K / 4000K / 5000K (4000K = peak).

Efficacy · WATTSELECT Range

197 lm/W · 36–90W

Peak efficacy at minimum WATTSELECT setting (36W) · peak lumens at maximum WATTSELECT (90W) · 4-position field-set DIP at 100% / 80% / 60% / 40%.

Test Lab Source

IESNA LM-79 / LM-80
LPTP090-3CS-S1-FD/BL-T4-40K.IES

Download IES bundle (all 45 cells)

In the Box

Three components, factory-installed.

Every Symmetry ships with the BeamLogic™ optic + OpticⒶDAPT field-set dial (Type III · IV · V at install · darkⒶRCH-conforming), 0-10V universal-voltage driver with 4-WATTSELECT × 3-CCTSELECT DIPs + 6KVA surge standard, and the contrⒶLS-ready sensor housing (ANSI C136.41 7-pin photocell receptacle · accepts /MSP-BLS, /MSP-BLS-5D, /MSP-ACS, /MSP-NLC on the same envelope). Lift onto the pole, wire to the J-box, dial in W · CCT · distribution, walk away.

        3 components included

·

        4-WATT × 3-CCT × T3/T4/T5 DIPs at install

·

        4 contrⒶLS sensors + 5 mounts optional

Build Your Model

Configure Your Symmetry-Series

Every option below maps to the LPTP order code. Selections build the SKU live — no checkout, no surprises. Required fields marked with *. Greyed-out chips are not selectable with the current configuration. See the legend in the Optional column for ★ / QS / MTO meanings.

0 of 7 required selected

Required

5 fields · all must be set

Housing Class*—

Voltage Class*—

CCT*—

Optic*—

Finish*—

Optional

4 add-ons · pick any combination

contr Ⓐ LS · Sensor—

const Ⓐ NT · Surge Protection—

Glare Control—

Tenon Adapter—

★Factory-default ship configuration

QuickShip · 3-5 day lead

Made-to-Order · 4-6 week lead

Estimates · not guarantees · subject to availability · confirm before committing.

Live Preview Symmetry-Series LPTP — front-on hero with V-yoke and round-top housing · live preview

Resolved SKU

LPTP[H]-3CS/[V]S1/[F]/[O]

— deriving ship tier —

Peak Lumens

—

Peak Efficacy

—

CCT

—

Distribution

—

Voltage

—

WATTSELECT

—

Mount

—

CRI

≥80

One or more required fields not selected. Pricing & Availability and Submittal PDF will unlock once all 7 required fields are set.

Pricing & Availability Submittal PDF Request Layout

LPTP · Symmetry PRO

Three distributions. One optic. Pick at install.

Model Specifications

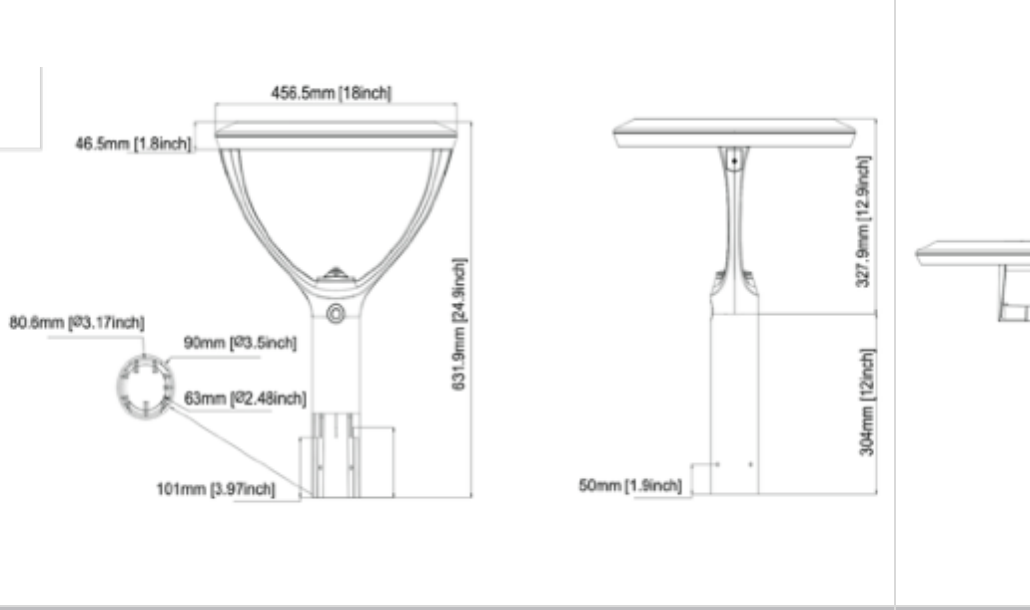

Dimensions
