LHMF · OmniMax PRO+

Re-aim high-mast light in minutes: 165° rotation, service-friendly access.

OmniMax is the cityⒶRCH PRO+ high-mast luminaire for ports, container terminals, highways, rail yards, and airports. Up to 107,250 lm at 143 lm/W — top of the spec-grade tier. The 8-step WATTSELECT dial fields output 25–100% of class max. The optical assembly rotates 165° left-to-right — a configuration no peer high-mast offers. 10-year warranty on 24/7 duty.

Input Watts: 125–750W (8-step WATTSELECT) Lumens: Up to 107,250 lm Peak Efficacy: 143 lm/W

Ideal Applications

Highways

Ports / Rail

Stadiums

Security

8-WATTSELECT

CONTRⒶLS-READY

L-R ROTATION

THERMALⒶRMOR

WETⒶGUARD

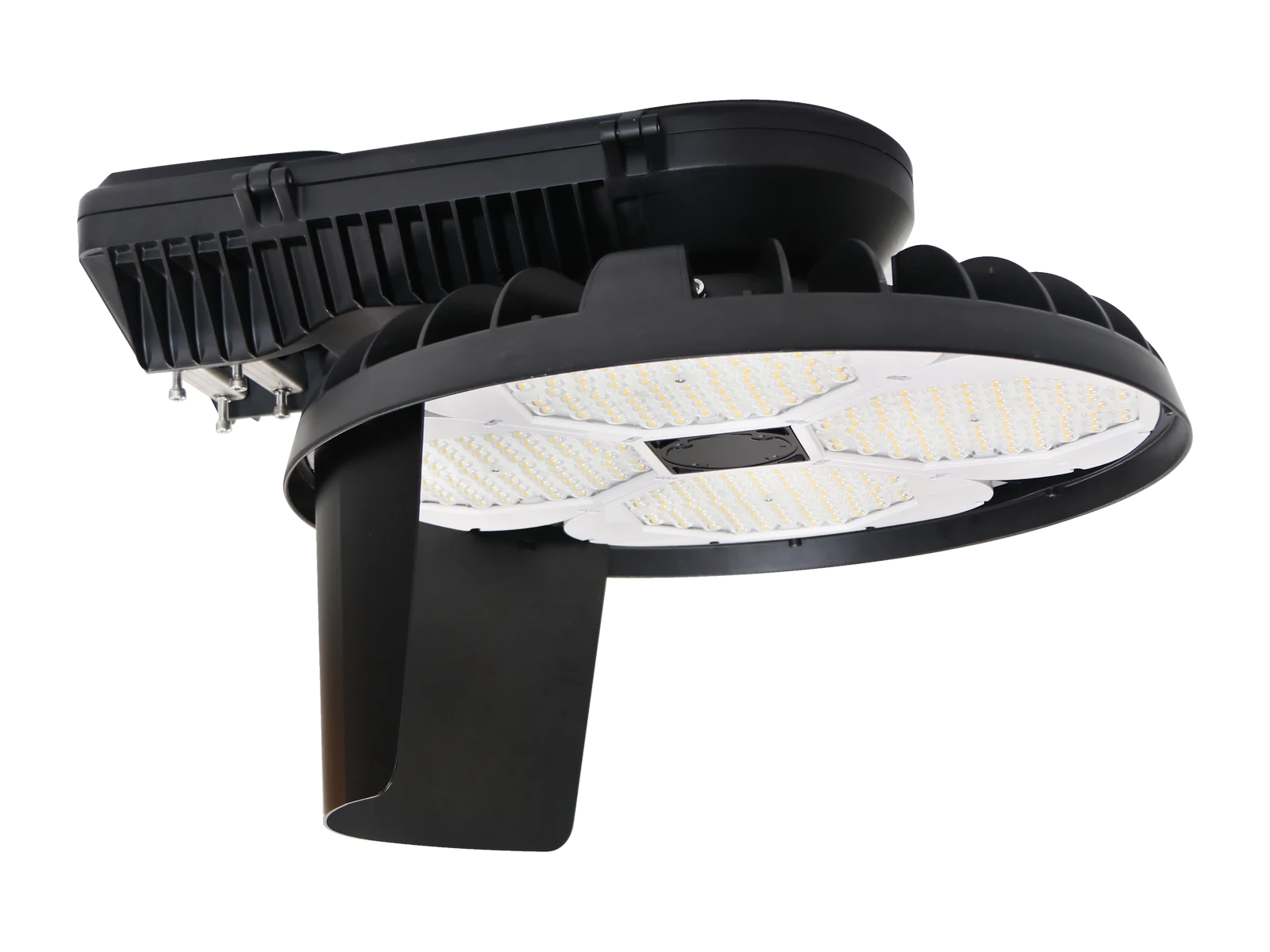

LHMF OmniMax — top-down hero view showing 4-section LED array, photocell receptacle, and circular die-cast aluminum housing

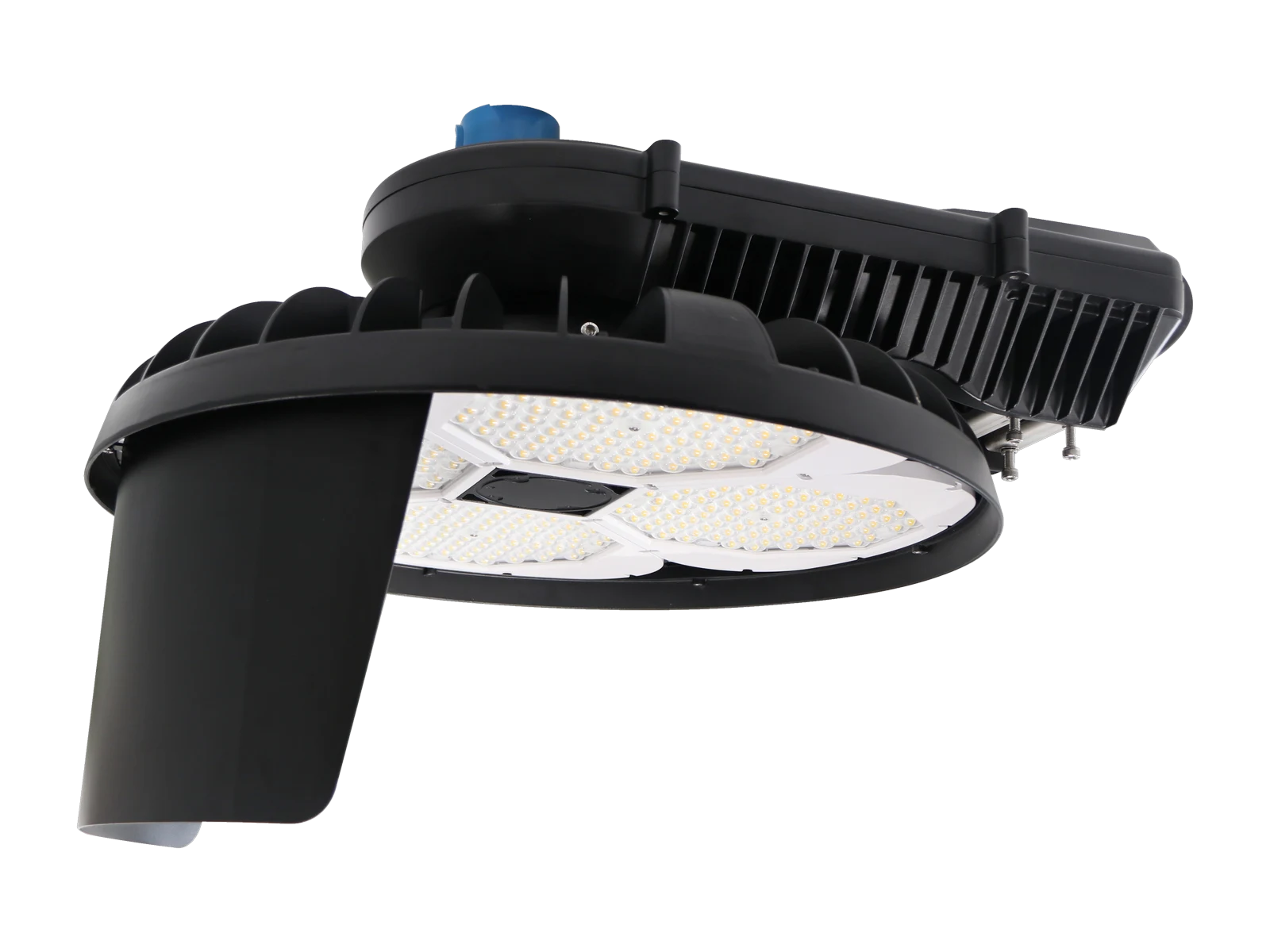

LHMF OmniMax — side-angle view showing the mast-arm engagement, driver compartment, and 165° rotation pivot

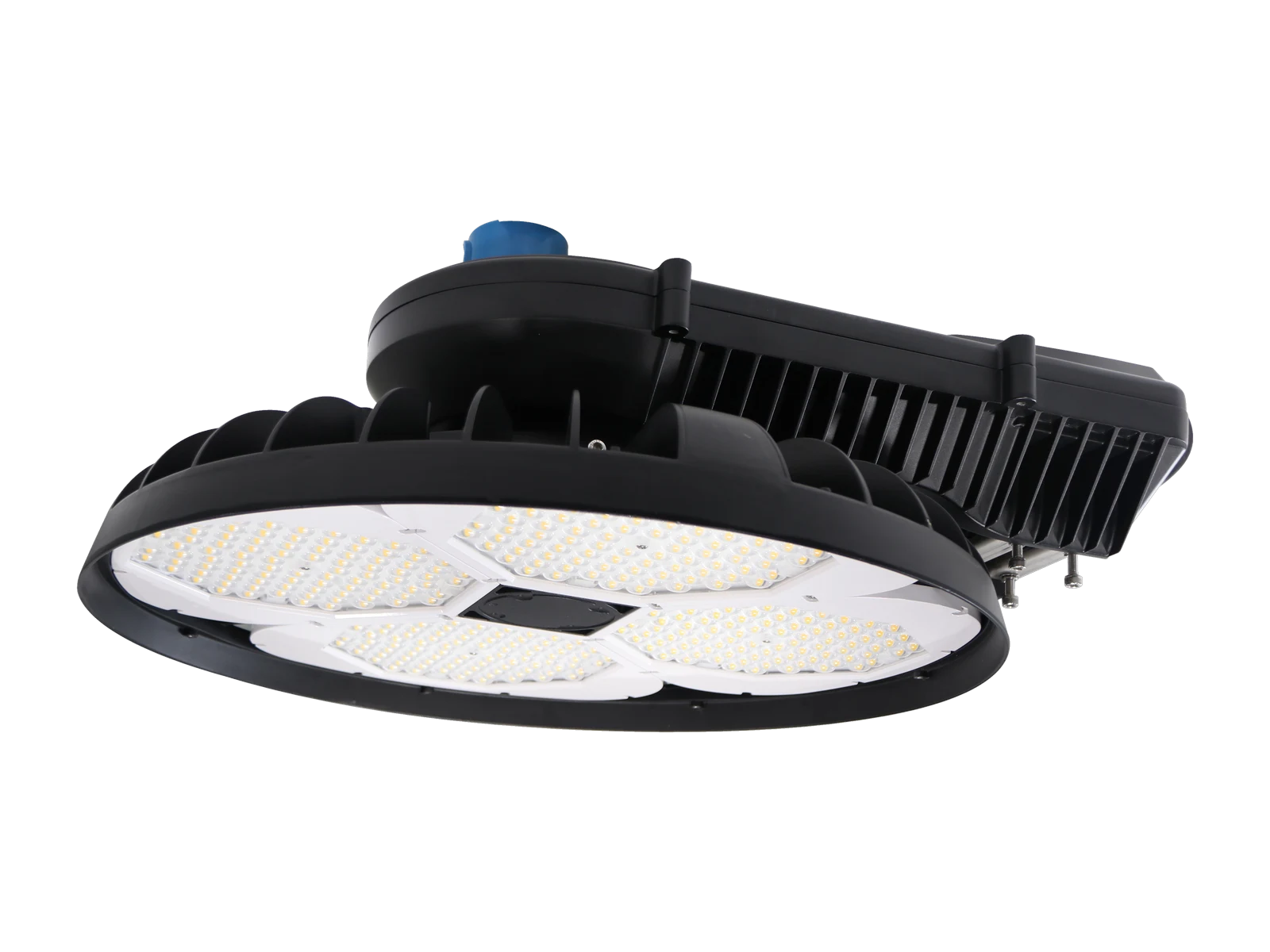

LHMF OmniMax — alternate marketing angle showing housing depth, glare-shield mount, and 4-LED-section optical assembly

Slide 04 / 05

[ in-context shot · awaiting asset ]

Port container terminal at night · 4× OmniMax crowning a 100-ft pole · 165°-rotated sector coverage

Slide 05 / 05

[ highway interchange · awaiting asset ]

Multi-lane highway interchange · OmniMax on 80-ft mast arm · uniform Type-V wide-area coverage

DLC Listed

UL · cUL

RoHS

Wet Location

Model Specifications

Download Data Sheet

Application

Outdoors · LED High Mast

Finish

Field-Set (every SKU)

8-WATTSELECT 25%-100% · 16 configs / 2 housings

Weather Resistance

IP65 · Wet Loc. die-cast aluminum · −40°F to 113°F · 90% RH

Warranty + Life

10 yr · 100k hr 24/7 rated · DOUBLE the industry 5-yr standard

Watt	Lumens	Efficacy	Distribution	CCT

Anatomy

(Quick reference · 165° rotation pivot + Ø42-60mm mast arm · full annotated SVG in Section 7)

Install reference (per install guide): Slip-fitter mounts to standard 2-3/8″ or 3″ tenon · M10 set-screws · ±5° horizontal aim adjustment in 2.5° steps via integrated bubble level · 3-pole terminal block (2-14 AWG) · bird guard included for tenons ≤ 1.77″ diameter · EPA up to 0.4711 sq ft. Detailed measured dimensions pending mast-arm engineering update.

Highlights & Features

OmniMax: one pole, four fixtures, 360° of coverage.

Five reasons OmniMax wins the spec sheet — unique 165° optical-assembly rotation, 8-step WATTSELECT, 107,250 lm @ 143 lm/W (class-best), 10-year warranty, and IP65 die-cast for ports and highways.

OmniMax luminaire side-angle showing the 165° rotational pivot at the optical-assembly base — the rotation that lets installers crown a single pole with multiple OmniMax fixtures aimed at different sectors

— Hero Highlight

165° Optical Rotation.

The optical assembly rotates 165° left-to-right at the housing pivot. One pole can crown four OmniMax fixtures aimed at four different sectors — port quay + container yard + access road + perimeter — from a single mast. No other LED high-mast in the spec category offers this. Peer high-mast luminaires in this class do not offer this. Generic 750W high-mast: fixed.

Macro of the OmniMax 8-position WATTSELECT dial behind the access door — labeled 25/40/50/60/70/80/90/100% positions for field commissioning the wattage to the IES target

Field-Adjustable

8-Step WATTSELECT.

Behind the access door, a 1-8 dial fields output at 25/40/50/60/70/80/90/100% of class max. The 750W class covers 200-750W in 8 SKU-free steps. Peers offer 0-3 steps. Stock one SKU; commission to any wattage point at install.

Output

107,250 lm @ 143 lm/W.

The 750W cell delivers what 1000W HID used to. Highest-tested LED high-mast lumen output in its class — beats peer high-mast luminaires (~95k lm class), competing brands (80,800 lm class), and the generic 750W high-mast tier (~101,250 lm). Constant 143 lm/W across the entire 8-step range — efficacy doesn't drop as you dial down.

Warranty

10-Year. 100k Hours. 24/7.

DOUBLE the industry standard. Peer high-mast luminaires: 5-year typical. Generic 750W high-mast: 5-year. OmniMax: 10-year limited warranty rated for 24/7 continuous operation at full output. 100,000-hour L70 lumen maintenance. Color stability ≤ 180K shift over warranty period.

Macro of OmniMax die-cast aluminum heat-sink fins with optional 20kV surge protection module visible inside the driver compartment — coastal-grade thermalⒶRMOR construction with wetⒶGUARD IP65 sealing

Build

Coastal + Lightning-Proof.

thermalⒶRMOR die-cast aluminum housing for passive thermal headroom on 750W loads. wetⒶGUARD IP65 fully sealed optical chamber. 10kV surge standard, 20kV optional — beats peers' 10kV ceiling. -40°F to +113°F operating range, 90% RH humidity. Built for ports, container terminals, highway interchanges, and open-pit mines.

Adaptive Controls

8-step dial. Photocell-ready. 0-10V dimmable.

Behind the access door, an 8-position dial fields output from 25% to 100% of class max — one SKU, eight commissioning points. Every OmniMax housing ships with a 3-pin (ANSI C136.10) twist-lock photocell receptacle on top. Layer in 0-10V class-2 dimming and an optional PIR motion sensor for full dusk-to-dawn schedule + occupancy reduction. No gateway, no mesh, no commissioning app.

8-Step WATTSELECT Dial.

Behind the door, a 1-8 dial commissions the wattage to the IES target — 25/40/50/60/70/80/90/100% of class max. The 750W class covers 200/300/375/450/525/600/675/750W in 8 SKU-free steps. Ship one SKU; commission to any wattage point on the pole. Constant 143 lm/W across all 8 steps.

Factory default = position 8 (full output)
Field-commissionable · M6 hex wrench access
16 wattage points across both housings (500W + 750W)

Photocell-Ready.

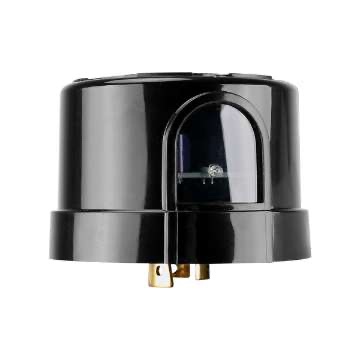

3-pin (ANSI C136.10) twist-lock receptacle on every housing — ships with a shorting cap when no photocell ordered. Add the optional ALG photocontrol (LSBX-L1/PCS/UM3 for 120-277V or LSBX-L1/PCS/HM3 for 277-480V) or any compliant photocell — vendor-neutral by design.

RB3 · 3-pin twist-lock standard on every SKU
Optional UM3 (120-277V) or HM3 (277-480V) photocell
Shorting cap shipped when no photocell ordered

0-10V Dimming + PIR.

Driver supports 0-10V class-2 dimming standard (also accepts 1-10VDC, PWM, or resistance-based). Add the optional integrated PIR motion sensor for dusk-to-dawn occupancy reduction at port terminals, truck stops, and large-area parking. Flicker < 5%, PF ≥ 0.9, THD ≤ 20%.

0-10V class-2 std · 1-10VDC / PWM / R-dim accepted
Optional PIR — bi-level dim on vacancy
Flicker < 5% · PF ≥ 0.9 · THD ≤ 20%

No mesh, no gateway, no commissioning app. The 8-step dial behind the access door, the photocell on top, and the 0-10V dim pair on the driver — three controls inputs that work with the tools your installer already carries on the truck.

Photometric Distribution

Beam shape, straight from the IES file.

Type-V wide-area distribution rendered directly from the IESNA LM-63 test reports (Belling Test Lab · GPM-3000 · 14m test distance). Peak candela, total lumens, and efficacy update as you switch wattage class and input voltage below — four tested cells across the LHMF8W500 and LHMF8W750 platforms.

Wattage Class

Input Voltage

CCT

Photometric distribution — IESNA semi-circle polar plot, Type-V wide-area distribution

Peak Candela

27,346 cd

Total Lumens

106,370 lm

Input Watts

766.6 W

Efficacy

139 lm/W

Distribution / BUG Rating

Type V B5-U0-G5

Wide-area symmetric distribution with 155° × 155° beam angle. Type-V standard across every active LHMF8W500 and LHMF8W750 SKU. Type II/III/IV available as MTO. Zero uplight (U0) for Dark Sky compliance.

Test Source

IESNA LM-63-1995 · Belling Test Lab BLC2009004E-A
LHMF750-4000-120V-5.ies

Download IES bundle (4 files, ZIP)

Engineering · Anatomy

Crown the pole. Tune the wattage. Aim the beam.

Seven engineering details that make OmniMax the spec-grade choice for ports, highways, rail yards, and industrial campuses — 165° optical-assembly rotation that no peer offers, an 8-position WATTSELECT dial behind the access door, advanced TIR optics with zero uplight, built-in mast-arm leveler, and a wide Ø42-60mm tube range for non-standard pole arms.

Same disc-form housing platform across LHMF8W500 (500W class) and LHMF8W750 (750W class). Same external profile, same maintenance touchpoints — Black finish on every housing class (Silver MTO on 750W-U-only). Up to four OmniMax fixtures crown a single pole, each rotated independently up to 165° to cover four different sectors from the same mast.

Build Your Model

Configure Your OmniMax

Every option below maps to the LHMF OmniMax order code. Selections build the SKU live — no checkout, no surprises. Required fields marked with *. Greyed-out chips are MTO or invalid in the current configuration. See the legend in the Optional column for ★ / QS / MTO meanings.

0 of 3 required selected

Required

6 fields · all must be set

Wattage Class*—

CCT*—

Input Voltage*—

Distribution*—

Finish*—

Photocell Receptacle*—

Optional

3 add-ons · pick any combination

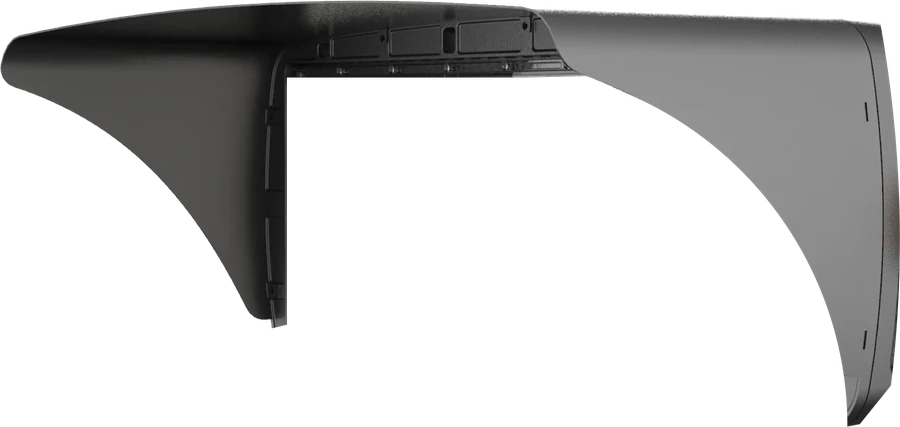

Glare Visor—

Surge Protection—

TAA Compliance—

★Factory-default ship configuration

QuickShip · 3-5 day lead

Made-to-Order · 4-6 week lead

Estimates · not guarantees · subject to availability · confirm before committing.

Live Preview OmniMax preview — black finish, front-3/4 angle showing 4-section LED face and photocell receptacle

Resolved SKU

LHMF[8W500|8W750]-50[U|H]OM/[B|S]/5/RB3

— deriving ship tier —

Max Lumens

—

Efficacy

—

CCT

—

Input Voltage

—

Distribution

Type V · 155°×155°

Peak Intensity

—

Finish

Black

Compliance

DLC Listed · IP65 · 10-yr / 100k hr

Configuration incomplete. Resolve all 3 required fields to unlock pricing & submittal generation.

Pricing & Availability Generate Submittal PDF Request a Layout

cityⒶRCH Outdoor Family

Pedestrian to high-mast, all in one line.

OmniMax is the LHMF high-mast crown of the cityⒶRCH outdoor family. Pair it with the cityⒶRCH roadway and pedestrian-scale luminaires for the access roads, sidewalks, and walkways below — same controls vocabulary, same photocell receptacle, same coastal-grade build, all spec'd from one factory.

CITYRCH · POST-TOP

cityⒶRCH · Symmetry PRO+

Symmetry

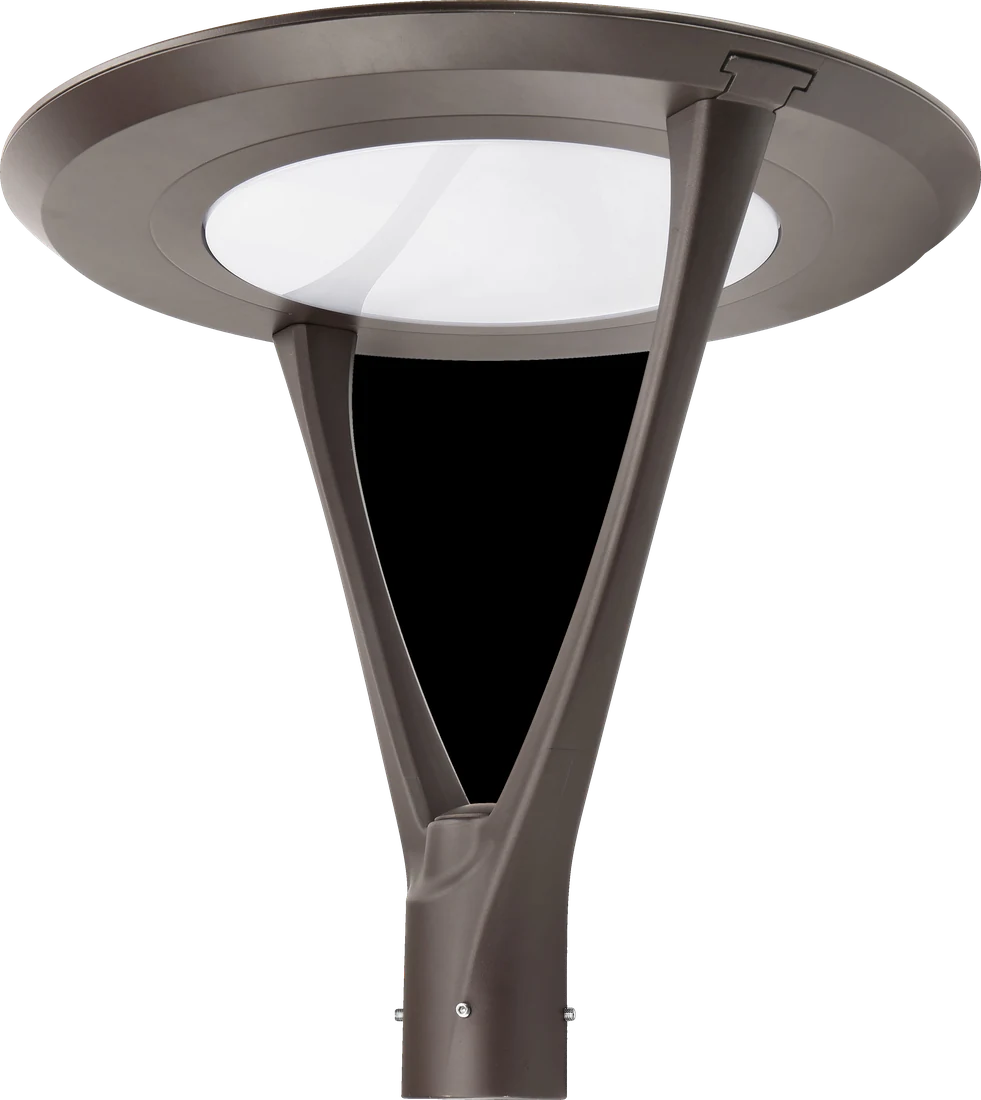

Pedestrian-scale LPTP post-top for plazas, walkways, and campus paths bordering the access road. Bottom of the venue lighting plane.

Up to 16,000 lm · 90W / 130W / 160W class · NEMA II/III/V

Commercial-grade LRDW LED roadway for arterial roads, collectors, parking-lot edges, and utility corridors. The middle tier of the venue lighting plane.

9,759-29,000 lm · 100W / 150W / 200W / 300W class · Type III

View product →

CITYRCH · HIGH-MAST You Are Here LHMF OmniMax — circular disc-form LED high-mast luminaire with 4-section LED face and 165° optical-assembly rotation

cityⒶRCH · OmniMax PRO+

OmniMax

Specification-grade LHMF LED high mast for ports, highways, rail yards, stadiums, and large industrial campuses. The crown of the venue lighting plane. The product on this page.

17,875-107,250 lm · 500W / 750W class · Type V · 165° rotation

Currently viewing

Round Out the Project

For the complete site.

OmniMax crowns the high mast. These cross-line fixtures handle everything else around the site — the access roads below, the canopy and garage spaces, controls platforms, and surge protection. Same factory, same warranty, same controls vocabulary.

CITYRCH · ROADWAY

Roadway · LRDW

Abbey

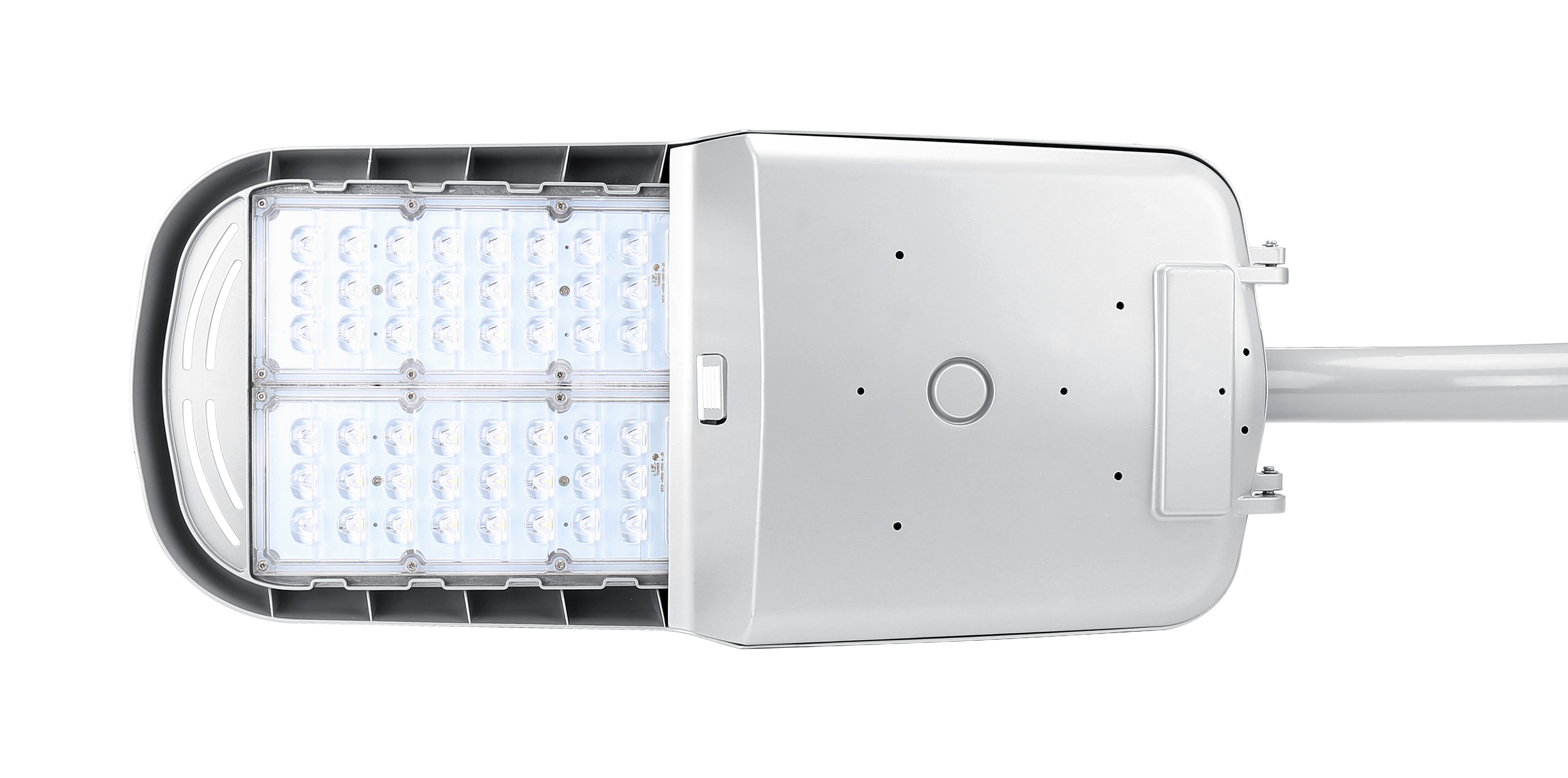

LRDW Abbey LED roadway for the access roads + parking-lot edges below the OmniMax-lit high mast. Same controls vocabulary, same photocell receptacle.

9,759-29,000 lm · 100W / 150W / 200W / 300W class · Type III

Low-profile canopy luminaire for the gas-station forecourt at the truck-stop or the toll-plaza canopy at the highway interchange. Photocell shares the same LSBX-L1/PCS family as OmniMax.

Up to 16,000 lm · 2-housing × 3-W × 3-CCT · IP65

View product →

CONSTNT · SURGE

constNT · 10 / 20 kA SPD

Surge Protection

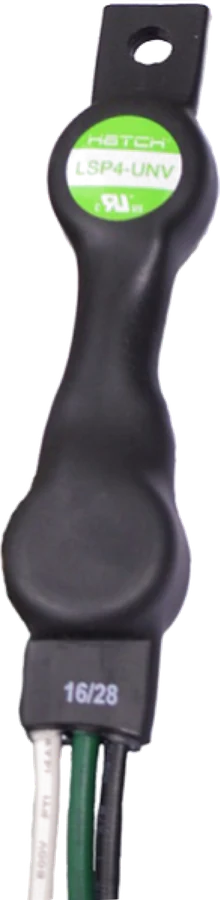

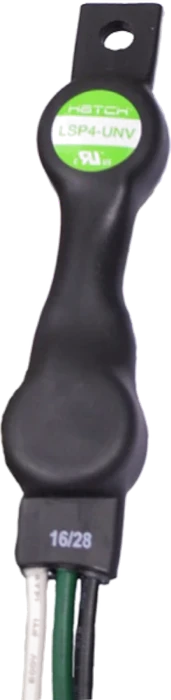

Drop-in 10 kA or 20 kA surge protectors for port terminals, highway interchanges, and lightning-prone sites. Direct upgrade to the OmniMax driver compartment — see Section 8 (SP10U/H, SP20U/H).

UL 1449 4th Ed. · IEEE C62.41-2002 · L-N / L-G / N-G

View product →

Specifier Support

Direct line to your regional rep.

Five US warehouses ship OmniMax in 3-5 days. Layout requests come back inside 48 hours. Quotes, sample requests, and rebate matches reply same business day. No portal-as-the-only-channel: you get a person.

US Warehouses

48 hr

Layout SLA

Same-Day

Quote Reply

Find a Rep Contact Sales

Great Rebates

Stack the rebates.

OmniMax is DLC Listed (Standard) — qualifying for the broadest pool of utility rebate programs across high-mast and large-area LED retrofits. We'll match your project to active programs in your ZIP and pull the paperwork.

2,400+

Active Programs

15-40%

Project Offset

DLC Listed

Standard Tier

Open Rebate Center

Need a quote, layout, sample, or rebate match? We respond same business day.

Contact Sales Request Layout
