Abbey is the cityⒶRCH PRO roadway luminaire engineered for major streets, bike lanes, parking areas, and general area lighting. Abbey-II ships with a 4-WATTSELECT field-set DIP across 3 housings (40–300W) and peaks at 182 lm/W — top of the spec-mode LED roadway tier. Abbey-I delivers fixed-wattage 105W and 150W classes for utility-grade dusk-to-dawn deployments. Same heavy-duty die-cast aluminum housing, 3G vibration rating, coastal-rated anti-rust frame, and 10-year warranty across both variants.

Input Watts: 40–300W (Abbey-II WATTSELECT) Lumens: Up to 45,200 lm Peak Efficacy: 182 lm/W

Ideal Applications

Bike Lane

Roadway

Pathways

Public

WATTSELECT

CONTRⒶLS-READY

OPTICⒶDAPT

THERMALⒶRMOR

WETⒶGUARD

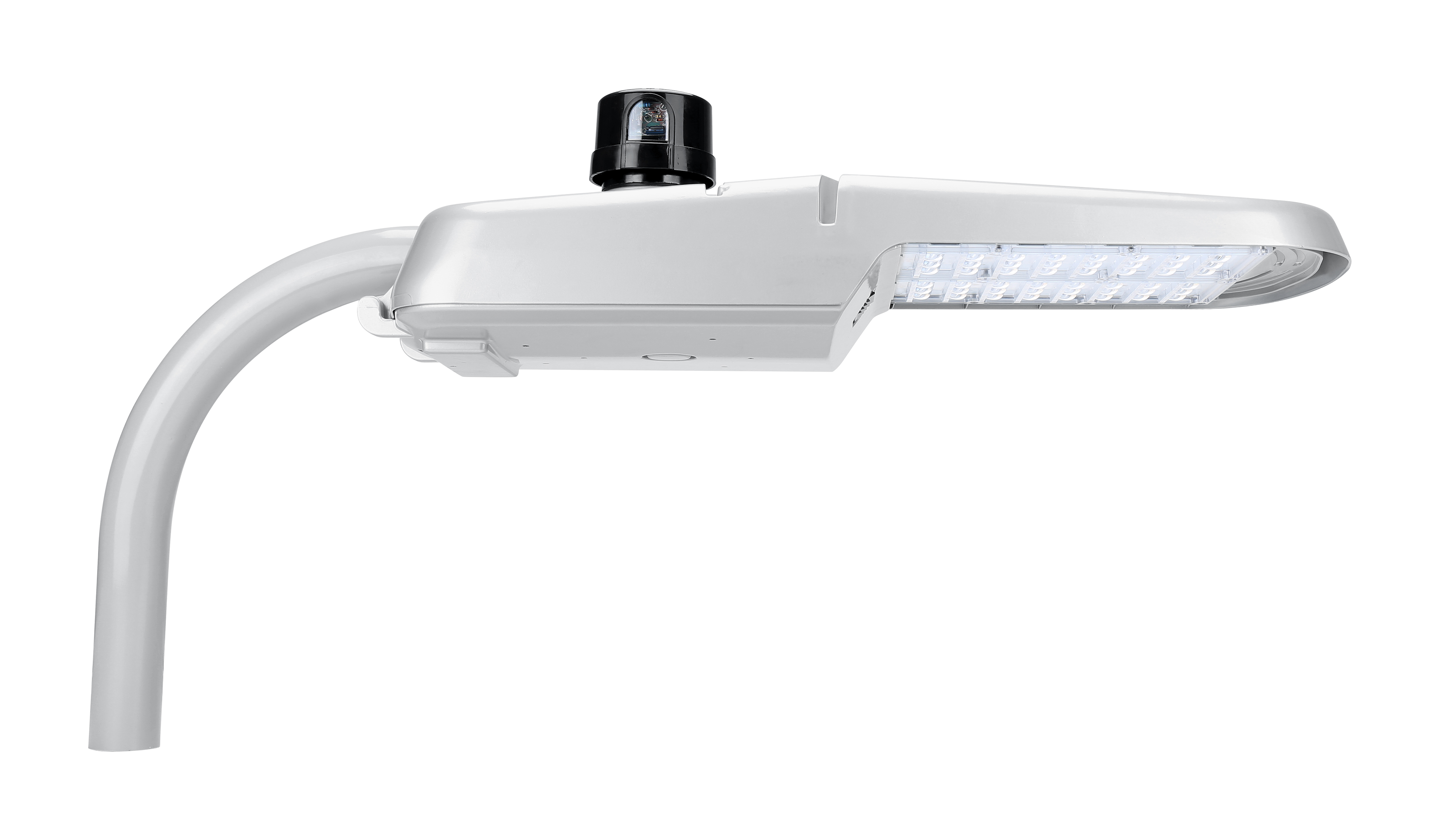

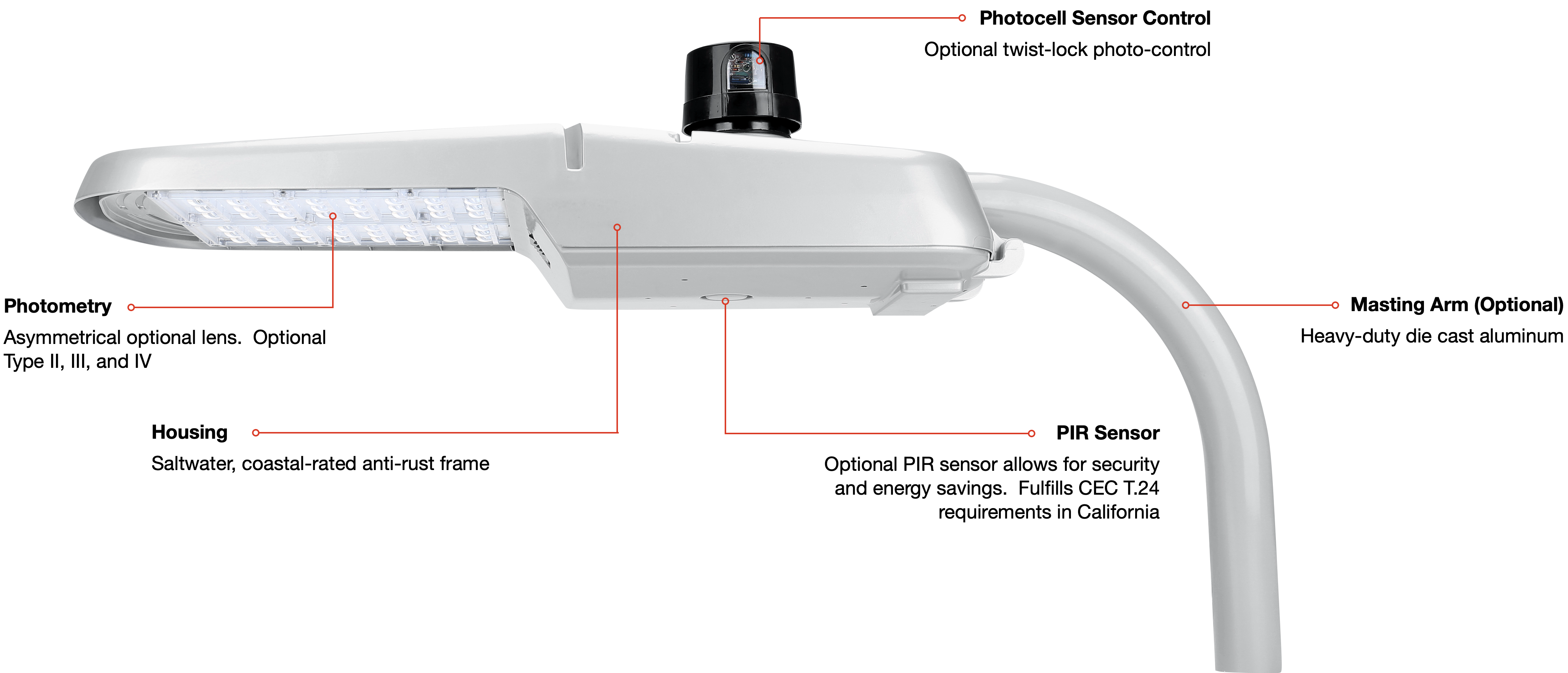

LRDW Abbey — Silver finish · side-angle view emphasizing photocell receptacle, access door latch, and mast-arm engagement

LRDW Abbey — marketing/web product photo · alternate angle

Slide 04 / 05

[ in-context shot · awaiting asset ]

Major roadway at night · Abbey on mast arm · streetscape context shot

Slide 05 / 05

[ bike-lane / pathway · awaiting asset ]

Bike-lane application · PIR-equipped Abbey · CEC Title 24 §140.7 compliance context

DLC Listed

UL · cUL

RoHS

Wet Location

Model Specifications

Download Data Sheet

Application

Outdoors · LED Roadway

Finish

Field-Set (Abbey-II only)

4-WATTSELECT 12 configs / 3 housings (A2 only)

Weather Resistance

IP65 · Wet Loc. 3G vibration · coastal anti-rust · −40°F to 104°F

Warranty + Life

7 yr · 75k hr Top of class · matches competing · beats category-leading/competing 5-yr

Watt	Lumens	Efficacy	OpticⒶDAPT	CCT

Anatomy

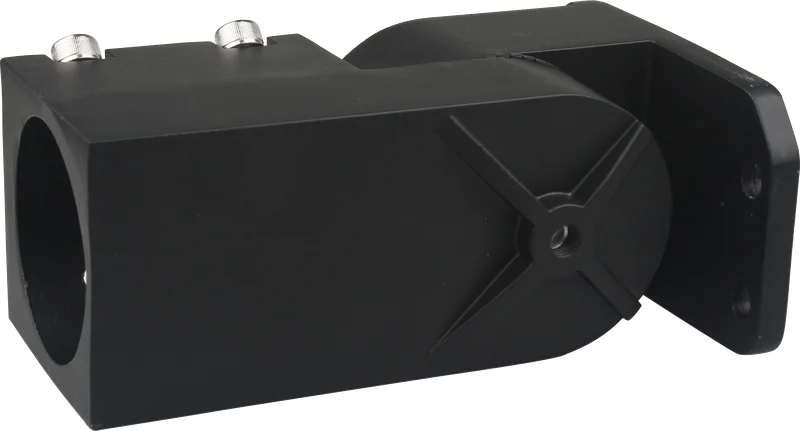

(Mast-arm slip-fitter mount · install guide page 1 reference)

Install reference (per install guide): Slip-fitter mounts to standard 2-3/8″ or 3″ tenon · M10 set-screws · ±5° horizontal aim adjustment in 2.5° steps via integrated bubble level · 3-pole terminal block (2-14 AWG) · bird guard included for tenons ≤ 1.77″ diameter · EPA up to 0.4711 sq ft. Detailed measured dimensions pending mast-arm engineering update.

Highlights & Features

Abbey: one SKU on the shelf, four wattages on the pole.

Five reasons Abbey wins the spec sheet — Abbey-II WATTSELECT, 182 lm/W peak efficacy, 3G-vibration coastal build, Title 24 §140.7 PIR-ready, and full TAA + ANSI C136.10 federal compliance.

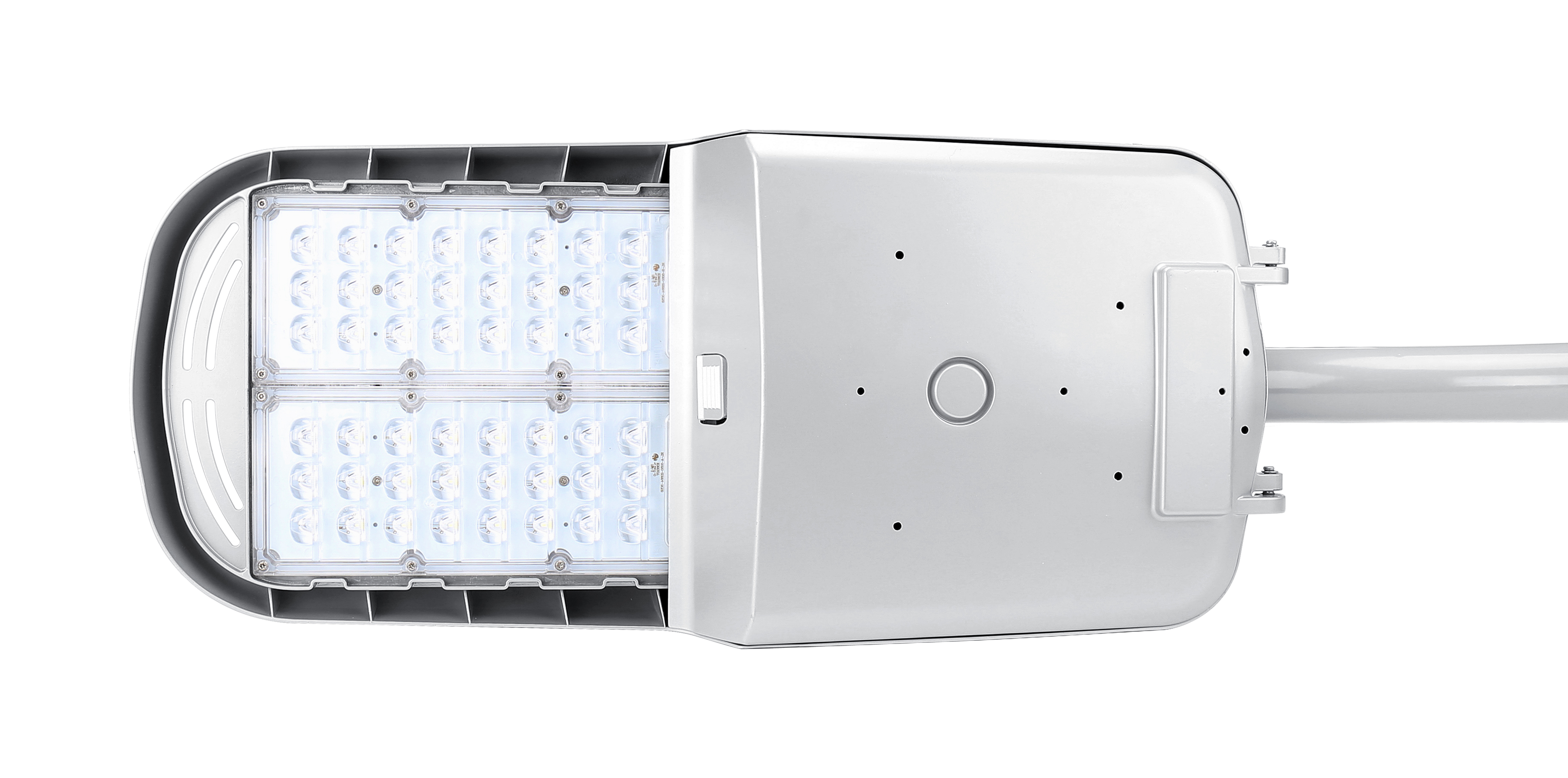

Abbey-II silver roadway luminaire with 7-pin photocell receptacle visible — illustrates the WATTSELECT-equipped Abbey-II driver compartment that ships with 4 field-selectable wattage settings per housing class

— Hero Highlight

4-Step WATTSELECT.

Abbey-II ships with a 4-position WATTSELECT switch on every housing — LRDW100 (40/60/80/100W), LRDW200 (80/120/160/200W), LRDW300 (120/180/240/300W). Tune the lumen package to the pole height and IES target without changing the SKU on the truck.

Efficacy

182 lm/W Peak Efficacy.

Top-of-class lumen-per-watt on the LRDW200-A2 at the 80W cell — 14,560 lm at 80W. Beats category-leading area light typical 130-145 lm/W and premium-tier competitor's 158 lm/W on the same Type-III distribution head-to-head.

Macro of the Abbey die-cast aluminum heat-sink fins with water beading off a salt-spray test rig — coastal-grade thermalⒶRMOR construction with wetⒶGUARD IP66 sealing

Durability

Coastal-Grade Build.

thermalⒶRMOR die-cast aluminum housing dissipates 300W-class loads passively. wetⒶGUARD IP66 sealing on the optical chamber. ANSI C136.31 3G vibration rating. -40°F to +122°F operating range. Coastal powder coat finish.

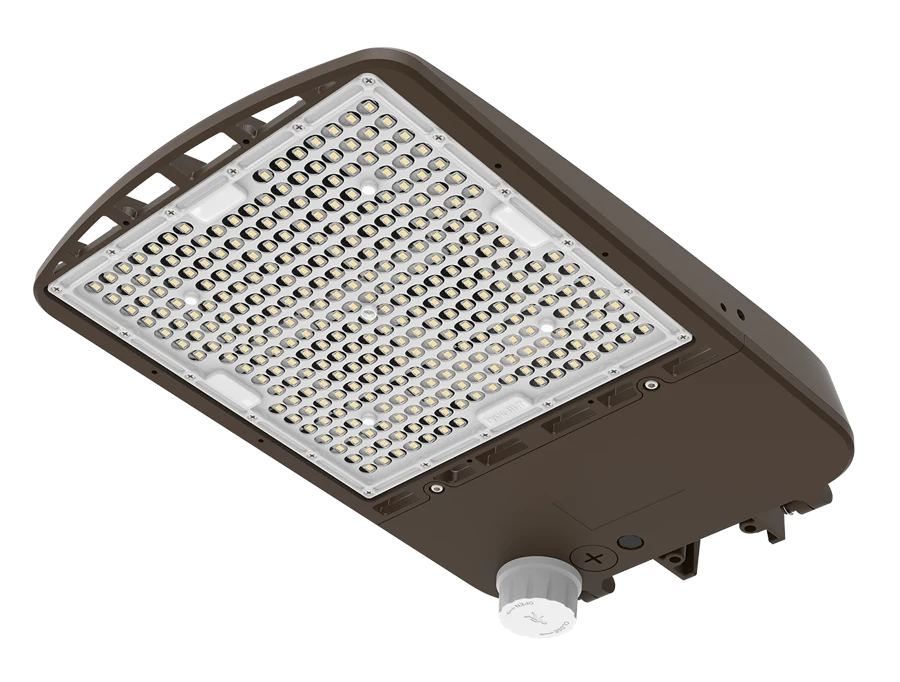

Field-installable PIR motion sensor mounted under the Abbey LED face — California state outline overlay with Title 24 Part 6 §140.7 callout

Compliance

Title 24 §140.7 Ready.

Field-installable PIR motion sensor satisfies California Title 24 Part 6 §140.7 Outdoor Lighting Controls. Bi-level dim-on-no-occupancy with adjustable cut-off and hold time. Pairs with the 3-pin or 7-pin photocell for full dusk-to-dawn astronomical scheduling.

Compliance

TAA + ANSI C136.10.

TAA Compliant build for federal, state, and municipal procurement. Vendor-neutral 3-pin (ANSI C136.10) or 7-pin twist-lock photocontrol receptacle accepts any compatible photocell or NEMA-DIM controller. DLC Listed; California JA8 ready. 10-year limited warranty.

Adaptive Controls

Photocell-led. PIR-ready. 0-10V dimmable.

Abbey ships with a vendor-neutral 3-pin (ANSI C136.10) twist-lock photocell receptacle on every housing. Add a field-installable PIR sensor for California Title 24 §140.7 occupancy compliance. Drive bi-level scenes with a 0-10V class-2 input — no gateway, no commissioning, no app required.

Photocell-Ready.

3-pin (ANSI C136.10) twist-lock receptacle on the housing top — standard on every Abbey-I and Abbey-II SKU. Optional 7-pin (ANSI C136.41) for NEMA-DIM controllers. Pair with any compatible photocontrol — ALG, category-leading, Lumewave, Echelon — vendor-neutral by design.

3-pin (ANSI C136.10) — standard
7-pin (ANSI C136.41) — optional MTO
Twist-lock retention · IP66 sealed

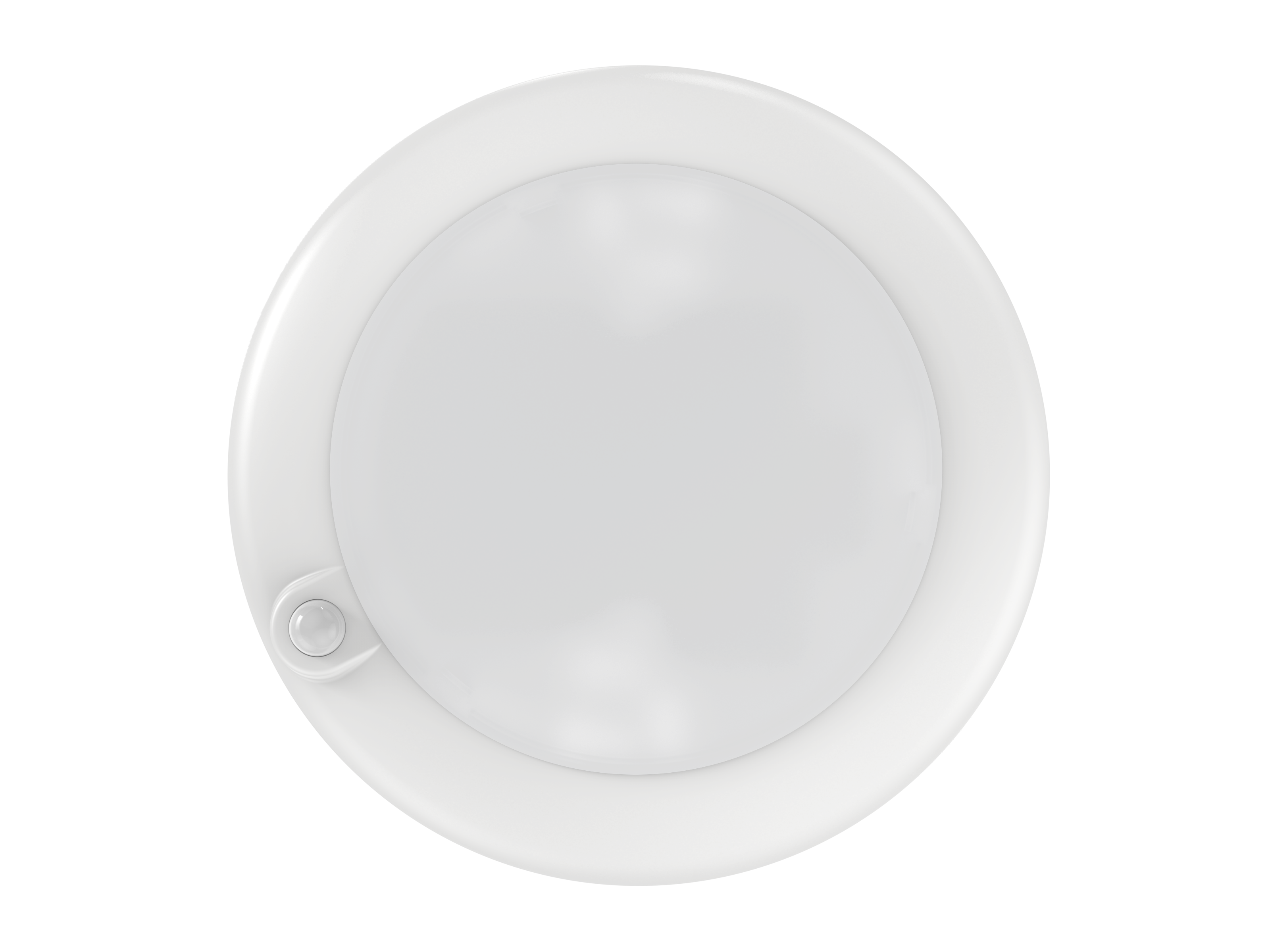

PIR Motion Sensor.

Field-installable bi-level PIR — full output on occupancy, dimmed standby on vacancy. Adjustable cut-off and hold time tune the schedule to roadway, pathway, or pedestrian use cases. Mounts to the housing underside and ships ready to wire.

Title 24 §140.7 compliant
ASHRAE 90.1-2016 occupancy reduction
8-12 ft mounting height · 360° detect

0-10V Class-2 Dimming.

Driver supports smooth 10%-100% dimming on a 0-10V class-2 control input. Source-or-sink compatible. Pair with any compliant relay panel, networked controller, wallbox dimmer, or DALI-to-0-10V gateway. No wireless mesh required.

10%-100% dim range · flicker-free
Source-or-sink class-2 input
Compatible with any 0-10V controller

No mesh, no gateway, no commissioning app. Abbey's controls surface is intentionally minimal — the photocell, the sensor, and the dimming line are the same tools your installer already carries on the truck.

Photometric Distribution

Beam shape, straight from the IES file.

Type-III roadway distribution rendered directly from the IESNA LM-79 test reports. Peak candela, total lumens, and BUG rating update as you switch housing class, CCT, and input voltage below — eight tested cells across the LRDW100 and LRDW150 platforms.

Housing Class

Color Temperature

Input Voltage

Photometric distribution — IESNA semi-circle polar plot, Type-III roadway distribution

Peak Candela

6,247 cd

Total Lumens

9,759 lm

Input Watts

71.8 W

Efficacy

136 lm/W

Distribution / BUG Rating

Type III B2-U0-G2

Forward-throw roadway distribution. Type-III standard across every active LRDW100 and LRDW150 SKU. BUG rating is typical for Type-III at this housing class — exact values vary per IES.

Test Source

IESNA LM-63-2002 · NTCLR test 2022-07-09
LRDW100-30-U3S_IESNA2002.IES

Download IES bundle (8 files, ZIP)

Engineering · Anatomy

Built once. Wired once. Maintained never.

Seven engineering details that make Abbey a one-and-done install — twist-lock photocell ready on every housing, IP66 driver compartment, ANSI C136.31 3G mast-arm with M10 set screws, and field- installable bird-guard for utility-corridor sites.

Same housing platform across LRDW100 (100W class) and LRDW150 (150W class). Abbey-II adds a 4-step WATTSELECT switch behind the access door — same external profile, same maintenance touchpoints.

Build Your Model

Configure Your Abbey

Every option below maps to the LRDW Abbey order code. Selections build the SKU live — no checkout, no surprises. Required fields marked with *. Greyed-out chips are not selectable for the current variant. MTO chips (amber stripe) stay selectable — the stripe communicates lead time, not unavailability. See the legend in the Optional column for ★ / QS / MTO meanings.

0 of 6 required selected

Required

6 fields · all must be set

Variant*—

Housing Class*—

CCT*—

Input Voltage*—

Distribution*—

Finish*—

RAL Classic Number RAL Enter a 4-digit RAL Classic code (e.g. 8019 · Grey Brown). ✓ Valid · — Not a valid RAL Classic code. See ral-farben.de for the official list.

Optional

1 add-ons · pick any combination

TAA Compliance—

★Factory-default ship configuration

QuickShip · 3-5 day lead

Made-to-Order · 4-6 week lead

Estimates · not guarantees · subject to availability · confirm before committing.

Live Preview Abbey preview — silver finish, front-3/4 angle showing photocell receptacle and Type-III LED face

Resolved SKU

LRDW[100|150|200|300]-[CCT]-[V][3S]-[A2]

— deriving ship tier —

Max Lumens

—

Efficacy

—

CCT

—

Input Voltage

—

Distribution

Type III

Peak Intensity

—

Finish

Silver

Compliance

DLC Listed · IP66 · 7-yr warranty

Configuration incomplete. Resolve all 6 required fields to unlock pricing & submittal generation.

Pricing & Availability Generate Submittal PDF Request a Layout

cityⒶRCH Outdoor Family

Pedestrian to roadway, all in one line.

Abbey is the LRDW roadway anchor of the cityⒶRCH outdoor family. Pair it with cityⒶRCH post-tops for the sidewalks and bollards for the walkways — same controls vocabulary, same photocell receptacle, same coastal-grade build, all spec'd from one factory.

CITYRCH · BOLLARD

cityⒶRCH · Pathfinder PRO

Pathfinder

Pedestrian-walkway and parking-perimeter LCNP bollard. Pair with Abbey at the curb to step the lighting plane down from arterial to pedestrian scale.

Up to 2,200 lm · IP66 · 2-housing class

View product →

CITYRCH · ROADWAY You Are Here LRDW Abbey — silver cobra-head roadway luminaire, front-3/4 angle showing photocell and Type-III LED face

cityⒶRCH · Abbey PRO

Abbey

Commercial-grade LED roadway for arterial roads, collectors, parking-lot edges, and utility corridors. The product on this page.

9,759-29,000 lm · 100W / 150W / 200W / 300W class · Type III

Currently viewing

CITYRCH · POST-TOP

cityⒶRCH · Symmetry PRO+

Symmetry

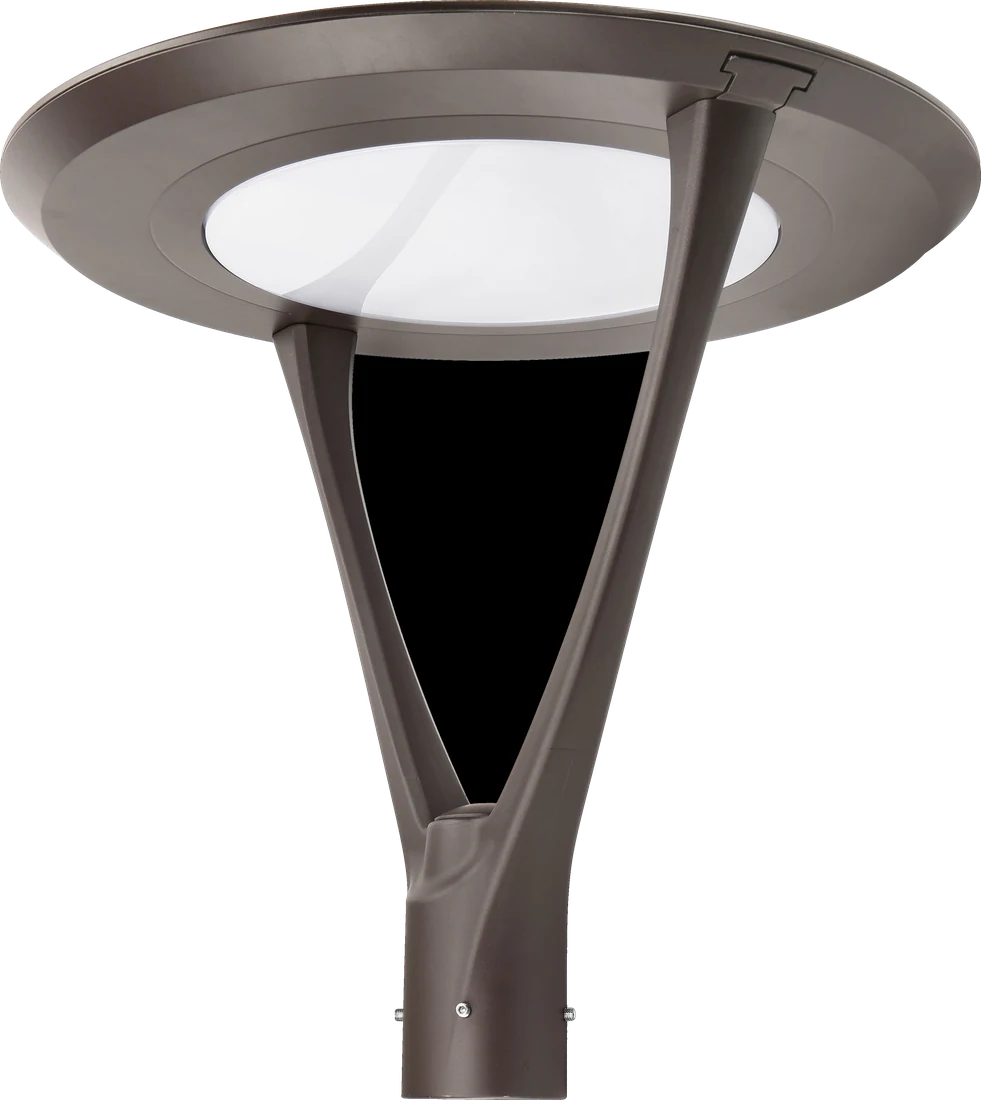

Pedestrian-scale LPTP post-top for plazas, walkways, and campus paths bordering the roadway. Step the lighting plane down from Abbey's overhead reach to human scale.

Up to 16,000 lm · 90W / 130W / 160W class · NEMA II/III/V

View product →

Round Out the Project

For the complete corridor.

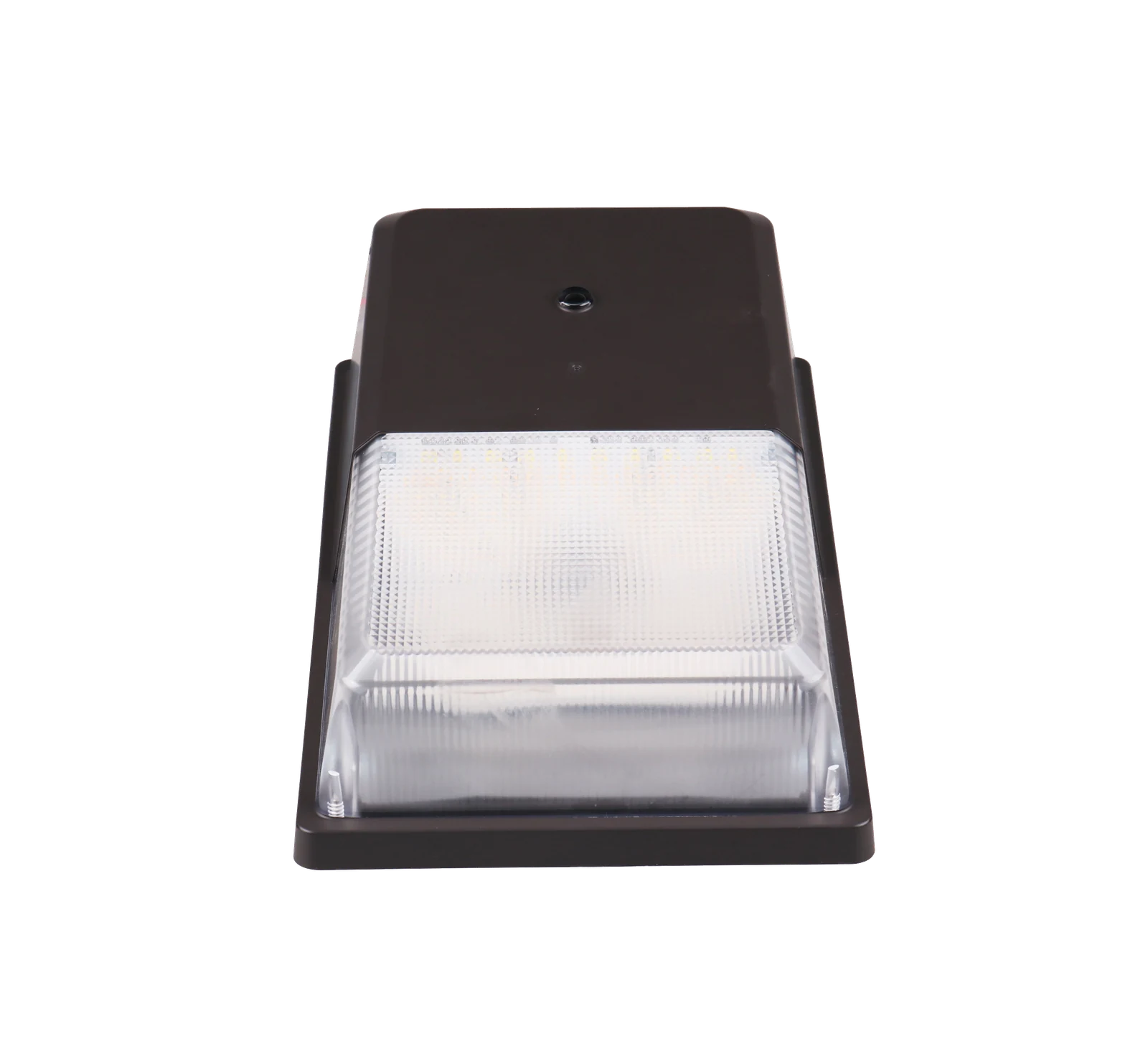

Abbey handles the road. These cross-line fixtures handle everything else around the install — pedestrian-scale lighting, controls, surge protection, and area / wall-pack coverage. Same factory, same warranty, same controls vocabulary.

CITYRCH · CANOPY

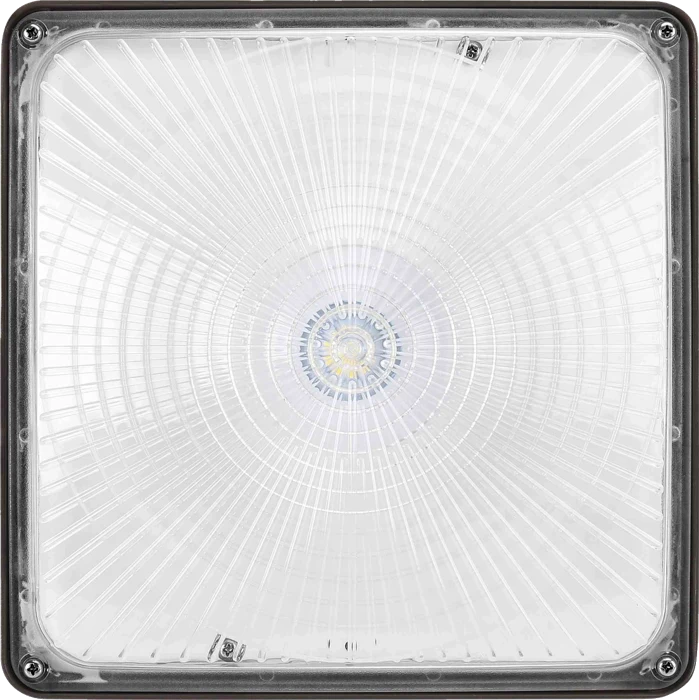

Canopy · LSBX

Heritage

Low-profile canopy luminaire for the parking deck above the road or the gas-station forecourt at the next exit. Same coastal build, same photocell receptacle.

Up to 16,000 lm · 2-housing × 3-W × 3-CCT · IP65

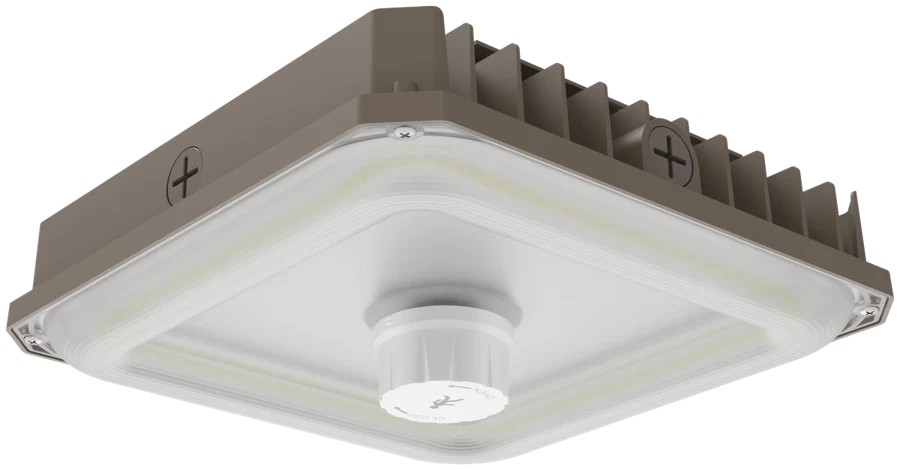

Parking-deck and garage luminaire for the structure adjacent to the Abbey-lit roadway. Tight wide-area distribution, IP65 ceiling-mount.

Up to 18,000 lm · 0-10V dim · IK10 vandal-rated

View product →

CONSTNT · SURGE

constNT · 10 / 20 kA SPD

Surge Protection

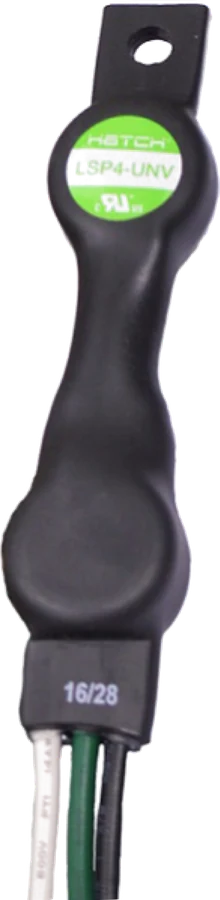

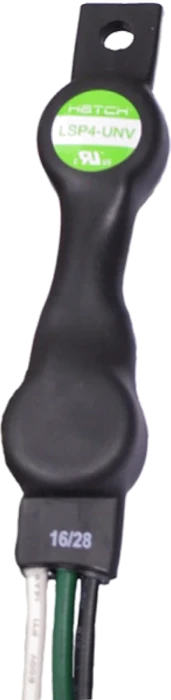

Drop-in 10 kA or 20 kA surge protectors for utility-corridor and lightning-prone sites. Direct upgrade to the Abbey driver compartment — see Section 8.

UL 1449 4th Ed. · IEEE C62.41-2002 · L-N / L-G / N-G

View product →

Specifier Support

Direct line to your regional rep.

Five US warehouses ship Abbey in 3-5 days. Layout requests come back inside 48 hours. Quotes, sample requests, and rebate matches reply same business day. No portal-as-the-only-channel: you get a person.

US Warehouses

48 hr

Layout SLA

Same-Day

Quote Reply

Find a Rep Contact Sales

Great Rebates

Stack the rebates.

Abbey is DLC Listed (Standard) — qualifying for the broadest pool of utility rebate programs across roadway and parking-lot LED retrofits. We'll match your project to active programs in your ZIP and pull the paperwork.

2,400+

Active Programs

15-40%

Project Offset

DLC Listed

Standard Tier

Open Rebate Center

Need a quote, layout, sample, or rebate match? We respond same business day.

Contact Sales Request Layout
