LBOL · Sentry PRO

Twelve looks. One bollard.

Sentry replaces a stockroom of single-spec bollards with one SKU. Four wattage settings, three color temperatures, four optic styles, and three architectural crown profiles — specify it once on the bid, dial it in on-site if the architect changes their mind. Ships TAA-compliant standard. Adds emergency battery for code-required egress. 7-year warranty.

Wattage: 10/14/19/24W · 10/16/21/26W Lumens: 1,150–3,200 lm Efficacy: Up to 145 lm/W

Ideal Applications

Walkways

HOA

Bike Lanes

Patios

4-WATTSELECT

3-CCTSELECT

EM-READY

SURGEⒶRMOR

Sentry LBOL bollard, Dark Bronze finish — full elevation showing Dome Top crown, frosted optic aperture, and cylindrical shaft

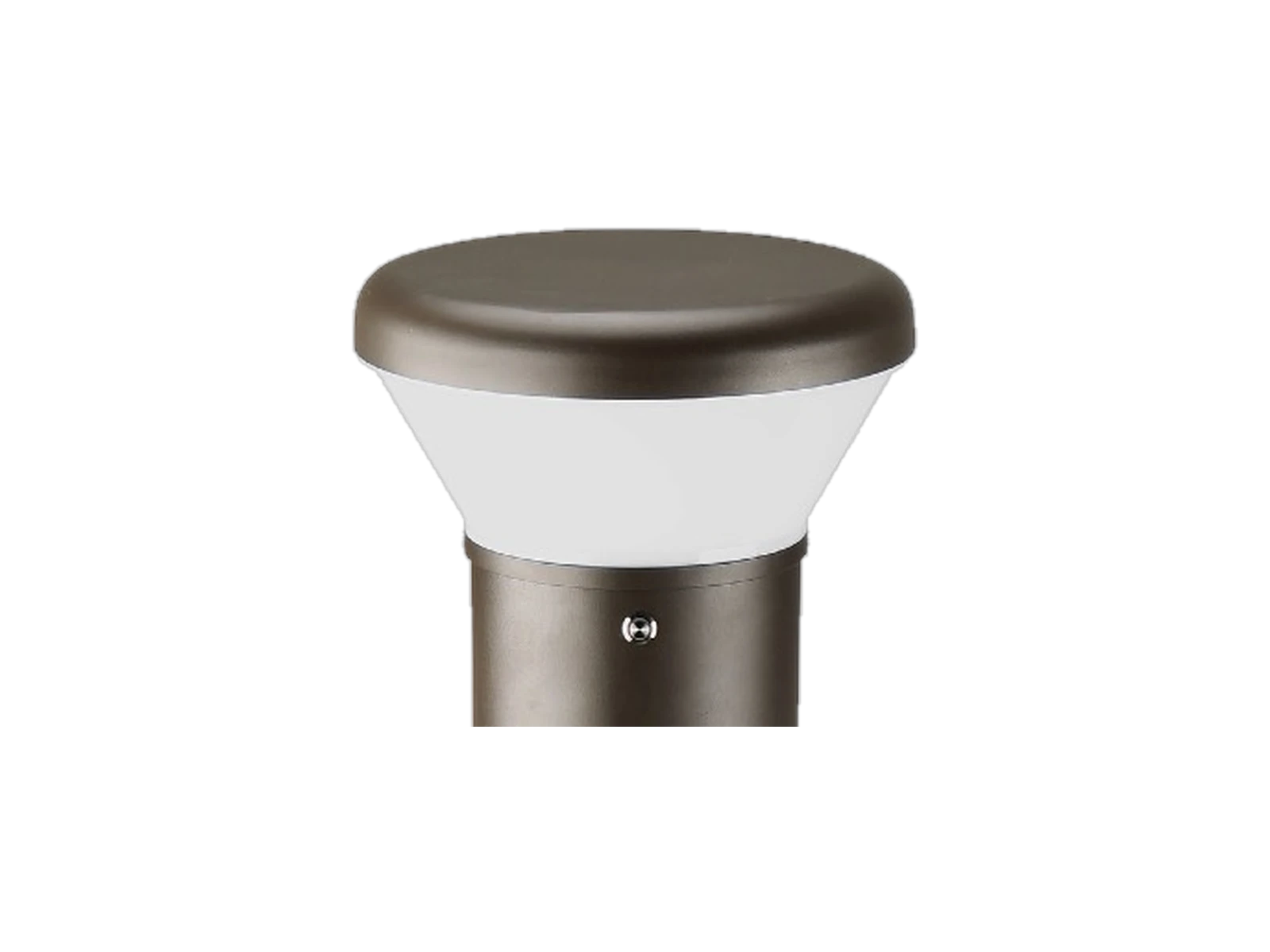

Sentry LBOL bollard — crown close-up showing the Dome Top cap, frosted atomization lens, and 360-degree optical aperture

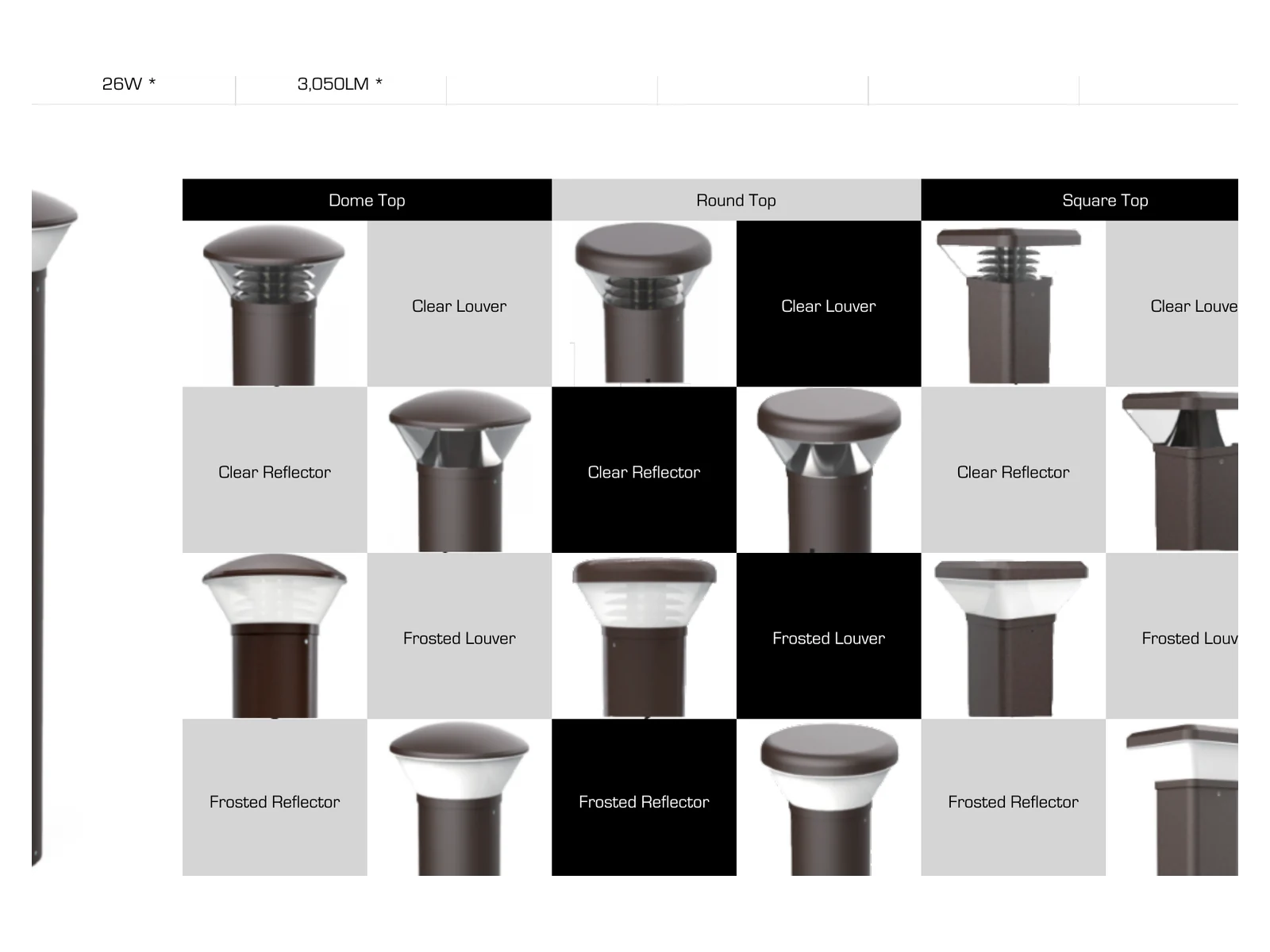

Sentry crown × optic matrix — 12 architectural combinations: Dome Top, Round Top, Square Top × Clear Louver, Clear Reflector, Frosted Louver, Frosted Reflector

Slide 04 / 04

[ AI-generated · awaiting asset ]

Pedestrian walkway at dusk · row of Sentry bollards · 360° pools on path

DLC Listed

UL Listed

RoHS

FCC

Wet Location

Highlights & Features

One bollard family. Twelve aesthetic combinations. Field-tunable in under 30 seconds.

Seven highlights collapsing a stockroom of single-spec bollards into one SKU — 12-combo crown × optic matrix, 4-WATTSELECT × 3-CCTSELECT field-tunability, factory TAA, and optional 90-min emergency battery.

3 by 4 grid of all twelve Sentry crown × optic combinations: Dome Top / Round Top / Square Top × Clear Louver / Clear Reflector / Frosted Louver / Frosted Reflector — twelve cells in one composite hero image

— Hero Highlight

12 Architectural Combinations.

Three crown profiles (Dome · Round · Square) × four optic styles (Clear Louver · Clear Reflector · Frosted Louver · Frosted Reflector). One SKU family covers every architectural aesthetic from corporate campus to restaurant patio. Spec it once, dial it in on-site. Uncontested in the surveyed peer set — no other commercial bollard ships this matrix.

Macro of the Sentry dip-switch panel inside the access door — 4-position WATT switch + 3-position CCT switch, gloved hand setting both

Field-Adjustable

4-WATTselect × 3-CCTselect.

One SKU, twelve in-the-box settings. Wattage (10/16/21/26W) and color temperature (3000K/4000K/5000K) both field-adjustable on a dual dip-switch in under 30 seconds. No SKU swap if the spec changes mid-project — change the dip-switch on-site and re-energize.

Cutaway of the Sentry shaft showing the integrated emergency battery driver compartment with red EM lightning bolt indicator

Code-Required Egress

EM-Ready · 90 Minutes.

Optional integrated emergency battery delivers 8W / 900 lm for 90 minutes when mains drop. No external EM driver, no separate junction box, no second SKU to stock — order the EM-equipped variant for life-safety paths, ADA routes, parking-lot corners, and any AHJ-required egress run.

TAA Compliant badge with Sentry bollard silhouette and a US flag stripe pattern in the background — federal procurement ready

Federal-Ready

TAA Compliant · Standard.

TAA compliance ships standard on every Sentry — no opt-in, no surcharge, no engineering hold. Critical for federal RFQs, GSA schedule, military base contracts, and any project covered by the Trade Agreements Act. Most architectural-bollard peers offer TAA only on request.

Macro shot of water beading on the powder-coat dark bronze finish of a Sentry bollard in the rain — IP65 wet-location seal at the crown-shaft joint

Durability

wetⒶGUARD · IP65 + 6kV Surge.

Heavy-duty die-cast aluminum housing with waterproof powder-coat finish. IP65-rated against dust + moisture. Dual-mode 6kV surge protection on both L/N-PE and L-N circuits standard. -4°F to 122°F operating range. Anti-UV polycarbonate lens won't yellow.

A 7-year warranty seal alongside a 75,000-hour life rating chart — Sentry warranty card centered on the image

Two Years Above Industry

7-Year · 75,000-Hour Warranty.

Industry-standard architectural bollard warranty is 5 years. Sentry's 7 years is two extra years on every fixture you spec — a procurement-team line item that pays back across a 50-fixture campus. Anchored to 75,000 hours of L70 operation under standard ambient conditions.

Sentry installation kit laid out flat: 4 anchor bolts + 4 M8 stainless nuts + 4 spring washers + 4 round screw washers + bollard base flange — everything in one box

In the Box

quickⒶDAPT Install Kit.

Every Sentry ships with the full install kit: bollard base flange, 4× anchor bolts, 4× M8-SS nuts, 4× spring washers, 4× round screw washers. No separate hardware order, no on-site improvisation, no “wait for the kit to arrive” truck roll. Pour the pier, drop the bolts, set the bollard.

constⒶNT-Ready

Emergency-Ready when the mains drop.

The Sentry's optional integrated emergency battery delivers 8W / 900 lm for 90 minutes of full pedestrian-area illumination when utility power fails — code-required egress for ADA routes, parking-lot corners, and any AHJ-required life-safety run. No external EM driver, no separate junction box, no second SKU to stock. The EM kit lives inside the same shaft as the standard driver, with a thermally isolated compartment to keep battery cycling clean.

Factory-installed integrated battery + emergency driver. Switches over instantly when mains drop — no relay click, no perceptible delay. 90 minutes at 8W / 900 lm output (sufficient illuminance for code-required pedestrian egress at typical bollard spacing). Self-test capability per UL 924. Operating ambient for EM mode: 50°F to 104°F.

EM spec in Datasheet pg 1 →

Photometric Distribution

Beam shape, generated from the IES file.

Real luminous distribution at the selected model and optic. Each curve is rendered directly from the certified IES test report — peak candela, beam profile, and total lumen output update with the selection below.

Wattage Class

CCT

Sentry LBOL26 photometric distribution — Type V full cutoff polar plot at 26W max setting, 5000K, generated from real IES test data

Peak Candela

~620 cd

Total Lumens (tested)

3,090 lm

Distribution / Dark-Sky Rating

Type V · 360° Full Cutoff Zero Uplight

Type V is independent of wattage step within a class — the 21W / 16W / 10W settings of LBOL26 share this same polar shape, with luminous output scaling linearly. Coverage gap: 3000K IES file pending from ALG. LBOL24 high-efficacy variant (150 lm/W · 3 crown styles) IES set also pending if production is confirmed.

Test Lab Source

IESNA LM-63-2002
LBOL26-50-UD.IES · EVERFINE GO-R5000_V2 · 2019-07-02

Download IES bundle

Engineering · Anatomy

Crown the path. Flip the dip-switches. Set it on the bolts.

Seven engineering details that make Sentry the spec-grade default for outdoor pedestrian lighting — the dual dip-switch panel that turns one SKU into nine settings, the integrated emergency battery for code-required egress, the install kit that ships in the box, and the IP65 wet-location seal that stays sealed through the freeze-thaw cycle.

Datasheet pg 2 anatomy figure rendered as an annotated SVG — every callout matches a numbered detail in the specification. The 4-WATT × 3-CCT dual dip-switch is what turns one SKU into twelve in-the-box settings; the integrated EM driver is what makes Sentry the code-required egress default at the cityⒶRCH PRO tier.

Build Your Model

Configure Your Sentry

Every option below maps to the LBOL Sentry order code. Selections build the SKU live — no checkout, no surprises. Required fields marked with *. Greyed-out options are not selectable with your current configuration. See the legend in the Optional column for ★ / QS / MTO meanings.

0 of 4 required selected

Required

4 fields · all must be set

Wattage Class*—

Finish*—

Pole Type*—

Crown × Optic*—

Optional

1 add-ons · pick any combination

Emergency Battery—

★Factory-default ship configuration

QuickShip · 3-5 day lead

Made-to-Order · 4-6 week lead

Estimates · not guarantees · subject to availability · confirm before committing.

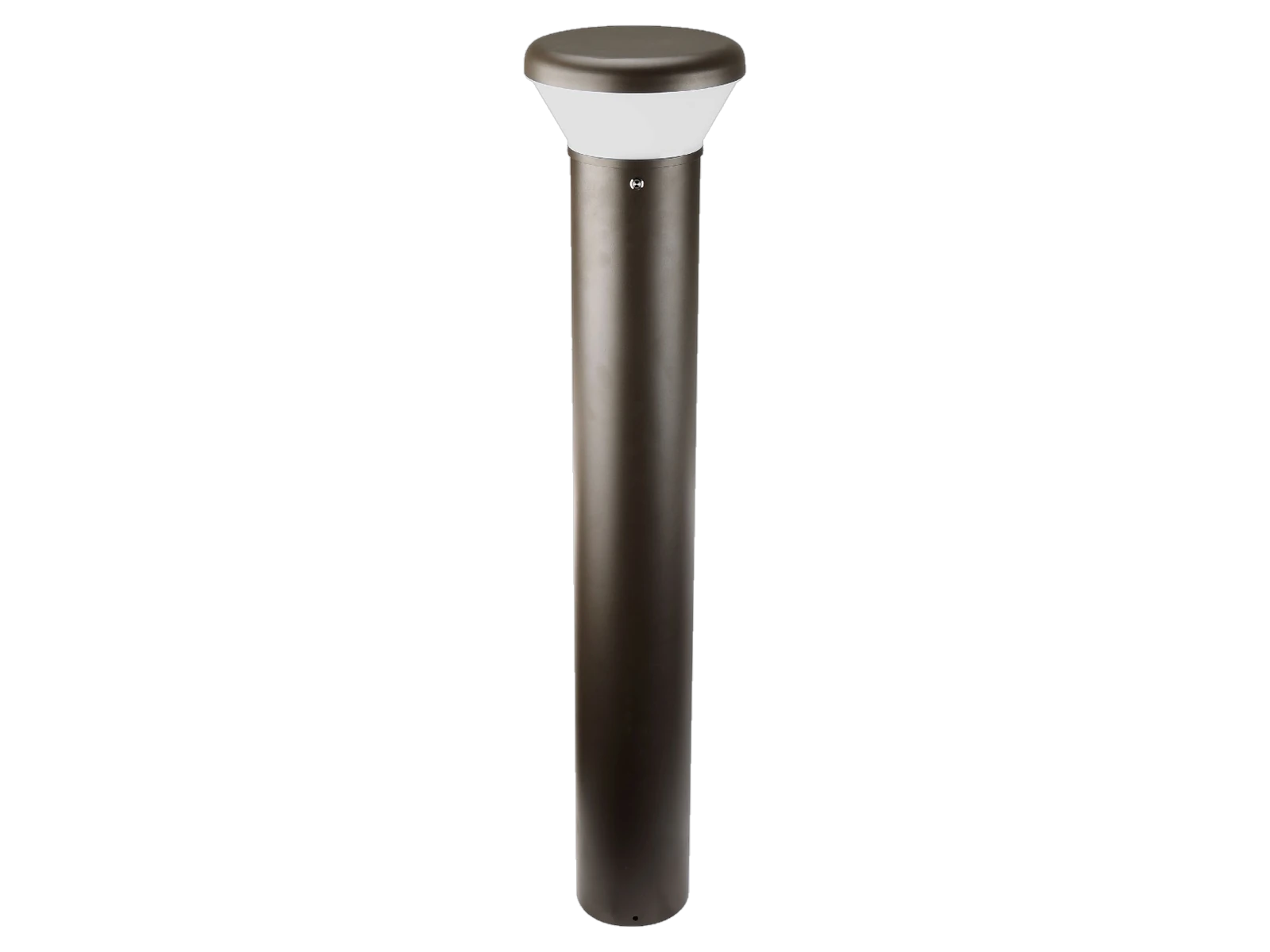

Live Preview Sentry bollard preview — Dark Bronze finish, full elevation showing crown + shaft + anchor flange

Resolved SKU

LBOL-[WC]-3CS-27V-S1/[FIN]/[POLE]/[CROWN][/EM]

— deriving ship tier —

Max Lumens

—

Efficacy

—

CCT

—

Voltage

—

Optic · Beam

—

Peak Intensity

—

Finish

—

Compliance

UL · DLC Listed · RoHS · FCC · Wet Loc · IP65

Configuration incomplete. Resolve all 5 required fields to unlock pricing & submittal generation.

Pricing & Availability Generate Submittal PDF Request a Layout

LBOL · Sentry PRO

Twelve looks. One bollard.

Model Specifications

Dimensions
