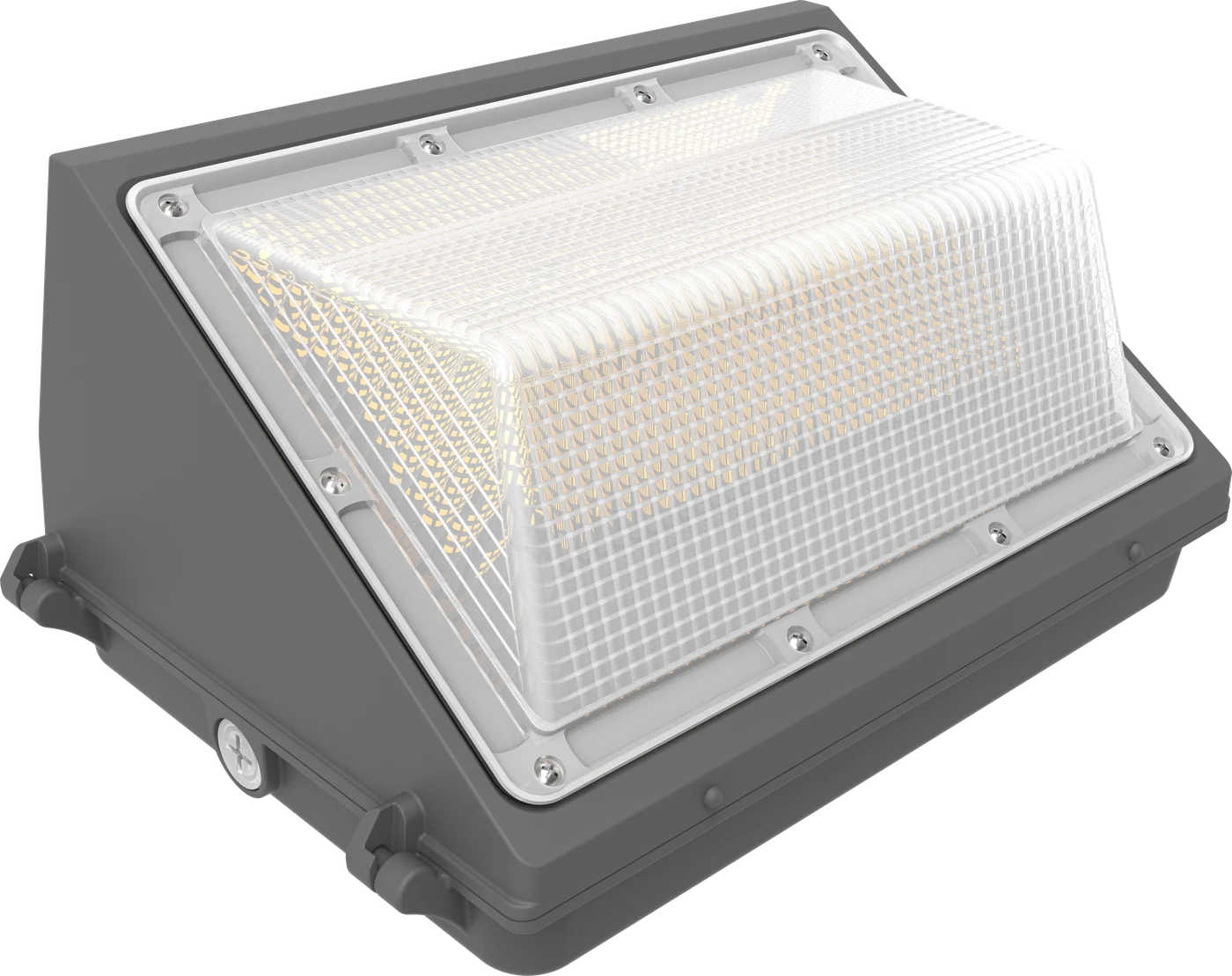

FIELD-SET
3-WATTselect set before install · 3-CCTselect 3500 / 4000 / 5000K · Photocell with ON/OFF switch, every number · constⒶNT /EM08 · Up to 17,290 lm measured · IP65
ARCHIPELAGO
Lighting Group
Electrical & Optical
| Input voltage | 120–277V, 50/60 Hz |
| Dimming | 0–10V |
| Power factor / THD | PF >0.9 · THD ≤20 % |
| Surge protection | 6 kV, on board |
| CRI | 80 |
| Controls | Photocell with ON/OFF switch, built in (/PS) |
| Emergency | 8 W emergency driver, factory-installed on /EM08 |
| CCT and WATTselect | Set by switch on the fixture · not encoded in the catalog number |
Construction & Environment
| Housing | Two-piece die-cast aluminum · bronze powder coat · silicone-ring seal · built-in level |
| Lens | Clear prismatic glass, UV-stabilized |
| Operating ambient | −4 °F to 113 °F |
| Location | cULus Listed · wet location · IP65 |
| Mounting | Wall surface over a standard J-box |
| Warranty | 5-year / 50,000-hour limited |
cULusWet LocationIP65FCC
ARCHIPELAGO
Lighting Group
Bill of materials — this build
| # | Item | Selection | Catalog number | On the order |
|---|
Housing and the emergency build are the catalog number; the photocell is in every number. Watts and color are set on the fixture and are not in it. The mounting plate is its own order line.
Every fixture catalog number
Accessories — ordered separately
ARCHIPELAGO
Lighting Group
04 · Photometrics & Dimensions
Beam angle (50 % of peak)
—
Dimensions
Only LWPF3W40-3S1-UD/PS carries a DLC listing (QPL S-5NWK0T). Rebate Center shows what your utility pays and the forms it needs, by ZIP.
Full IES library:
