Configured SKU

LFMT1220-N5

Generated

—

Browser will open the print dialog · choose Save as PDF as the destination · Letter portrait · Margins: Default · Background graphics: ON

ARCHIPELAGO

Lighting Group · LFMT

Catalog Number

LFMT1220-N5

Click to relabel for project

Project

Type

Catalog #

LFMT1220-N5

Prepared By

Notes

Date

LFMT · RingMaster

LED Flushmount · multi-fⒶMILY PRO · decorative ring, black or brushed nickel · 10, 12, 14 and 16 in · 15–26 W

PRO

Size

12IN

Input watts

20W

Ring

Nickel

CCT

Selectable

Listing

ETL

Location

Damp

Selectable

CCT 2700K / 3500K / 4000K / 5000K / 6500K · Decorative metal ring · Frosted diffuser · ETL, damp location

LFMT RingMaster is an LED flushmount in the multi-fⒶMILY collection, with a decorative metal ring in black or brushed nickel over a frosted diffuser. Confirm input voltage, dimming and output with your ALG rep before specifying.

Approved by

Date

archipelagolighting.com · LFMT · RingMaster submittal · Specifications subject to change without notice

Rev. 2026-10 · Page 1 of 4

ARCHIPELAGO

Lighting Group · LFMT

Catalog Number

LFMT1220-N5

Specifications

LFMT RingMaster · multi-fⒶMILY PRO · LED flushmount

Configured Selections (this submittal)
Size	—
Ring	—
Construction
Body	Decorative metal ring · frosted diffuser
Mounting	Flush to the ceiling
Location	Damp location
LED
CCT	Selectable: 2700K · 3500K · 4000K · 5000K · 6500K
Electrical
Input watts	10 in 15 W · 12 in 20 W · 14 in 22 W · 16 in 26 W
Voltage · dimming	Confirm with your ALG rep
Compliance
Listing	ETL, damp location

Spec Footnotes · ETL listed; damp location. Utility programs: archipelagolighting.com/support/rebate-center/

archipelagolighting.com · LFMT · RingMaster submittal · Specifications subject to change without notice

Rev. 2026-10 · Page 2 of 4

ARCHIPELAGO

Lighting Group · LFMT

Catalog Number

LFMT1220-N5

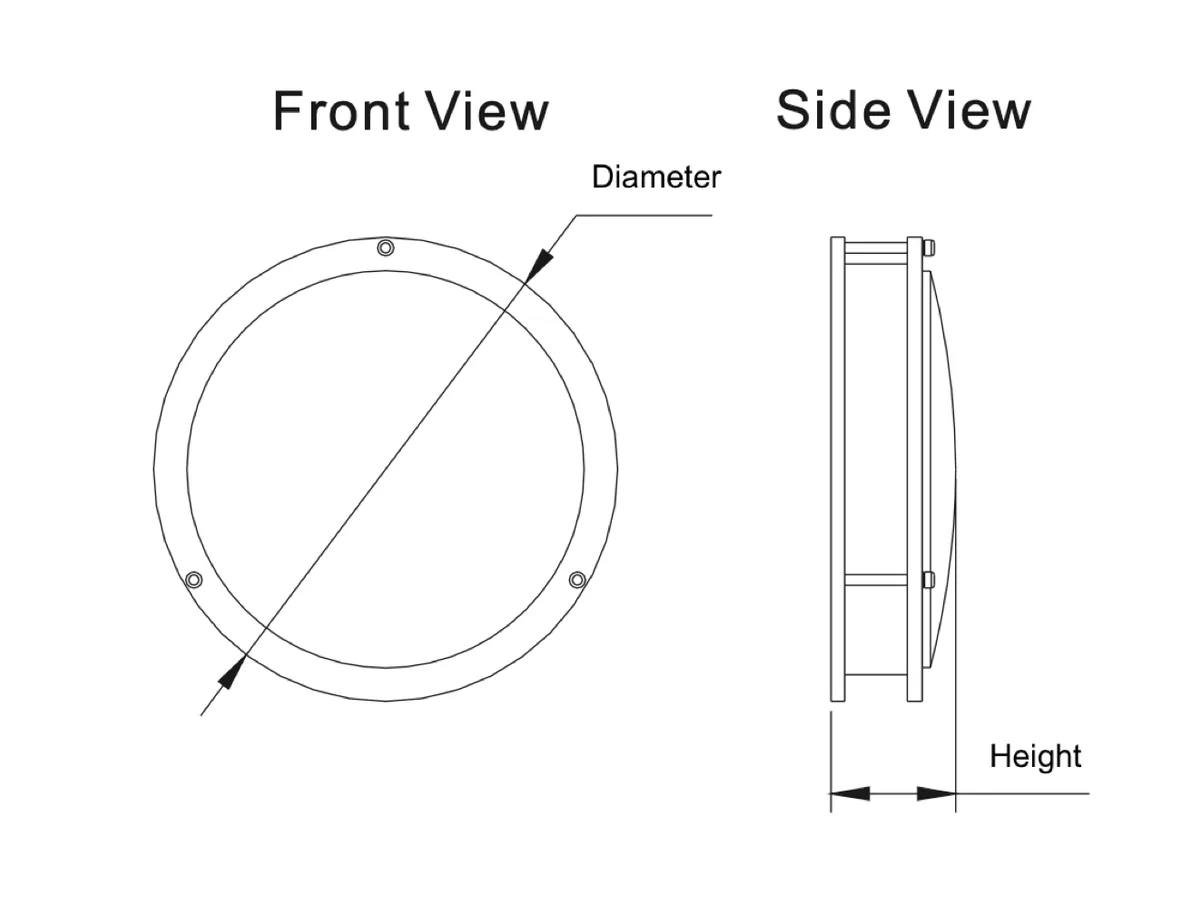

Dimensions & Mounting

—

Brushed nickel

Front and side

Dimensions (selected size)
Diameter	—

archipelagolighting.com · LFMT · RingMaster submittal · Specifications subject to change without notice

Rev. 2026-10 · Page 3 of 4

ARCHIPELAGO

Lighting Group · LFMT

Catalog Number

LFMT1220-N5

Ordering Information

4 sizes · black or brushed-nickel ring

Family · Size · Watts

LFMT1220

Ring · CCT

Segment	Codes
LFMT{N}{W}	1015 (10 in, 15 W) · 1220 (12 in, 20 W) · 1422 (14 in, 22 W) · 1626 (16 in, 26 W)
-B5 · -N5	Black or brushed-nickel ring · selectable CCT

archipelagolighting.com · LFMT · RingMaster submittal · Specifications subject to change without notice

Rev. 2026-10 · Page 4 of 4

ARCHIPELAGO

Lighting Group · LFMT

Catalog Number

LFMT1220-N5

Accessory Bill of Materials

0 line items

These are separate line items ordered alongside the RingMaster — they are not part of its catalog number. Order each line independently. This list holds only the options picked in the configurator on the product page.

Order Code	Category	Description

archipelagolighting.com · LFMT · RingMaster submittal · Specifications subject to change without notice

Rev. 2026-10 · Page 5 of 5
